Pro-Cut 3-Sided Builder's Work Opening (Siniat)
Verified by manufacturer 2 months ago
Siniat UDT52/B
Siniat UDT52/B

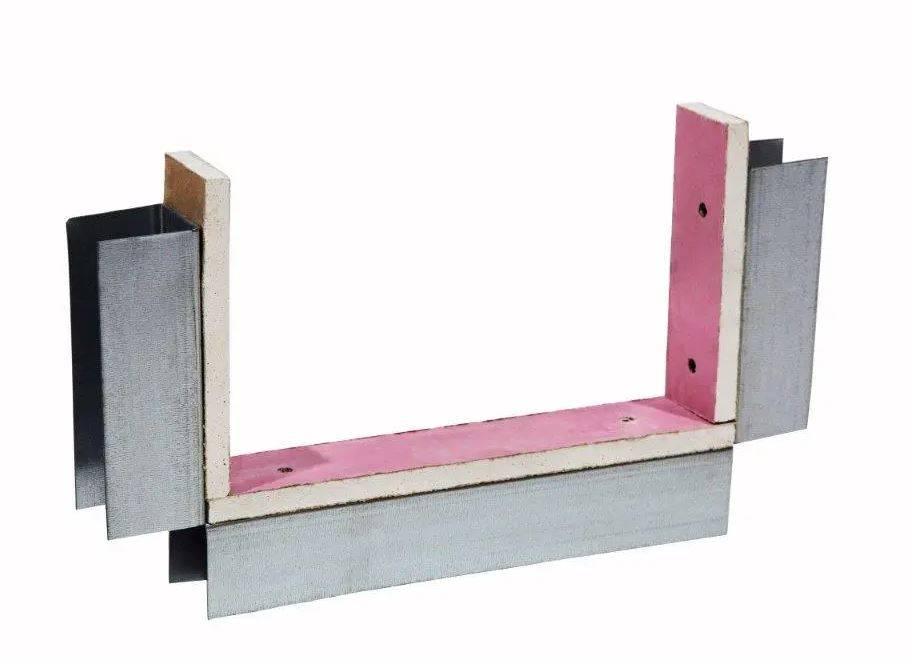

Three sided, flat-packed component designed to form an opening within Siniat single-frame metal stud partitions.
Application
- Designed to form an opening within Siniat single-frame metal stud partitions.
- All materials and fixings are installed off site in a quality-controlled environment and delivered safely to site.
- See project-specific Siniat detailing for specified partitioning systems for guidelines on site installation.
Description
Three sided flat-packed component designed to form an opening within Siniat single-frame metal stud partitions enabling penetration of services through the partition to reach adjoining spaces. Accommodates a range of bespoke opening sizes with allowance for building deflection to form a specified service opening flush to the underside of the soffit.
Fabricated in an offsite environment to maximize safety and ensure high levels of quality and compliance with associated regulatory requirements and manufacturer warranties. Complies with all thermal and acoustic requirements as a critical component of the extensive range of Siniat partitioning systems whilst providing high levels of protection against fire for periods of up to 120 minutes in standard applications.
Features and benefits:
- Full penetration design using third-party fire stopping material should also reference BS EN 1366-3 to properly assess penetration fire resistance properties in addition to any basic test data provided by Siniat to BS EN 1364-1.
- Metal sections all meet BS EN 14195:2005 requirements for metal framing components for gypsum board systems.
- Installation in accordance with Siniat recommendations using appropriate third-party BS EN 1366-3 compliant fire stopping material should achieve full fire rating performance for any specified Siniat partitioning system.
- FSI STOPSEAL® is Siniat-approved for third-party fire stopping with warranties available (see specific system guidance).
- Fire testing of full partitioning systems containing this product or equivalent conducted according to BS EN1364-1:1999.
- Siniat components are BRE Green Guide A/A+ rated and help collect sustainability code credits.
- GTEC metal channels are 100% recyclable provided they are properly separated from other construction components.
- Gypsum based components can be fully recycled provided they are not contaminated by non-gypsum materials.
General information
Color | Silver White |
Material | Metal Gypsum Plasterboard |
Shape | Other |
Length | Bespoke Guidance for specification option: As specified. |
Width | 52 mm 62 mm 72 mm 92 mm 148 mm |
Height | 50 mm 70 mm |
Warranty description | Other Guidance for specification option: Compliance with associated regulatory requirements and manufacturer warranties. |
Uniclass | |
CAWS | K10/30 Metal stud K10/125 Metal stud partition system |
Specification data - Gypsum board partition systems
Framing | Siniat UDT52/B.Manufacturer guidanceMetal Track Selections. |
Resilient layer | Not required.Resilient bar one side.Resilient bar two sides. |
Linings | 12.5 mm Standard Board one layer.Guidance for specification option:
15 mm Standard Board one layer.Guidance for specification option:
12.5 mm dB Board one layer.Guidance for specification option:
15 mm dB Board one layer.Guidance for specification option:
12.5 mm Fire Board one layer.Guidance for specification option:
15 mm Fire Board one layer.Guidance for specification option:
12.5 mm Moisture Board one layer.Guidance for specification option:
15 mm Moisture Board one layer.Guidance for specification option:
12.5 mm Megadeco one layer.Guidance for specification option:
15 mm Megadeco one layer.Guidance for specification option:
12.5 mm Standard Board two layers.Guidance for specification option:
15 mm Standard Board two layers.Guidance for specification option:
12.5 mm dB Board two layers.Guidance for specification option:
15 mm dB Board two layers.Guidance for specification option:
12.5 mm Fire Board two layers.Guidance for specification option:
15 mm Fire Board two layers.Guidance for specification option:
12.5 mm Moisture Board two layers.Guidance for specification option:
15 mm Moisture Board two layers.Guidance for specification option:
12.5 mm Megadeco two layers.Guidance for specification option:
15 mm Megadeco two layers.Guidance for specification option:
|
Fasteners | Siniat compliant fixings.Guidance for specification option: Suitable fixings are always selected by Drywall Pro-Cut to ensure compliance with Siniat performance criteria. |
Joint treatment | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Finish | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
System accessories | Not required.GTEC Intumescent Acoustic Sealant.Guidance for specification option: Applied between boards and metal track as required. |
Length | As specified. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceMetal Track. |
Width | 52 mm. Manufacturer guidanceMetal Track. |
FlangeDepth | 50 mm. Manufacturer guidanceMetal Track. |
Gauge | 0.60 mm. Manufacturer guidanceMetal Track. Gauge thickness. |
Unit weight | 0.82 kg/Lm. Manufacturer guidanceMetal Track. Metal unit weight. |
Deflection | 11—20 mm. 21—25 mm. 26—32 mm. 33—40 mm. 41—45 mm. |
Stud centres | 400 mm. 600 mm. 1200 mm. |
Form | Adjustable. Modular. |
Opening size | Guidance for specification option: Consult manufacturer and insert requirements. Adjustable:
Modular:
|
Sustainability data
Recyclability | Guidance for specification option:
|
