Verified by manufacturer 2 months ago

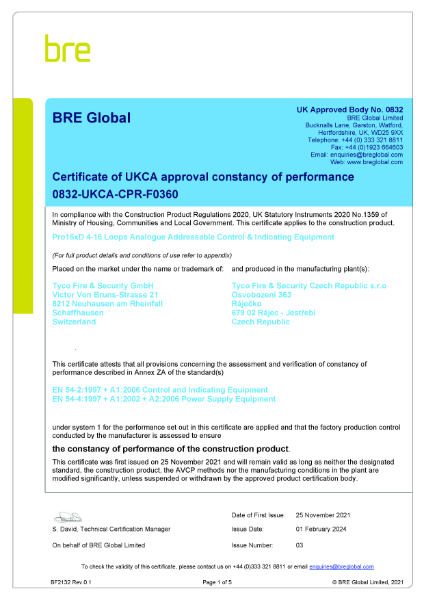

Certificate of constancy of performance
Certificate type
Fire alarm panel, expandable from four to 16 loops and can support a total of 2000 addresses.
Particularly suitable for mid-size facilities.

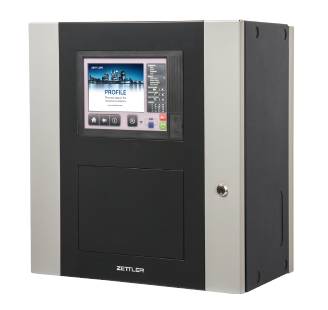

PROFILE Flexible is a highly featured digital addressable fire alarm system with an advanced TFT colour touch-screen user interface that is ergonomically engineered specifically for fire alarm control. Operation of the touch screen is possible with or without gloves and provides easy-to-use, intuitive user controls including keyless
log-on using RFID cards.
The Pro16xDBB is expandable from four to 16 loops and can support 2000 addresses in total which makes it particularly suitable for mid size facilities. Ample loop power is available to meet the increasing demand for visual alarms in addition to traditional audible alarms. The black box panel provides an economical solution as it comes without a graphical user interface (GUI), therefore a minimum display.
The built-in power supply provides 5.0 A of usable power and the panel can accommodate 38 Ah batteries. An optional power housing, matching the design of the panel enclosure can accommodate additional 38 Ah batteries and second 5.0 A power supply. A second optional expansion housing can accommodate zonal displays and ancillary modules.
Any combination of up to 99 PROFILE panels can be networked together using copper or fibre-optic medium to provide seamless integration across the most complex facility.
Features and benefits:
Color | Grey Black |
Finish | Matt |
Material | Steel |
Shape | Rectangle |
Length | 263 mm Manufacturer guidanceDepth. |
Width | 438 mm |
Height | 480 mm 237 mm |
Warranty description | Three year |
Uniclass | |
CAWS | S92/420 Alarm devices S92/420 Alarm devices |
Standby power supply | |
Capacity | 230 V a.c., 50/60 Hz, 3.2 A (maximum). |
Main display | 8.4” TFT colour touch screen multilingual user interface. |
Zone indication | Not required.Individual LED status indicators, 40 zonal LEDs.Guidance for specification option: Optional 40 way PROFILE Zonal display (557.202.857 PZ4x). Individual LED status indicators, 80 zonal LEDs.Guidance for specification option: Optional 80 way PROFILE Zonal display (557.202.858 PZ8x). |
Installed capacity | Expandable from four to 16 loops, capable of supporting 2000 addresses (250 per loop).Guidance for specification option:
|
Printer | Output to separate printer.PROFILE Expansion housing with printer.Guidance for specification option: 557.202.864 PX-PR. |
Indications | Manufacturer guidanceConsult manufacturer and insert requirements. |
Controls | Point management and disable functions. |
Outputs | Output to fire alarm devices. |
Input device | Alphanumeric keypad. |
Features | Manual device address setup. |
Enclosure | |
Colour | Grey/ Black.Guidance for specification option:
|
Mounting | Surface. |
Operating temperature | -5°C to +40°C. |
Minimum storage temperature | -20°C to +70°C. |
RelativeHumidity | 95% RH, continuous (non-condensing). |
Dimensions | 480 x 438 x 263 mm (panel). |
Weight | 14 kg (panel). Manufacturer guidance(Excluding batteries). |
Integral accessories | PROFILE Flexible modular housing black-box panel. |
Ancillaries | Not required. PROFILE Battery box with 5A PSU - 557.202.854 PBB801. PROFILE PSU interface and battery charger slot card - 557.202.848 PCH800. PROFILE Network interface slot card - 557.202.844 PNI800. Fibre optic module (for use with PNI800) - 557.202.081 FOM800. |
Contains Red List materials | No |
Country of material origin | Czechia |
Country of product manufacture | Czechia |
Material | Steel |
Manufacturing plant location | |
Expected Life | Ten year |
