Procheck - Vapour control layer

Verified by manufacturer 28 days ago

Procheck 500

A Proctor Group Ltd Variant:
Third party certifications:
  • Passive House Institute - Certificate

    Passive House Institute - Certificate

    Certificate type

Plastic vapour control layer.

Jump to:
BOS
+44 (0)1250 872261 Website

Application

Designed as a vapour control layer for use in a variety of commercial and residential applications. It is designed to protect the building fabric from potential risks of condensation and it will also act as an airtight barrier.

Description

A range of Procheck vapour control layer products.

General information

Color

Silver

Grey

Black

White

Other

Guidance for specification option:

Translucent.

Finish

Foil

Laminated

Metallic

Smooth

Material

Plastic

Glass Fibre

Polyethylene

Aluminium

Foil

Shape

Rectangle

Uniclass

Pr_25_57_65_60 Plastics sheetsPrimary

CAWS

P10/60 Air and vapour control layer

P10/310 Air and vapour control layer

K21/120 Battened wood flooring

K21/115 Wood laminate flooring

K21/111 Wood floating floor

K21/110 Wood flooring

K21/10 Wood laminate flooring

K11/795 Wall lining on metal framing

K11/60 Board

K11/245 Cement bonded particleboard floating floor

K10/30 Metal stud

K10/155 Wall lining system (metal studs)

J42/395 Air and vapour control layer

J42/110 Warm deck roof covering

J42/10 Warm deck roof covering

J41/395 Air and vapour control layer

J41/115 Single-layer reinforced bitumen membrane warm deck roof covering

J41/110 Built-up reinforced bitumen membrane warm deck roof covering

J41/10 Reinforced bitumen membrane warm deck roof covering

J31/330 Air and vapour control layer

J31/30 Laying air and vapour control layer

J21/115 Warm deck roof coating

J21/110 Warm deck roof coating

J21/10 Warm deck roof coating

H92/780 Air and vapour control layer

H31/261 Air and vapour control membrane

H31/45 Air and vapour control membrane

H30/30 Air and vapour control membrane

H30/261 Air and vapour control membrane

Specification data - Plastics sheets

Material

Reinforced polyethylene.

Purpose

Vapour control layer.

Performance characteristics

-

Tensile strength (minimum)

MD 280 N/50mm; CD 170 N/50mm when tested to EN 12311-1.

Tear resistance

MD 150 N; CD 230 N when tested to EN 12310-1.

Elongation to break

MD 35%; CD 30% when tested to EN 12311-1.

Water vapour resistance (minimum)

Sd 100 m when tested to EN 1931.

Form

Woven.

Physical properties

-

Colour

Black.

Grey.

Translucent.

White.

Weight (minimum)

236 g/m².

Dimensions

-

Thickness (minimum)

0.5 mm.

Width (minimum)

2 m.

Roll length (minimum)

50 m.

Type:

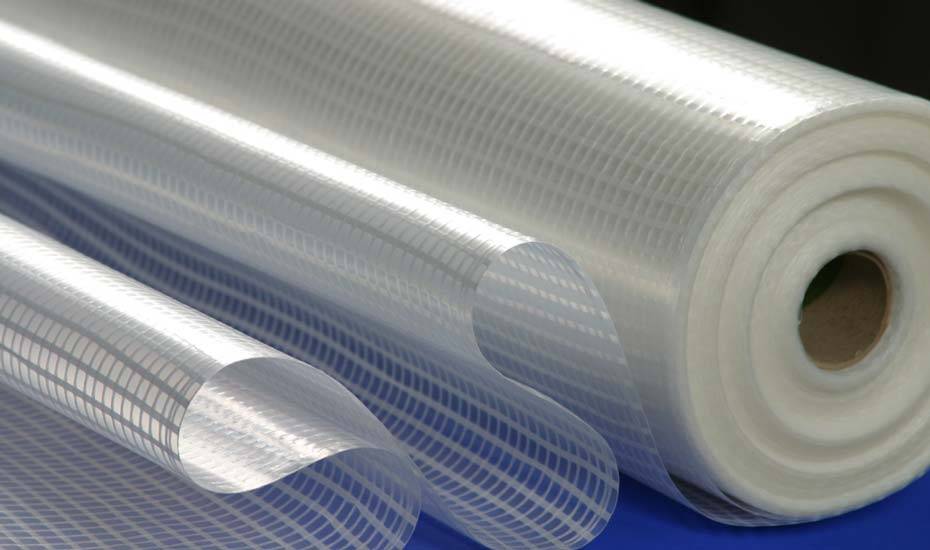

A strong reinforced polyethylene vapour control layer with good vapour resistance. The woven, extruded polypropylene multifilament scrim reinforcing provides improved nail tear resistance.

Sustainability data

Material

Plastic

Glass Fibre

Polyethylene

Aluminium

Foil

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Passive House Institute - Certificate

Passive House Institute - Certificate

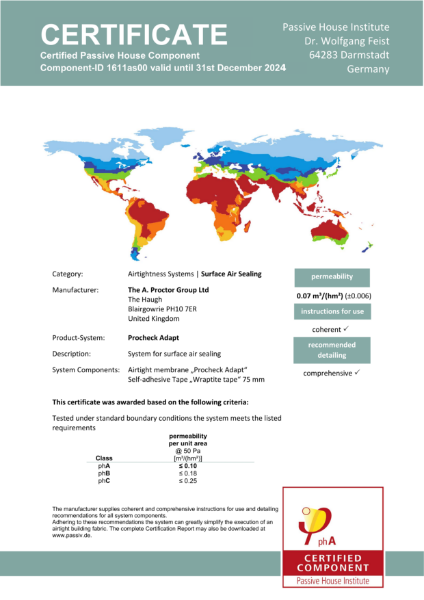

Procheck Adapt Passive House Product Certificate

Literature

Proctor Group HAMM Principles Brochure

Proctor Group HAMM Principles Brochure

Proctor Group Modular & Offsite Solutions

Proctor Group Modular & Offsite Solutions

Proctor High Rise and Façade Systems

Proctor High Rise and Façade Systems

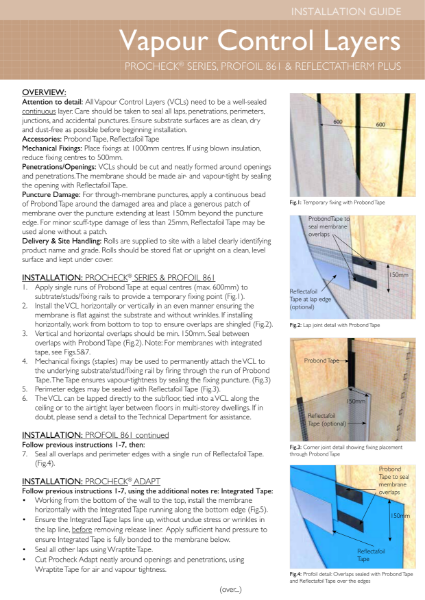

Procheck VCL Installation Guide
