Prodok Seal - Dock Shelters

Verified by manufacturer 5 months ago

Prodok Seal LSK Foam Dock Pad

Tekta UK Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

Dock seal range, designed to reduce temperature loss/gain and improve hygiene control for loading bays. Available solutions; Inflatable shelters, retractable shelters, foam pads.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Controlled Logistics.
  • Food and drink Manufacturing.
  • Pharmaceutical Manufacturing.
  • Cold Chain Logistics.

Description

A range of loading bay dock seals, including inflatable shelters, retractable shelters and foam dock pads.


Features and benefits:

  • Ultimate solution for controlled logistics.
  • High-quality air bags for maximum durability.
  • Custom sizes available on request.


Prodok LSI Inflatable Dock Shelter:

The Prodok LSI is an inflatable dock shelter, designed to provide a tight seal around trailers and prevent energy loss from temperature controlled loading bay areas.


Prodok LSM Retractable Dock Shelter:

The Prodok LSM is a mechanical dock shelter, designed to provide a seal around trailers, improving energy efficiency and hygiene control for ambient loading bay areas.


Prodok Seal LSK Foam Dock Pad:

The Prodok Seal LSK is a foam dock pad range, designed to provide a continuous seal between trailers and the dock area, preventing energy loss from temperature controlled loading bays.

General information

Color

Black

Material

Foam

Steel

PVC

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_30_20_45 Loading bay doorset systemsPrimary

CAWS

L20/617 Loading bay door and docking system

Specification data - Loading bay doorset systems

System components

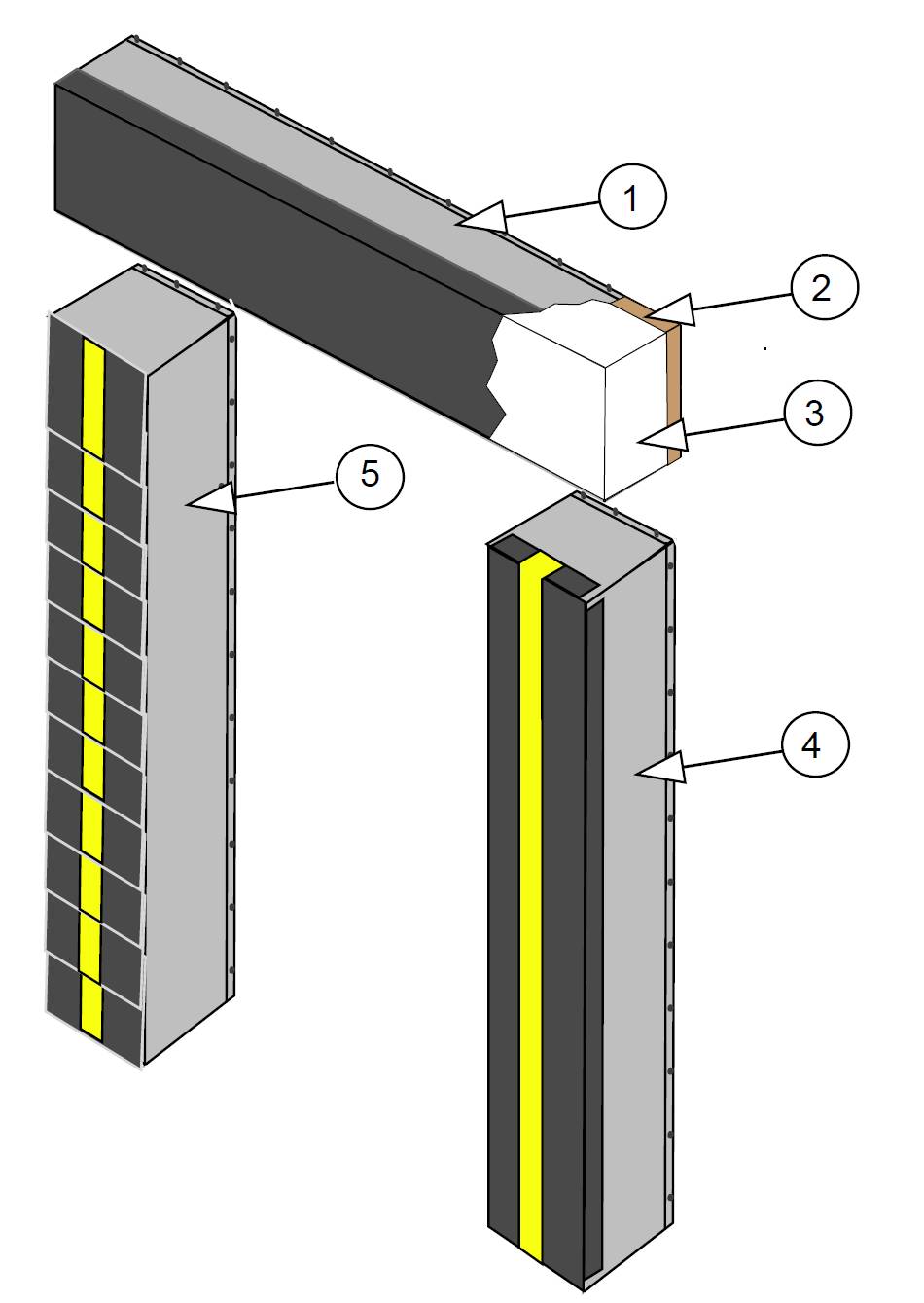

Two side pads and one head pad, constructed from medium density (fire resistant) foam, and surrounded with a heavy duty (nylon reinforced) PVC. Mounted on a solid backing plate for secure fixing to the building.

System accessories

High visibility yellow centre strip on side cushions for easy vehicle alignment.

Width

-

Manufacturer guidance

Custom sizes available upon request. Consult manufacturer for details.

Height:

-

Manufacturer guidance

Custom sizes available upon request. Consult manufacturer for details.

Power supply

N/A.

Finish:

Smooth finish 2500 g/m² PVC front protection panel.

Guidance for specification option:

Standard.

Armoured 5900 g/m² front plates.

Guidance for specification option:

Optional.

Operation:

Side and head cushions compress upon contact with loading vehicle to create a seal. Air exhausts from the cushions via air vents. Upon completion of loading, the vehicle leaves the dock and the memory foam pads re-form to their original shape, ready to repeat the process.

Controls

Automatic mechanical operation.

Fixing

Treated timber backing plate, fixed to building substrate.

Guidance for specification option:

Standard.

Galvanized steel backing plate, Galvanised steel backing plate, fixed to building substrate.

Guidance for specification option:

Optional.

Sustainability data

Material

Foam

Steel

PVC

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

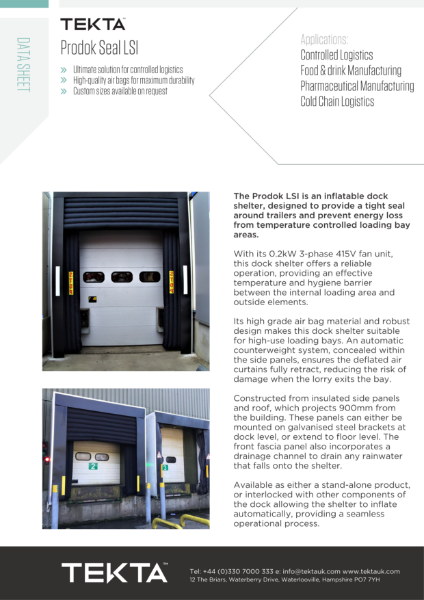

Prodok Seal LSI Datasheet

Prodok Seal LSI Datasheet

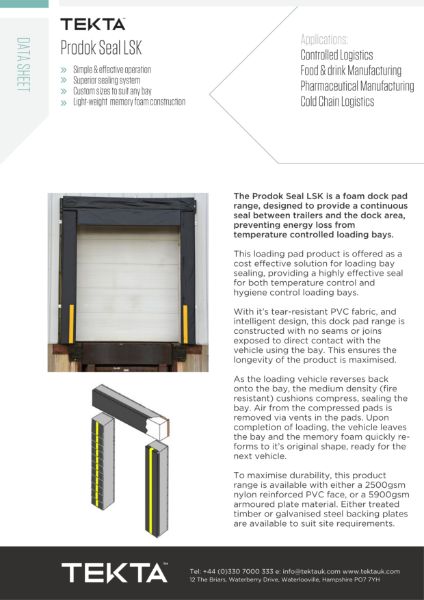

Prodok Seal LSK Datasheet

Prodok Seal LSK Datasheet

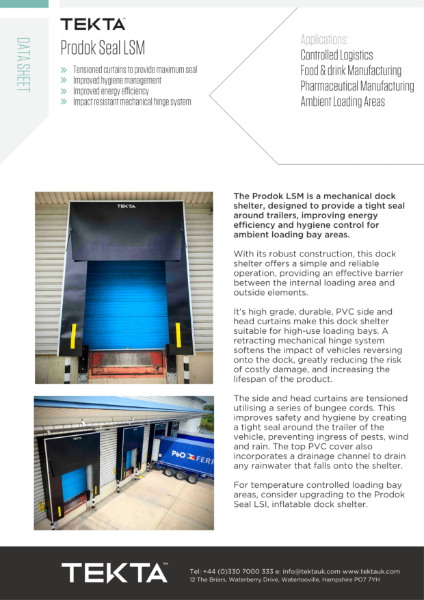

Prodok Seal LSM Datasheet

Prodok Seal LSM Datasheet
