Application

Suitable for all ages.

  • MFC suitable for light to medium use in dry areas.
  • HPL suitable for medium to heavy use in dry areas.
  • SGL suitable for heavy usage, where strength and durability is required, specifically in wet areas.


Description

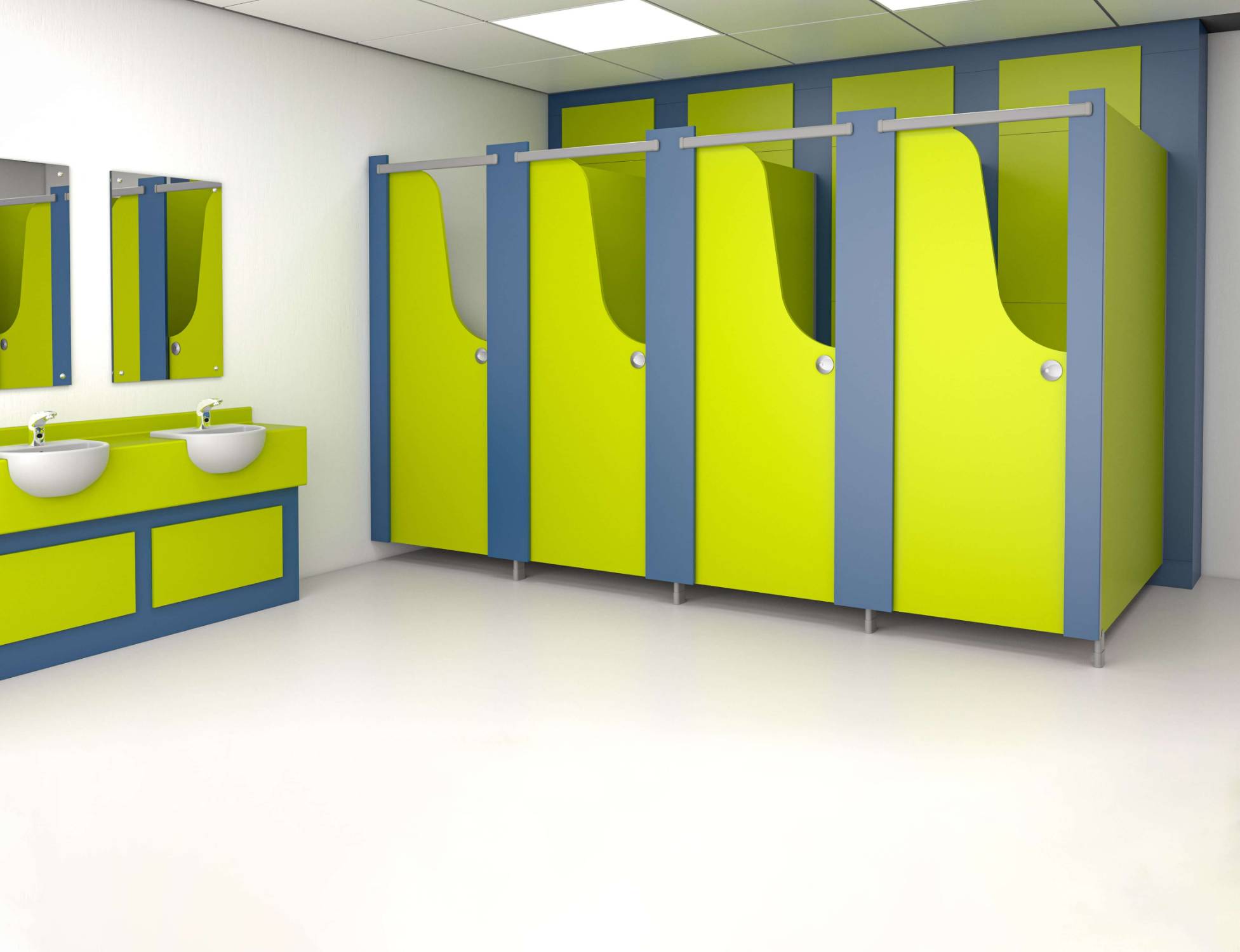

Versatile washroom cubicles, flexible enough to suit all ages. For younger children, Profiles Kidsâ„¢ can be specified with shaped doors, allowing easy access and supervision. For primary and secondary schools, colleges, universities and staff areas, the standard height Profilesâ„¢ cubicle is a suitable option.


Features and benefits:

  • Flexible system that can be adapted for use as a toilet, changing or shower cubicle.

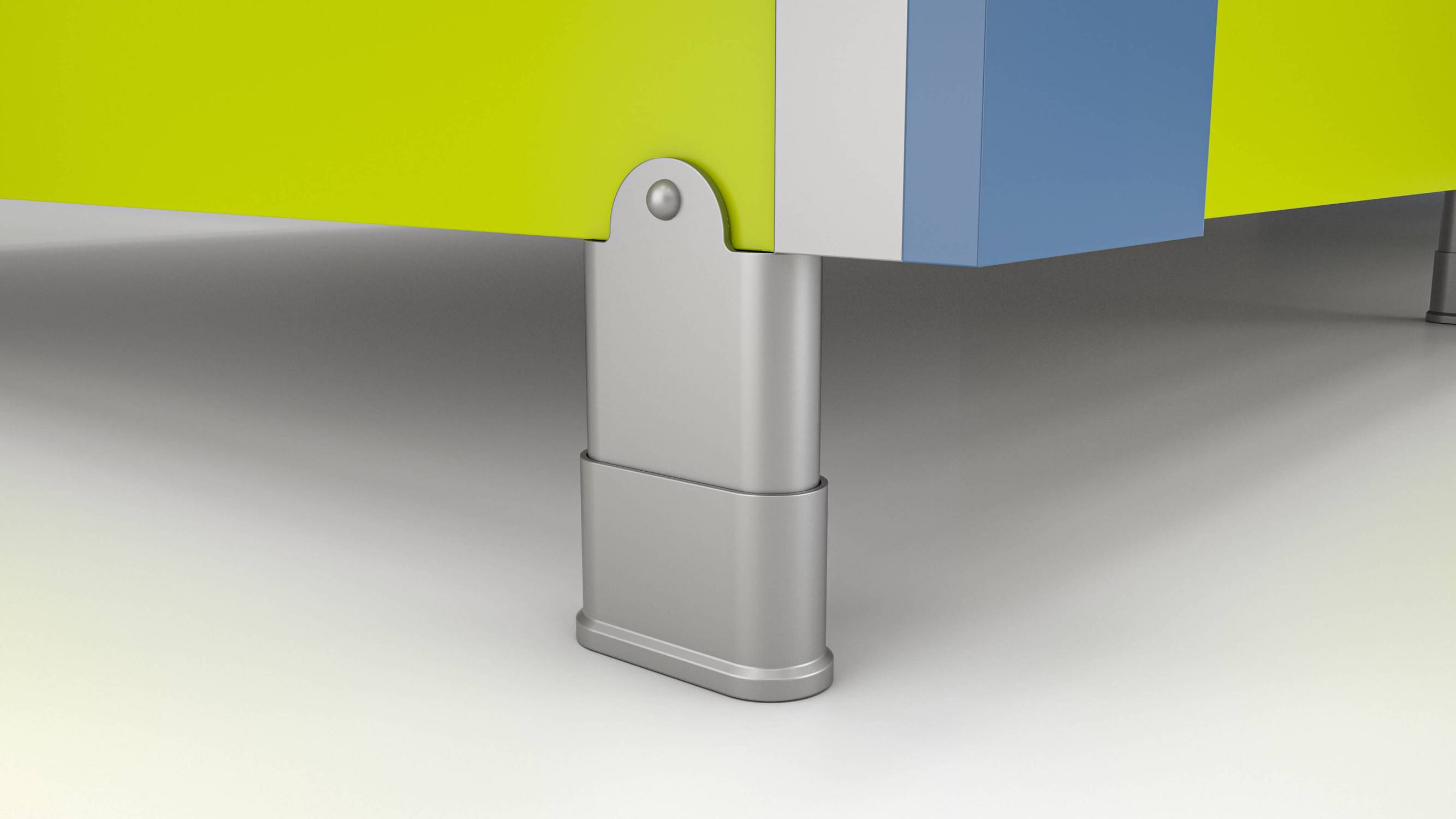

  • Features sturdy aluminium feet and a through-fixed headrail for strength.
  • All hinges anti-finger trap as standard.
  • Cubicle hardware satin anodized aluminium with light grey ABS lock.
  • Various options available for door and partition heights.
  • Department for Education compliant.


Components:

  • HPL: High pressure laminate panels, supplied with square edge and 1.0mm matching PVC lipping.
  • MFC: Melamine faced chipboard panels, supplied with square edge and 1.0mm matching PVC lipping.
  • SGL: Solid grade laminate panels, supplied with polished black radiused edges.
  • Frame comprising: Headrail, pilaster, legs, hinges and channel.


General information

Color

Other

Guidance for specification option:

Panels: 34 laminate colour options; select from manufacturer literature.

Finish

Smooth

Laminated

Satin

Anodized

Material

Laminate

Aluminium

Chipboard

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

1100 mm

Guidance for specification option:

to lowest point on door and partition scallop (including 100mm floor clearance)

1300 mm

Guidance for specification option:

to lowest point on door and partition scallop (including 100mm floor clearance)

1500 mm

Guidance for specification option:

to lowest point on door and partition scallop (including 100mm floor clearance)

2100 mm

Guidance for specification option:

with straight edged door and partition

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Specification data - Panel cubicle systems

Panels

HPL.

Panel supports

Aluminium frame, satin anodized.

Doors

HPL.

Hardware

Pilaster, hinges (anti-finger trap) and light grey ABS lock.

Partition height

1100 mm.

Guidance for specification option:

To the lowest point of scallop.

1300 mm.

Guidance for specification option:

To the lowest point of scallop.

1500 mm.

Guidance for specification option:

To the lowest point of scallop.

1950 mm.

Guidance for specification option:

To the lowest point of scallop.

2100 mm.

Guidance for specification option:

Straight edge.

Height

1100 mm.

1300 mm.

1500 mm.

Manufacturer guidance

Door height: to lowest point on door scallop including door clearance.

Clearance height

100 mm.

Guidance for specification option:

Floor.

Manufacturer guidance

Door.

Colours:

-

Manufacturer guidance

Panels: 34 laminate colour options, select from manufacturer literature.
