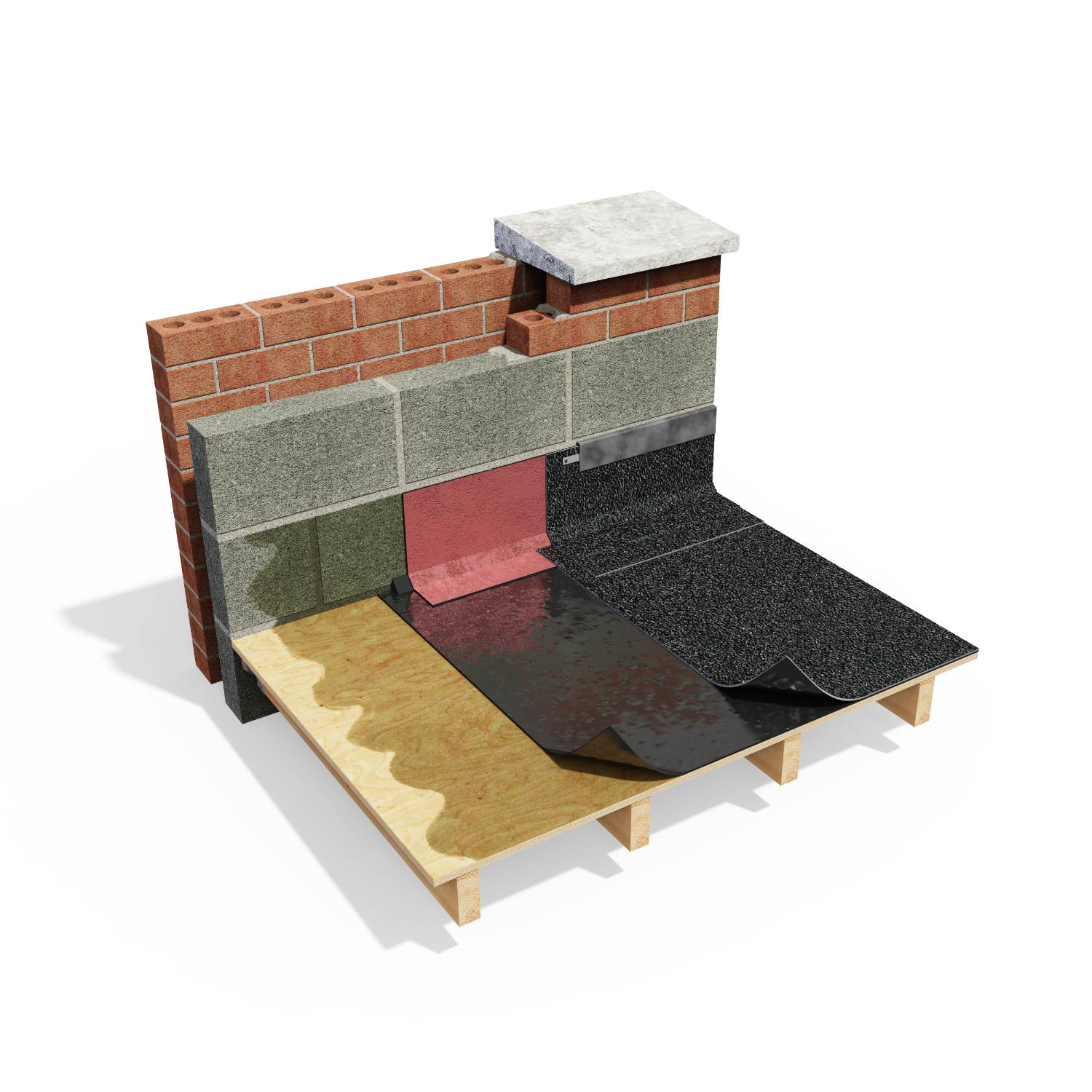

Name: Profiles XL FireSmart Plus System - Cold Roof / Safe2Torch / Partial Bond - System Number 14
Brand: BMI Group UK Ltd
SKU: kznGWLwmEoNuVdLyZf8RGU

Color

Grey

Guidance for specification option:

Charcoal or blue/grey.

Blue

Guidance for specification option:

Blue/ grey.

Green

Brown

Manufacturer guidance

To match field sheet, consult manufacturer for details.

Finish

Mineral

Material

Bitumen

Guidance for specification option:

Polyester reinforced styrene butadiene styrene (SBS) modified.

Manufacturer guidance

See specification for other materials.

Shape

Other

Length

Bespoke

Width

Bespoke

Warranty description

30 year

Uniclass

Ss_30_40_30_70 Reinforced bitumen membrane cold roof covering systemsPrimary

CAWS

J41/130 Built-up reinforced bitumen membrane cold deck roof covering

J41/12 Reinforced bitumen membrane cold deck roof covering

Preparation

Horizontal work

Icopal SA Primer.

Guidance for specification option:

Solvent-based, low viscosity polymeric priming solution.

Colour: Black/ brown.
Coverage rate: 4–8 m² per litre.
Application rate: 0.12–0.25 L/m².
Application limits: 4–25°C.
Drying time: 5–30 minutes.
Available in a 5 and 25 L tin to be applied by brush or roller.
Also available in a canister which can be spray-applied with the appropriate equipment.

Skirtings and vertical work

As Horizontal work.

Waterproof covering

First layer

Type

TorchSafe TA Underlay.

Manufacturer guidance

Heat-activated/self-adhesive glass reinforced SBS-modified bitumen membrane with vapour control stripes. For use as an underlay/ base layer.

Upper surface: Thermofusible film with SBS bitumen adhesive and release sheet to overlap selvedge.
Lower surface: Silica sand with SBS-modified bitumen adhesive stripes with release sheet.
Material: SBS-modified bitumen.
Type of reinforcement: Glass fibre, 95 g/m².
Independently site and laboratory tested by the British Board of Agrément and awarded BBA certificate number 09/4645, Product Sheet 3.

Characteristics:

Length, to EN 1848-1: 10 m.
Width (including selvedge), to EN 1848-1: 1 m.
Straightness, to BS EN 1848-1: <20 mm/10m.
Mass per unit area, to BS EN 1849-1: 2.8 kg/m².
Effective thickness, to BS EN 1849-1: 3 mm.
Water tightness, to BS EN 1928 (B): Pass.
Tensile strength, to BS EN 12311-1: 450 N/50mm (MD); 450 N/50mm (TD).
Elongation, to BS EN 12311-1: 4% (MD); 3.5% (TD).
Dimensional stability, to BS EN 1107-1: ≤1%.
Flexibility at low temperature, to BS EN 1109: ≤-15°C.
Flow resistance at elevated temperature, to BS EN 1110: >105°C.

Consult manufacturer's literature for tolerances.

Attachment

Heat activation.

Self-adhesive.

Top layer

Type

Profiles XL FireSmart Plus Mineral Capsheet, charcoal.

Guidance for specification option:

Standard.

Profiles XL FireSmart Plus Mineral Capsheet, green.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Profiles XL FireSmart Plus Mineral Capsheet, blue/ grey.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Profiles XL FireSmart Plus Mineral Capsheet, brown.

Guidance for specification option:

Made to order, minimum order quantities may apply - consult manufacturer for details.

Manufacturer guidance

Polyester reinforced SBS-modified bitumen membrane with FireSmart fire retardant. For use as a torch-applied top sheet.

Upper surface: Mineral granules with thermofusible film to overlap selvedge.
Lower surface: Thermofusible PE film.
Material: SBS-modified bitumen.
Type of reinforcement: Polyester, 250 g/m².

Characteristics:

Length, to EN 1848-1: 5 m.
Width (including selvedge), to EN 1848-1: 1 m.
Mass per unit area, to BS EN 1849-1: 7.2 kg/m².
Effective thickness, to BS EN 1849-1: 5.5 mm.
Water tightness, to BS EN 1928 (B): Pass.
External fire performance, to EN 13501-5: B_ROOF(t4).
Tensile strength, to BS EN 12311-1: 900 N/50mm (MD/ TD).
Elongation, to BS EN 12311-1: 35% (MD/ TD).
Dimensional stability, to BS EN 1107-1: ≤0.5%.
Flexibility at low temperature, to BS EN 1109: ≤-20°C.
Flow resistance at elevated temperature, to BS EN 1110: >75°C.

Consult manufacturer's literature for tolerances.

Attachment

Torch-applied.

Detail work

Flashings

As Waterproof covering.

FormFlash lead-free roof flashing.

Guidance for specification option:

Insert requirements.

Roll length: 10 m; available in widths between 120 and 950 mm.
Lightweight, lead-free alternative for roof flashing. 50% lighter than Code 4 lead making it easier to handle and speedier to install.
FormFlash fixing clips included.
Smooth grey finish.

Not required.

Skirtings and upstands

TorchSafe TA Detailing Underlay and Profiles XL FireSmart Plus Mineral Capsheet.

Not required.

Welted drips

As Waterproof covering.

Not required.

Cover strips

As Waterproof covering.

Not required.

System accessories

None.

Roofgard GRP Edge Trims.

Guidance for specification option:

A range of perimeter trims is available in sizes B50, B100 or B150, with match internal and external corners available throughout.

Consult manufacturer and insert requirements.

Roofgard Universal Outlets.

Guidance for specification option:

Insert requirements.

Standard sizes: 50, 62, 80, 90 or 145 mm.

Leaf grate also available.

Roofgard Parapet Outlet.

Guidance for specification option:

Roofing outlet that complements built up roof systems allowing drainage of the roof through the parapet to an external hopper.

Insert requirements: 100 mm outlet opening as standard. Leaf grate, 45° chute and extension also available.

Roofgard Cable & Pipe Duct.

Guidance for specification option:

Provides a weatherproof sleeve for cables or tubes that penetrate through a flat roof

Color	Grey Guidance for specification option: Charcoal or blue/grey. Blue Guidance for specification option: Blue/ grey. Green Brown Manufacturer guidance To match field sheet, consult manufacturer for details.
Finish	Mineral
Material	Bitumen Guidance for specification option: Polyester reinforced styrene butadiene styrene (SBS) modified. Manufacturer guidance See specification for other materials.
Shape	Other
Length	Bespoke
Width	Bespoke
Warranty description	30 year

Preparation	-
Horizontal work	Icopal SA Primer. Guidance for specification option: Solvent-based, low viscosity polymeric priming solution. Colour: Black/ brown. Coverage rate: 4–8 m² per litre. Application rate: 0.12–0.25 L/m². Application limits: 4–25°C. Drying time: 5–30 minutes. Available in a 5 and 25 L tin to be applied by brush or roller. Also available in a canister which can be spray-applied with the appropriate equipment.
Skirtings and vertical work	As Horizontal work.
Waterproof covering	-
First layer	-
Type	TorchSafe TA Underlay. Manufacturer guidance Heat-activated/self-adhesive glass reinforced SBS-modified bitumen membrane with vapour control stripes. For use as an underlay/ base layer. Upper surface: Thermofusible film with SBS bitumen adhesive and release sheet to overlap selvedge. Lower surface: Silica sand with SBS-modified bitumen adhesive stripes with release sheet. Material: SBS-modified bitumen. Type of reinforcement: Glass fibre, 95 g/m². Independently site and laboratory tested by the British Board of Agrément and awarded BBA certificate number 09/4645, Product Sheet 3. Characteristics: Length, to EN 1848-1: 10 m. Width (including selvedge), to EN 1848-1: 1 m. Straightness, to BS EN 1848-1: <20 mm/10m. Mass per unit area, to BS EN 1849-1: 2.8 kg/m². Effective thickness, to BS EN 1849-1: 3 mm. Water tightness, to BS EN 1928 (B): Pass. Tensile strength, to BS EN 12311-1: 450 N/50mm (MD); 450 N/50mm (TD). Elongation, to BS EN 12311-1: 4% (MD); 3.5% (TD). Dimensional stability, to BS EN 1107-1: ≤1%. Flexibility at low temperature, to BS EN 1109: ≤-15°C. Flow resistance at elevated temperature, to BS EN 1110: >105°C. Consult manufacturer's literature for tolerances.
Attachment	Heat activation. Self-adhesive.
Top layer	-
Type	Profiles XL FireSmart Plus Mineral Capsheet, charcoal. Guidance for specification option: Standard. Profiles XL FireSmart Plus Mineral Capsheet, green. Guidance for specification option: Made to order, minimum order quantities may apply - consult manufacturer for details. Profiles XL FireSmart Plus Mineral Capsheet, blue/ grey. Guidance for specification option: Made to order, minimum order quantities may apply - consult manufacturer for details. Profiles XL FireSmart Plus Mineral Capsheet, brown. Guidance for specification option: Made to order, minimum order quantities may apply - consult manufacturer for details. Manufacturer guidance Polyester reinforced SBS-modified bitumen membrane with FireSmart fire retardant. For use as a torch-applied top sheet. Upper surface: Mineral granules with thermofusible film to overlap selvedge. Lower surface: Thermofusible PE film. Material: SBS-modified bitumen. Type of reinforcement: Polyester, 250 g/m². Characteristics: Length, to EN 1848-1: 5 m. Width (including selvedge), to EN 1848-1: 1 m. Mass per unit area, to BS EN 1849-1: 7.2 kg/m². Effective thickness, to BS EN 1849-1: 5.5 mm. Water tightness, to BS EN 1928 (B): Pass. External fire performance, to EN 13501-5: B_ROOF(t4). Tensile strength, to BS EN 12311-1: 900 N/50mm (MD/ TD). Elongation, to BS EN 12311-1: 35% (MD/ TD). Dimensional stability, to BS EN 1107-1: ≤0.5%. Flexibility at low temperature, to BS EN 1109: ≤-20°C. Flow resistance at elevated temperature, to BS EN 1110: >75°C. Consult manufacturer's literature for tolerances.
Attachment	Torch-applied.
Detail work	-
Flashings	As Waterproof covering. FormFlash lead-free roof flashing. Guidance for specification option: Insert requirements. Roll length: 10 m; available in widths between 120 and 950 mm. Lightweight, lead-free alternative for roof flashing. 50% lighter than Code 4 lead making it easier to handle and speedier to install. FormFlash fixing clips included. Smooth grey finish. Not required.
Skirtings and upstands	TorchSafe TA Detailing Underlay and Profiles XL FireSmart Plus Mineral Capsheet. Not required.
Welted drips	As Waterproof covering. Not required.
Cover strips	As Waterproof covering. Not required.
System accessories	None. Roofgard GRP Edge Trims. Guidance for specification option: A range of perimeter trims is available in sizes B50, B100 or B150, with match internal and external corners available throughout. Consult manufacturer and insert requirements. Roofgard Universal Outlets. Guidance for specification option: Insert requirements. Standard sizes: 50, 62, 80, 90 or 145 mm. Leaf grate also available. Roofgard Parapet Outlet. Guidance for specification option: Roofing outlet that complements built up roof systems allowing drainage of the roof through the parapet to an external hopper. Insert requirements: 100 mm outlet opening as standard. Leaf grate, 45° chute and extension also available. Roofgard Cable & Pipe Duct. Guidance for specification option: Provides a weatherproof sleeve for cables or tubes that penetrate through a flat roof Roofgard Universal Cowled Telescopic Vents.
