Prolight Single Leaf - Smoke Vent
Verified by manufacturer 4 days ago

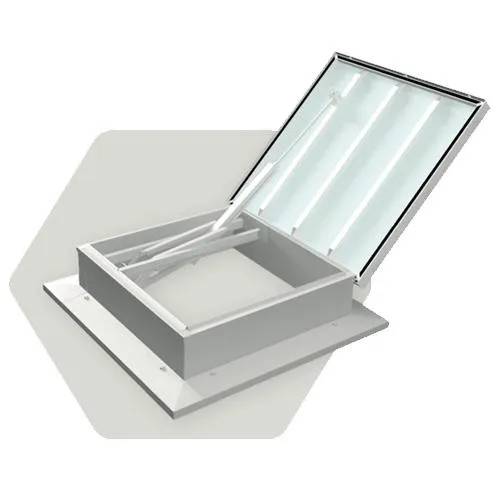

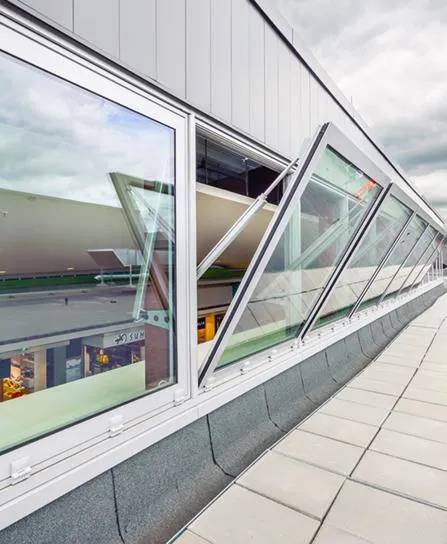

Single-leaf smoke vents with straight base – type C/ E
Single-leaf smoke vents with straight base – type C/ E
Single-leaf smoke vents with straight or skew base.
Application
- For natural smoke exhaust systems.
- Smoke vents type C/E and NG-A are designed for flat and pitched roofs, maximum 15º, covered with roofing paper or PVC membrane.
Description
Single-leaf smoke vents with straight or skew base. Prolight Single Leaf smoke vents:
- Maintain emergency routes in a state of moderate smoke level, permitting effective evacuation.
- Reduce the risk of damaging or destroying the building structure due to a sudden decrease in temperature.
General information
Color | Grey Other |
Finish | Galvanized Powder-coated |
Material | Steel Aluminium Polycarbonate |
Shape | Rectangle Square |
Length | 1000 mm 1100 mm 1150 mm 1200 mm 1250 mm |
Width | 1000 mm 1100 mm 1150 mm 1200 mm 1250 mm |
Height | 300 mm 500 mm 700 mm Bespoke |
Uniclass | |
CAWS | L10/47 Roof ventilators L10/490 Roof ventilators |
Specification data - Natural smoke and heat exhaust ventilators
Classification data | |
Standard | To EN 12101-2. |
Third-party certification | Certificate of constancy of performance in accordance with EN 12101-2. |
Mounting | Roof-mounted. |
Aerodynamic free area | Maximum 4.05 m². |
Reliability classification | Re 300. Re 50. |
Snow load classification | SL 250. SL 550. SL 750. SL 950. SL 1300. SL 1600. SL 2000. |
Low ambient temperature classification | T (-25). T (00). |
Wind load classification | WL 1500. WL 750. |
Resistance to heat classification | B300. B600. Manufacturer guidanceDepending on type and accessories. Consult manufacturer for details. |
Arrangement | Glazed. |
Dimensions | |
Length | Manufacturer guidanceDimensional range of smoke vents:
Insert requirements or refer to a drawing. |
Width | Manufacturer guidanceDimensional range of smoke vents:
Insert requirements or refer to a drawing. |
Height | 300 mm. 500 mm. Bespoke. Guidance for specification option: Insert requirements. Custom base height, type C/ E: 200 mm to 700 mm. Base height below 300 mm is available only if a plinth is designed for the vent, ensuring total height (vent plus plinth) of a minimum 300 mm. Custom base height, type NG-A: 300 mm to 700 mm. |
Controls | Pneumatic (smoke exhaust). Electric 230 V (ventilation). Electric 24 V (smoke exhaust and daily ventilation). Pneumatic (gas springs) (smoke exhaustand/ or ventilation). |
Initiation | Automatic. Guidance for specification option: Through a thermo switch installed in the vent (pneumatic system), or by optical smoke sensors (electric system). Manual. Guidance for specification option: By a release of CO2 cartridges in alarm box (pneumatic system), or by operation of RPO-1 emergency pushbutton (electric system). Fire alarm system (FAS) signal. Guidance for specification option: By external impulse from fire alarm system (FAS) sent to an electromagnet installed in the alarm box (pneumatic system), or directly to smoke exhaust control unit (electric system). |
Materials | |
Ventilator | |
Glazing | Multi-chamber polycarbonate. Acrylic dome. Guidance for specification option: Applies to selected vent sizes. Solid polycarbonate dome. ALu sandwich panel. Guidance for specification option: ALU sandwich panel: aluminum – thermal insulation – aluminum. Broof(t1) glazing. Guidance for specification option: Multi-chamber polycarbonate of thickness ≥ 10 mm and polyester panel. Multi-chamber polycarbonate panel and envelope cover. Multi-chamber polycarbonate panel and single or double-layer acrylic dome or solid polycarbonate dome. |
Colour | Manufacturer's standard. RAL. Guidance for specification option: Any RAL colour available; insert requirements. |
Integral upstands | |
Material | Double-skin galvanized steel, insulated. Guidance for specification option: As standard. Double-skin aluminium, insulated. Guidance for specification option: Non-standard option. Double-skin stainless steel, insulated. Guidance for specification option: Non-standard option. |
Colour | Manufacturer's standard. RAL. Guidance for specification option: Any RAL colour available; insert requirements. |
Accessories | Not required. Wind deflectors. Inlet deflector. Stainless steel inlet deflector. Guidance for specification option: Non-standard option. Roof access option. Stainless steel opening mechanism. Manufacturer guidanceWind deflectors and inlet deflectors can be painted to any RAL colour. |
Insulation | 30 mm thick PIR insulation. 20 mm thick mineral wool insulation. |
Flange size | Width 100 mm. Bespoke. Guidance for specification option: Insert requirements. Manufacturer guidanceThe bottom part of the base has a circumferential flange through which the base is fitted to the roof structure. |
Strips | Galvanized steel sheet flashings fixing strip. Guidance for specification option: Standard. PVC coated metal sheet flashings fixing strip. Guidance for specification option: Non-standard option. |
Sustainability data
Material | Steel Aluminium Polycarbonate |
Literature
2024 Technical Catalogue PROLIGHT
