Proofex Waterproof Render
Verified by manufacturer 18 days ago
Single component polymer modified cementitious material conforming to the requirements of BS EN 1504 Class R2 and BS EN 998-1.
Application
- Internal waterproofing of below ground masonry and concrete structures such as lift-pits, basements, cellars and tunnels.
- BS 8102:2022 Type A Protection.
- Suitable for use in conjunction with other Fosroc waterproofing products to provide a complete waterproofing solution for new and existing structures.
- Proofex Waterproof Render can also be used in association with Renderoc mortars where repair work is required to existing structures.
Description
Proofex Waterproof Render is a ready to use blend of dry powders requiring only the site addition of clean water to produce a highly consistent cementitious render. The material is based on a blend of cements, graded aggregates, special fillers, and chemical additives to provide a material with good handling characteristics, while minimising water demand.
Features and benefits:
- Resistance to positive and negative hydrostatic pressure.
- Compatibility with structural and non-structural concrete of compressive strength >20 MPa.
- Polymer-modification provides extremely low permeability to water, carbon dioxide and chlorides.
- Excellent bond to concrete and masonry.
- Can be applied quickly and efficiently.
- One component, pre-bagged to overcome site-batched variations.
- Exhibits excellent compatibility with concrete and is fully compatible with Renderoc mortars and Nitocote/ Dekguard coatings.
General information
Color | Grey |
Material | Cementitious Polymer-modified cement |
Shape | Formless |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | M20/19 Proprietary cement gauged render M20/160 Proprietary cement gauged render |
Specification data - Cementitious renders
Classification data | |
Product reference | Proofex Waterproof Render. |
Components | Portland cement. |
Performance requirement class | To BS EN 1504, Class R2. |
Bond strength | To EN 1542, >3.1 MPa. |
Water permeability | To EN 1062-3, ~0.03. |
Compressive strength - 28 days | To EN 12190, >45 MPa. |
Density | 1850–2050 kg/m³. Manufacturer guidanceFresh wet density. |
Application temperature | 3°C (minimum). |
Fire performance | Non-flammable. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Cementitious Polymer-modified cement |
Literature

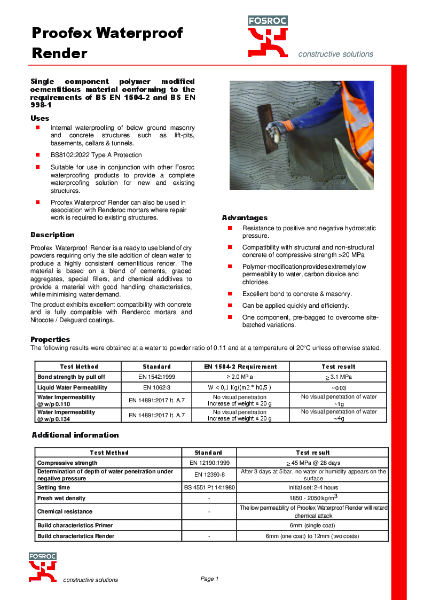

Proofex Waterproof Render - Technical Data Sheet
