Proroof Access Hatch - Roof Access Hatch
Verified by manufacturer 4 days ago

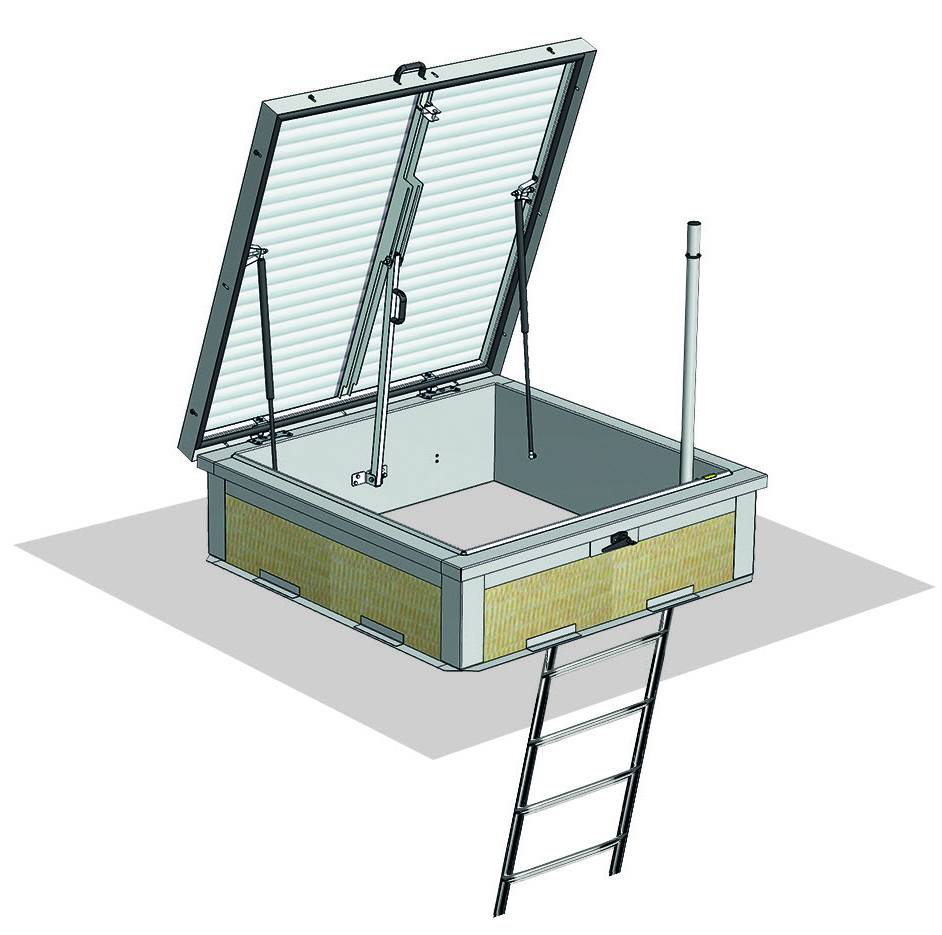

mcr PROROOF LD
mcr PROROOF LD
A range of roof hatches with solid or translucent glazing.
Application
For roof access.
Description

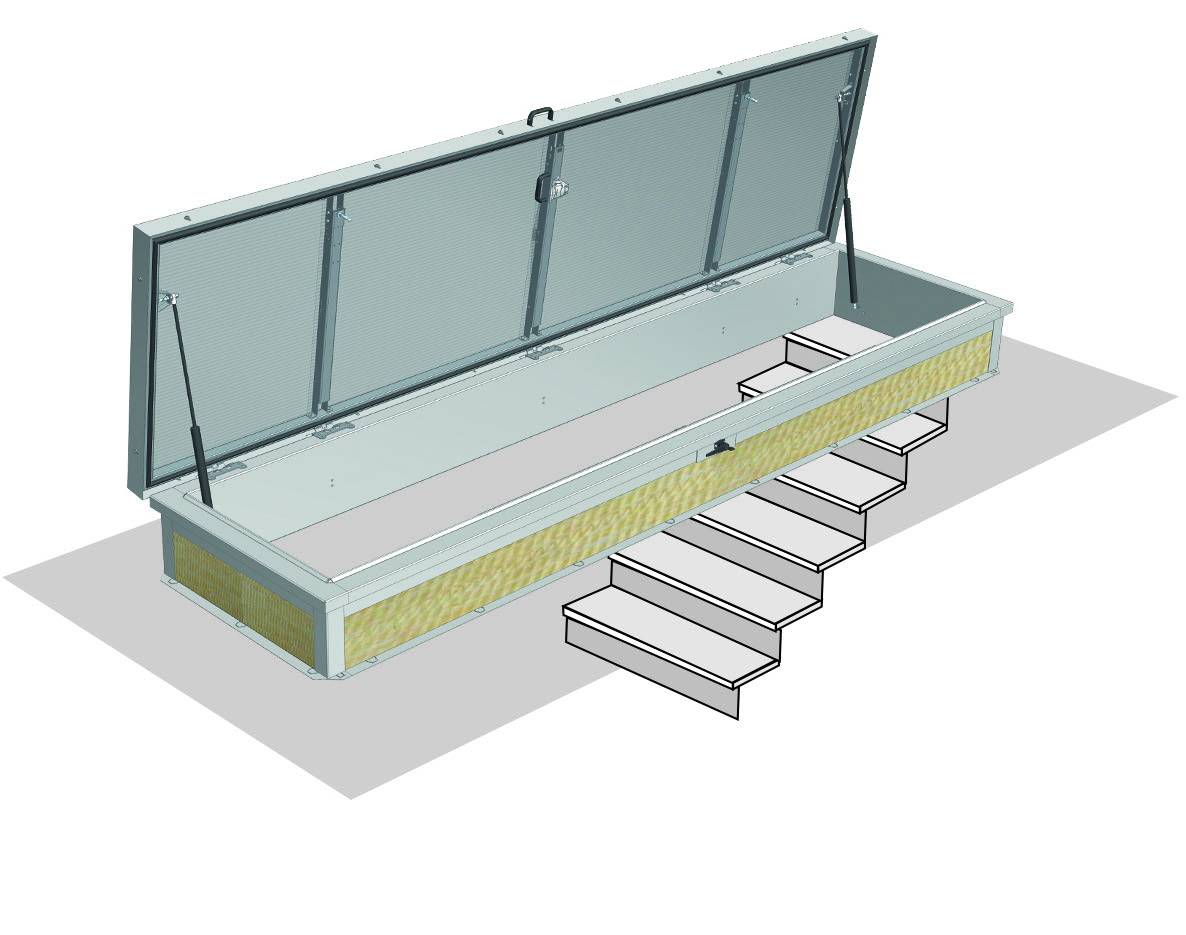

The mcr Proroof roof hatches are devices that allow access to the roof for maintenance and operational work. The product is available in two variants: LD (with ladder) and ST (with stairs). Both hatches can provide light inside the building due to the optional translucent glazing.
Features and benefits:
- Water tightness guaranteed by EPDM gasket.
- Gas springs for easy leaf raising. Hatch ST type equipped with an integrated blockage of the leaf.
- Locking from inside and outside.
- Wide range of glazing: structured polycarbonate plates, solid acrylic/ polycarbonate domes or sandwich panel.
- Device elements painted to any RAL colour.
General information
Color | Other |
Finish | Painted |
Material | Aluminium Steel Polycarbonate |
Shape | Square Rectangle |
Length | 600 mm 700 mm 800 mm 900 mm 1000 mm |
Width | 750 mm 600 mm 700 mm 800 mm 900 mm |
Uniclass | |
CAWS | L20/630 Hatches |
Specification data - Roof hatches
Classification data | |
Format | External. |
Door | |
Orientation | Horizontal. |
Material | Steel profiles. |
Operation | |
Mode | Gas springs - manual. |
Accessories | Not required. Adaptor base. PVC planking. Protection net 1200 J. |
Width | 600 mm. 700 mm. 800 mm. 900 mm. 1000 mm. 1100 mm. 1200 mm. 1300 mm. 1400 mm. 1500 mm. |
Length | 600 mm. 700 mm. 800 mm. 900 mm. 1000 mm. 1100 mm. 1200 mm. 1300 mm. 1400 mm. 1500 mm. |
Colour/ Finish | Painted, RAL. Guidance for specification option: Device elements painted to any RAL colour. Insert requirements. |
Glazing | Structured polycarbonate plates. Solid acrylic/ polycarbonate domes. Sandwich panel. |
Insulation | 60 mm PIR insulation. Guidance for specification option: U-value of 0.36 W/m²K. |
Integral accessories | EPDM gasket, ladder up grip and handle with key. |
Design load | Upward load 1500 Pa; Downward load 1000 Pa. |
Sustainability data
Material | Aluminium Steel Polycarbonate |
