PROSHOWER PROFILE GLASS
Verified by manufacturer 2 months ago
PSHWPGACS 100SX
PSHWPGACS 100SX
Decorative profile.
Application
Suitable for every kind of environment where high resistance
to mechanical and chemical stresses are required.
Don’t use in swimming pools and in environments
where strong substances are used.
Description

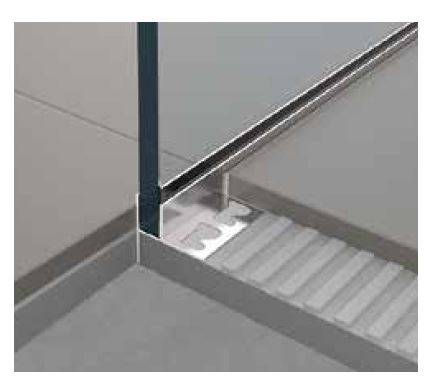

PROSHOWER PROFILE GLASS is a profile in satin nish stainless steel AISI 304 /1.4301 – V2A for floor wire shower that protects the edges of the ‑flooring, decorates the visible side of the screed and allows the fixing of a glass slab. The profile is suitable for tiles with a thickness until 15 mm. It is available with a length of 1000, 1500 and 2000 mm. The sloping visible surface moves from 19 mm to 34 mm for the profile with a length of 1000 mm and to 42 mm for the prole with a length of 1500 mm. The profile has a slope of 1.5%.
Also available with the inclined visible surface that has a height ranging from 15 mm to 33 mm for the 1 m long profile, to 43 mm for the 1.5 m and 53 mm for the profile 2 m long. The profile has a slope of 2%.
They are available in the right and left version.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1000 mm 1500 mm 2000 mm |
Height | 15 mm 19 mm 33 mm 34 mm |
Uniclass | |
CAWS | M40/110 Tiling to M40/12 Mosaic to M40/120 Mosaic to M40/10 Natural stone covering to M40/115 Natural stone covering to M50/740 Edgings and cover strips M50/70 Edgings and cover strips M42/65 Dividing/ Diminishing strips M42/570 Dividing/ diminishing strips M40/5 Tiling to |
Specification data - Preformed tiling strip joints
Form | Shaped profile. |
Material and finish | Stainless steel AISI 304 / 1.4301 – V2A. Satin finish. |
Colour | Silver. |
Size | |
Length (minimum) | 1000 mm. |
Depth | 34 mm. |
Sustainability data
Material | Stainless steel |

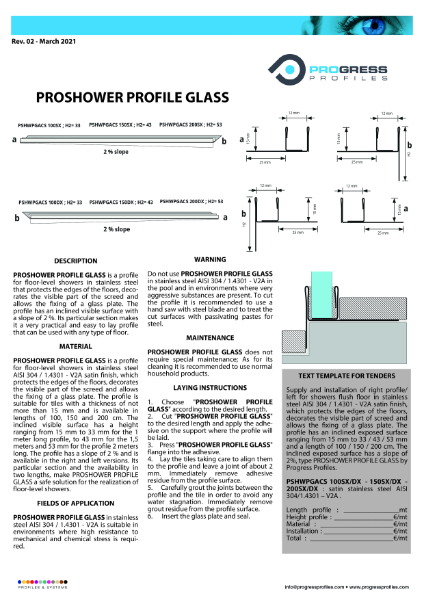

Literature
PROSHOWER PROFILE GLASS
