Protect HVM Inspira Planter

Name: Protect HVM Inspira Planter
Brand: Bailey Street Furniture Group
SKU: vDg6bcnEsCMz4hrbxREzMS

Verified by manufacturer 2 days ago

Hostile vehicle mitigation (HVM) tested planter.

Jump to:

Application

Outdoor planter for HVM applications.

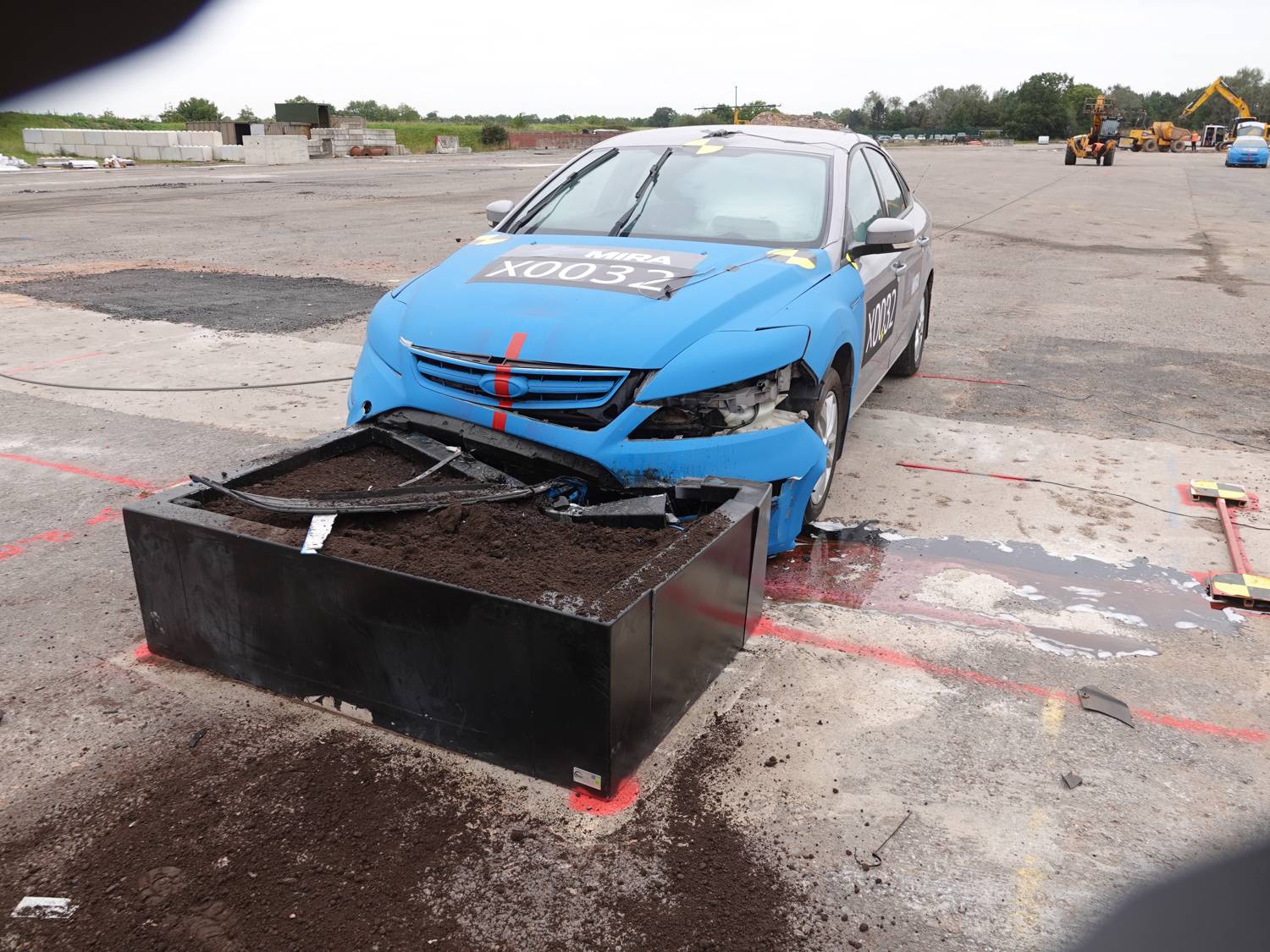

Inspira Protect Planters have been tested to IWA 14-1 standards to withstand impact from both 1.5 and 2.5 tonne vehicles.

Features and benefits:

Impact-resistant, fully-welded steel support frame.
Sub-frame and cladding panels are all hot-dip galvanized to BS EN 1461:2009 and powder-coated to site specification.
The planter sits on top of a slab foundation of 150 mm.
The modular design can be scaled up where needed.
The 2.5-tonne version features a higher axle impact point with a height of 600 mm.

Color	Other Clear Beige Black Blue Bronze Brown Copper Cream Gold Green Grey Ivory Orange Pink Purple Red Silver Turquoise White Yellow Show more
Finish	Powder-coated Galvanized
Material	Steel
Shape	Circle Crescent Diamond Elliptical Formless Hexagon Kite Octagon Oval Parallelogram Pentagon Rectangle Rhombus Square Trapezium Trapezoid Triangle Other Show more
Length	1500 mm
Width	1000 mm
Height	450 mm 600 mm
Warranty description	Ten year

Uniclass	Pr_45_63_63_84 Steel plant containersPrimary
CAWS	Q31/292 Prefabricated plant containers

SKU Code	304.0357

Classification data
Material	Steel.
Finish	Galvanized and powder-coated.
Shape	Rectangular.
Dimensions	450 x 1500 x 1000 mm. Guidance for specification option: 1.5-tonne version. 600 x 1500 x 1000 mm. Guidance for specification option: 2.5-tonne version.
Performance	To IWA 14-1:2013, 450 mm V/1500[M1]/48/90:0.0; 600 mm V/2500[N1G]/48/90:0.0.

Contains Red List materials	Yes
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	London Rd, Adlington, Macclesfield SK10, UK
Material	Steel
Recyclability	Yes
Expected Life	Ten year
