Protection Bollard - Heavy Duty Polymer Protection Bollard
Verified by manufacturer 3 months ago
Protection Bollard - 1200 mm
Protection Bollard - 1200 mm
TUV NORD
Certificate type

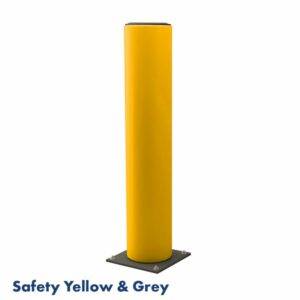

A High Density Polyethylene (HDPE) plastic bollard.
Application
The Protection Bollard is suited for commercial food production facilities and freezer environments. It serves several critical functions:

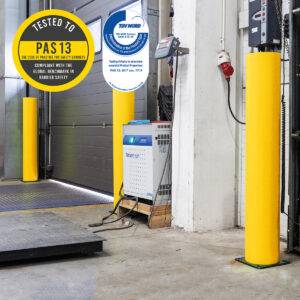

- Loading bays: with its high-visibility color and robust construction from steel and polymer, the protection bollard offers essential protection against the frequent impacts that loading bay doors and walls face.
- Pedestrian access points: it is commonly employed at doorways, elevators, and emergency exits to delineate safe pathways.
- Pallet and stillage traffic routes: in busy storage areas, a strategically placed bollard can significantly enhance safety by alerting drivers and pedestrians, while also offering vital protection.
Description
Heavy duty safety bollards that are a cost effective solution to protect corners, entrances and structures without taking up too much space. Manufactured from tough HPDE, these bollards are able to take the impact of multiple hits and simply reform afterwards with little or no damage.
Features and benefits:
- Manufactured from ballistics grade materials.
- Quick and easy installation with all fixings provided.
- High visibility colours clearly gives safe working boundaries for MHE drivers.
- Suitable for corners, entrances and structures.
- Deflects under impact without damaging.
- Use in ambient, chilled and freezer environments
- Non toxic and fade resistant material.
- Fully recyclable.
- Multiple colour options.
- Tested to PAS 13.
- Available in different colour options.
- Available in heights of 600 mm, 900 mm and 1200 mm.
- Tested impact energy 6000 J.
General information
Color | Yellow Blue Grey |
Finish | Matt |
Material | High density polyethylene (HDPE) Polymer Steel |
Shape | Other Guidance for specification option: Cylindrical. |
Length | 240 mm |
Width | 240 mm Guidance for specification option: Footplate. |
Height | 600 mm 900 mm 1200 mm |
Uniclass | |
CAWS | Q50/190 Bollards Q50/31 Bollards |
Specification data - Plastics bollards
Standard | In accordance with PAS 13. |
Material | High density polyethylene (HDPE) polymer with a steel core. |
Dimensions | |
Size and profile | 240 mm.Guidance for specification option: Footplate. |
Height | 1200 mm. |
Top profile | Flat. |
Base | Flat. |
Finishes | |
Colour | Colourfast yellow and grey.Hi-vis yellow and blue.Safety yellow and grey. |
Accessories | Hilti HSA4 floor anchor. |
TemperatureRange | -40°C to 50°C. |
Deflection | 272 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
TUV NORD
Protection Bollard - PAS 13 Test Certificate - TÜV NORD
TUV NORD
Protection Bollard - PAS 13 Compliance Certificate - TÜV NORD
Literature

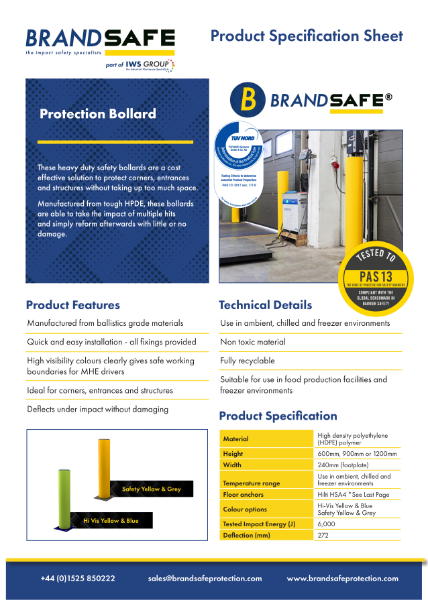

Protection Bollard - Brandsafe Spec Sheet
