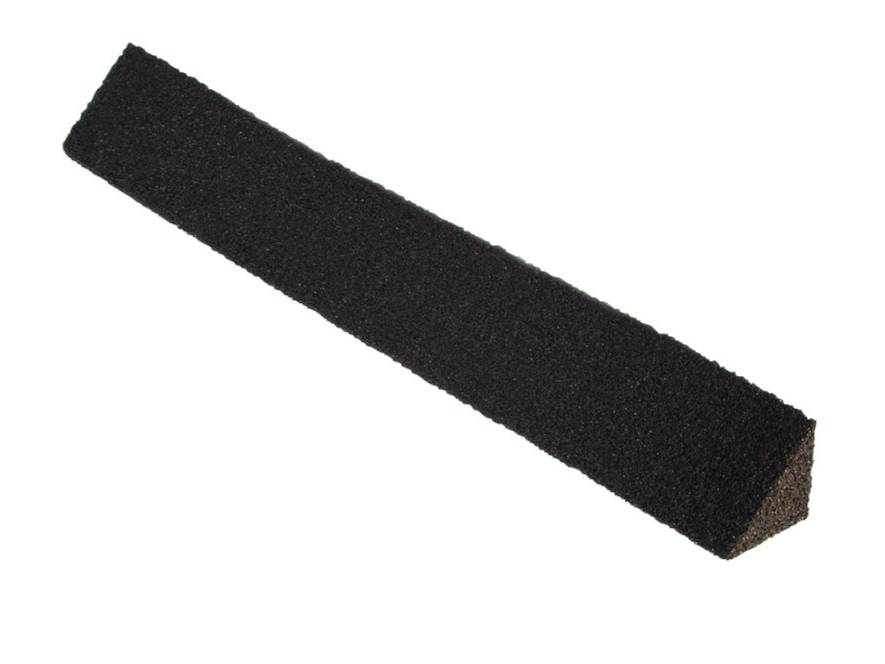

ProTherm FOAMGLAS® Angle Fillets - Insulation Angle Fillet
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Non-combustible angle fillets for use at changes in angle from flat to vertical at waterproofing upstands/ abutments.
Application
Angle Fillets provide a 45° angle to support the waterproofing membrane/ system at all 90° vertical abutments.
ProTherm Angle Fillets (Mineral Wool) can be used in similar circumstances and may be compatible with the roofing system - consult with Radmat for technical advice.
Description
The triangular profile of ProTherm FOAMGLAS® non-combustible Euroclass A1 cellular glass foam insulation is constructed from FOAMGLAS® T4+ un-faced boards.
Provided in 450 mm lengths and to a height of 50, 100 or 150 mm.
They are to be bonded to the top layer of FOAMGLAS® insulation in a built-up warm roof application or bonded directly to the substrate where required on a cold roof application.
Bonding can be with PC®58 cold-bonding adhesive or EshaPur 95/25 Oxidised Bitumen for hot-applied applications. Where Radmat PermaQuik PQ6100 Hot Melt is the waterproofing system specified, the ProTherm FOAMGLAS® Angle Fillets can also be bonded into a base layer of PermaQuik Hot Melt.
General information
Color | Black |
Finish | Unfinished |
Material | Cellular glass |
Shape | Triangle |
Length | 450 mm |
Width | 50 mm 100 mm 150 mm |
Height | 50 mm 100 mm 150 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | J31/337 Cellular glass insulation J21/427 Cellular glass insulation J41/335 Angle fillets |
Specification data - Angle fillets
Material | Cellular glass. |
Size (minimum) | 450 x 50 mm (triangular in section).450 x 100 mm (triangular in section).450 x 150 mm (triangular in section). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Third party certifications
Third party certifications
BBA Agrément Certificate
15/5282 EshaFlex Total Roof Waterproofing System
EPD

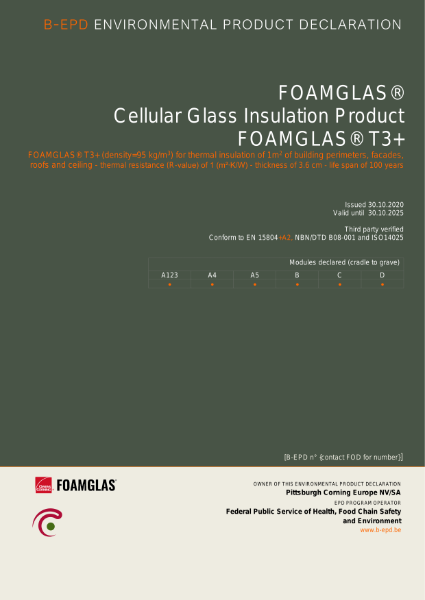

FOAMGLAS T3+ Environmental Product Declaration
Literature
FOAMGLAS Angle Fillets PDS
