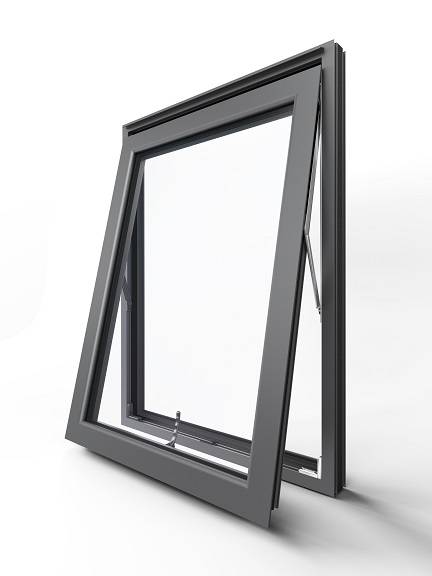

PURe® Casement Window

Verified by manufacturer 5 days ago

PURe Casement Window System (Curtain Wall Placement)

Senior Architectural Systems Ltd Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

Casement window with enhanced expanded polyurethane thermal barrier.

Jump to:
BOS
+44 (0)1709 772600 Website

Application

Particularly useful over sinks, worktops or appliances where it’s important to keep the area clear.

Description

Aluminium window which uses an innovative, enhanced thermal barrier manufactured from expanded polyurethane (PUR), allowing ultra-low U-values to be achieved. It can be either side hung or top hung to create an awning window.


With a generic Green Guide rating of ‘A’ for use in commercial projects and a life expectancy in excess of 40 years, the PURe® window range is 100% recyclable and has been designed to meet the Passivhaus standard. Tested to PAS24, BS 6375-1, BS 6375-2 and BS 6375-3.


Constructed using mitred corners, joined with crimped or mechanical cleats; alignment chevrons assist in clean, accurate mitres. Integral transoms and mullions are scribed around the outer frames and fixed with either screwports or shearblocks. A proprietary sealant is used on all metal joints. Opening window frames are designed to be inserted directly into the outer frames using friction stays.


Features and benefits:

  • High performance polyurethane thermal barrier providing U-values as low as 0.73 W/m²K when calculated as a domestic CEN Standard window.
  • Able to receive double or triple glazing up to 50 mm for maximum thermal and acoustic performance.
  • Available in an almost unlimited range of colours and finishes both inside and out.
  • Opening window frames are designed to be inserted directly into the outer frames using friction stays.
  • Choice of square, chamfered or mix and match beads.
  • Fully compatible with any Senior door and curtain wall systems.
  • Thermal barriers: Expanded polyurethane (PUR).
  • Gaskets: Manufactured in accordance with BS 3734.


U-Value:

Varies depending on type and size of window, average U-Values available are:

- Residential CEN standard (1230 x 1480 mm):

  • 28 mm double glazed unit: 1.23 W/m²K.
  • 44 mm triple glazed unit: 0.75 W/m²K.

- Commercial CEN standard (1230 x 1480 mm):

  • 28 mm double glazed unit: 1.18 W/m²K.
  • 44 mm triple glazed unit: 0.71 W/m²K.


Construction:

Constructed using mitred corners, joined with crimped or mechanical cleats; alignment chevrons assist in clean, accurate mitres. Integral transoms and mullions are scribed around the outer frames and fixed with either screw ports or shear blocks. A proprietary sealant is used on all metal joints in line with good practice. Opening window frames are designed to be inserted directly into the outer frames using butt hinged or tilt and turn mechanisms. Tested to BS 6375-1, BS 6375-2 and BS 6375-3:2009.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Guidance for specification option:

Aluminium alloy 6060, 6063 T6 to BS EN 755-9 or BS EN 12020-2.

Glass

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

H11/137 Windows/ opening lights

L10/330 Aluminium windows

L10/25 Aluminium windows

Product range

PURe® Window System

Specification data - Aluminium window units

Standard

To BS 6375-1, BS 6375-2 and BS 6375-3, BS 3734..

Third-party certification

Tested to PAS24,

Dimensions and configurations

As drawing.

Guidance for specification option:

Insert reference.

As schedule.

Guidance for specification option:

Insert reference.

Fixed light.

Open out.

Not applicable.

Side hung.

Top hung.

Manufacturer guidance

Typical size (w x h):

1500 x 1500 mm, consult manufacturer for information on larger sizes.

Product performance

-

Weather performance

-

Air permeability

600 Pa.

Guidance for specification option:

To BS 6375-1.

Watertightness

600 Pa.

Guidance for specification option:

To BS 6375-1.

Resistance to wind load

2400 Pa.

Guidance for specification option:

To BS 6375-1.

Safety

-

Security level

To PAS 24.

Guidance for specification option:

Security hardware required.

Thermal

-

Whole window U-value

-

Manufacturer guidance

U-value:

Dependent on glazing type, thickness and window size, consult manufacturer for information.

Frame

-

Finish as delivered

-

Coating

Anodized.

Guidance for specification option:

Insert colour requirements, 25 µm (minimum), satin or polished finish available.

Polyester powder coated.

Guidance for specification option:

Insert colour requirements, 40 µm standard and 60 µm available for marine environments.

Colour

-

Manufacturer guidance

Insert colour requirement, available in a limited range, consult manufacturer for information.

Glazing or infill

-

Requirements

-

Manufacturer guidance

Available in double glazed or triple glazed, 28–50 mm. Insert requirement.

Operation

-

Type

Manual.

Accessories

-

Manufacturer guidance

Insert requirements, consult manufacturer for information.

Beading

Chamfered.

Mix and match.

Square.

PlacementType

Curtain wall placement.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100%

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3

Third party certifications

UKAS

UKAS

ISO 45001

UKAS

UKAS

ISO 9001

UKAS

UKAS

ISO 14001

Literature

SAS PURe® Windows Range Brochure

SAS PURe® Windows Range Brochure

PURe® Casement Window Technical Datasheet

PURe® Casement Window Technical Datasheet

Introduction to Senior Architectural Systems Brochure

Introduction to Senior Architectural Systems Brochure

SAS BREEAM Brochure

SAS BREEAM Brochure

SAS CPD Seminars 2023

SAS CPD Seminars 2023

SAS Featured Projects Brochure

SAS Featured Projects Brochure

SAS Accommodation Brochure

SAS Accommodation Brochure

SAS Commercial Brochure

SAS Commercial Brochure

SAS Education Brochure

SAS Education Brochure

Case studies

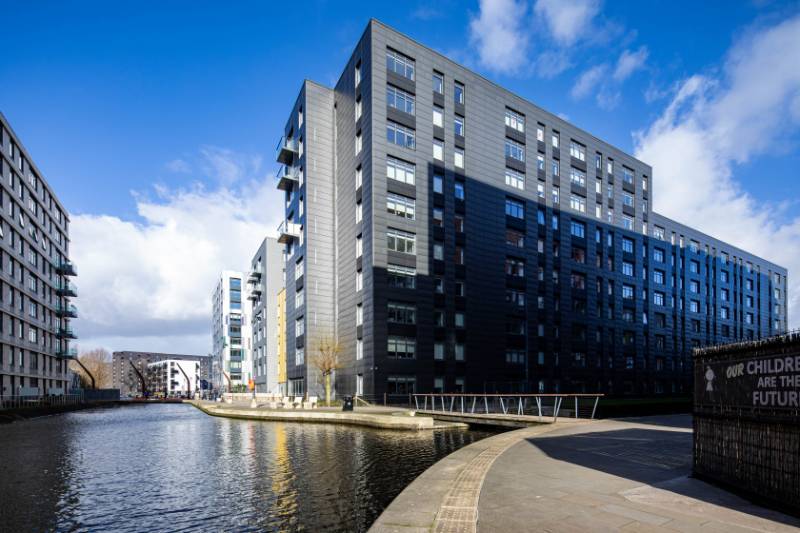

Lampwick Quay, Manchester

Lampwick Quay, Manchester

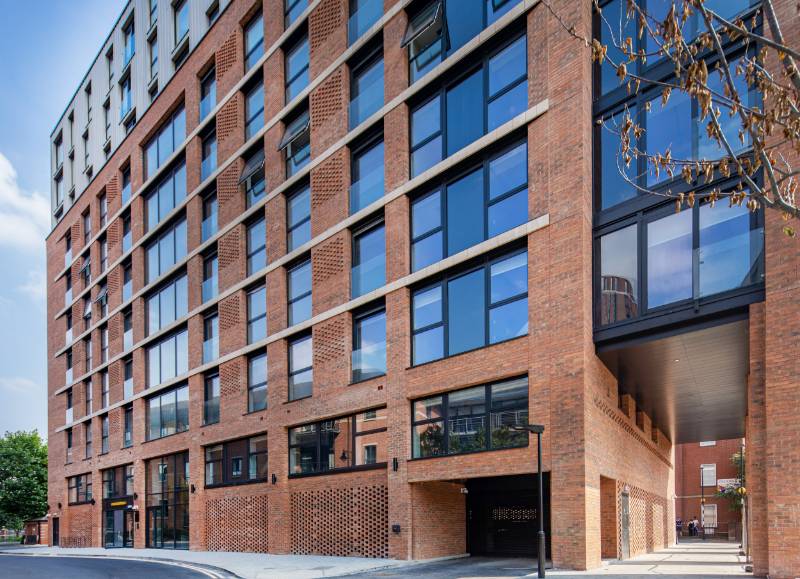

Oaklands Rise, London

Oaklands Rise, London

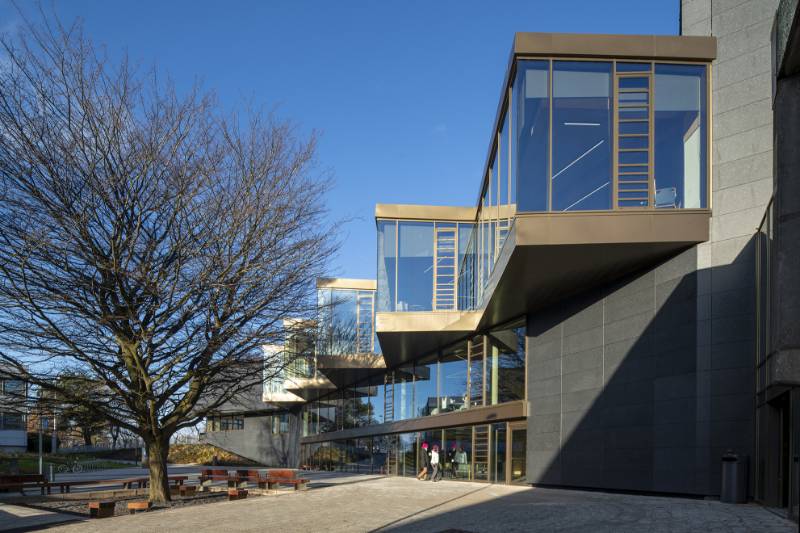

Campus Central, University of Stirling

Campus Central, University of Stirling

Mustard Wharf, Leeds

Mustard Wharf, Leeds

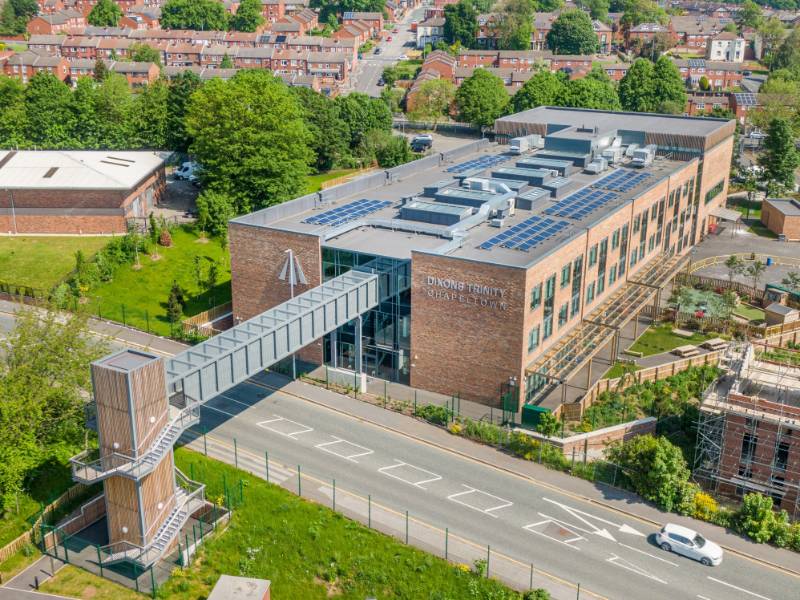

Dixons Trinity Academy, Leeds
