Pureglaze™ - Concealed Frame Glazing Products
Verified by manufacturer 2 months ago

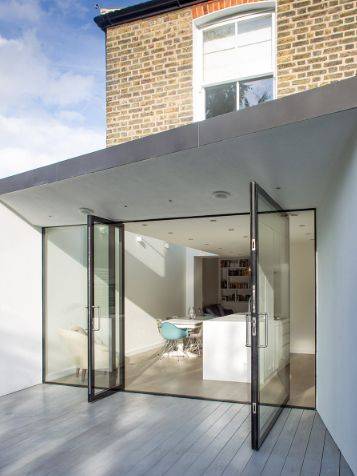

Pureglaze - pivot door
Pureglaze - pivot door
PAS 24
Certificate type
Range of glazing products which features completely uninterrupted glass, as the frame is sandwiched between the panes themselves. Available in a range of designs.
Application
Glazing, including doors, windows and panels. For use as partitions, ventilation, access and even to control the level of water in a swimming pool (guillotine model).
Description
Available in a range of designs, this is a range of glazing products which features completely uninterrupted glass, as the frame is sandwiched between the panes themselves.
Features and benefits:
- The framework is contained within the glass itself, like a window within a window.
- Available as a sliding or pivot door, and even a window within a window.
- Offers seamless luxury to any home.
- Once the framework is set within the triple glazed pane, a subtle and stylish ceramic band is painted around the panel, concealing the frame.
General information
Color | Clear Other Guidance for specification option: Any RAL (printed perimeter bands). |
Finish | Smooth |
Material | Aluminium Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L10/560 Glazed screen system L10/330 Aluminium windows L20/480 Doorsets L10/25 Aluminium windows L20/55 Doorsets |
Specification data - Partition panels
Unit size | |
Thickness | Manufacturer's standard. |
Partition height (nominal) | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Width (nominal) | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Framing, fixing points and joints | Thermally broken 48 mm aluminium framing profile, 38 mm high, RAL 9005 Black.Thermally broken 48 mm aluminium framing profile, 51 mm high, RAL 9005 Black.Manufacturer guidanceAluminium profiles bonded into a recess created within the outer and inner panes. PVC clip-ons are also black as standard. |
Glazed panels | |
Type | |
Door arrangement | |
Type | Doorset system.Guidance for specification option: Please contact Cantifix for details. |
Other features | 57 mm printed perimeter bands, colour.Guidance for specification option: Insert colour requirements. 75 mm printed perimeter bands, colour.Guidance for specification option: Insert colour requirements. |
Options | None. Low iron glass on non-coated panes. Solar control (Guardian SN 70) coating. Laminate pane for safety and/or security. Protective aluminium angles to all glass edges. |
Frame colour/ finish | Guidance for specification option: Powder coated; insert colour requirements. |
Air permeability | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Watertightness | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Thermal performance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Light Transmittance (Tv) | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Security | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Material | Aluminium Glass |
Third party certifications
PAS 24
Pureglaze - pass 24
Literature
L12 - Pureglaze™ by Cantifix frame-free pivot and sliding doors and windows
