Push Tap
Verified by manufacturer 1 year ago
260 Push Button Self Closing Tap
260 Push Button Self Closing Tap

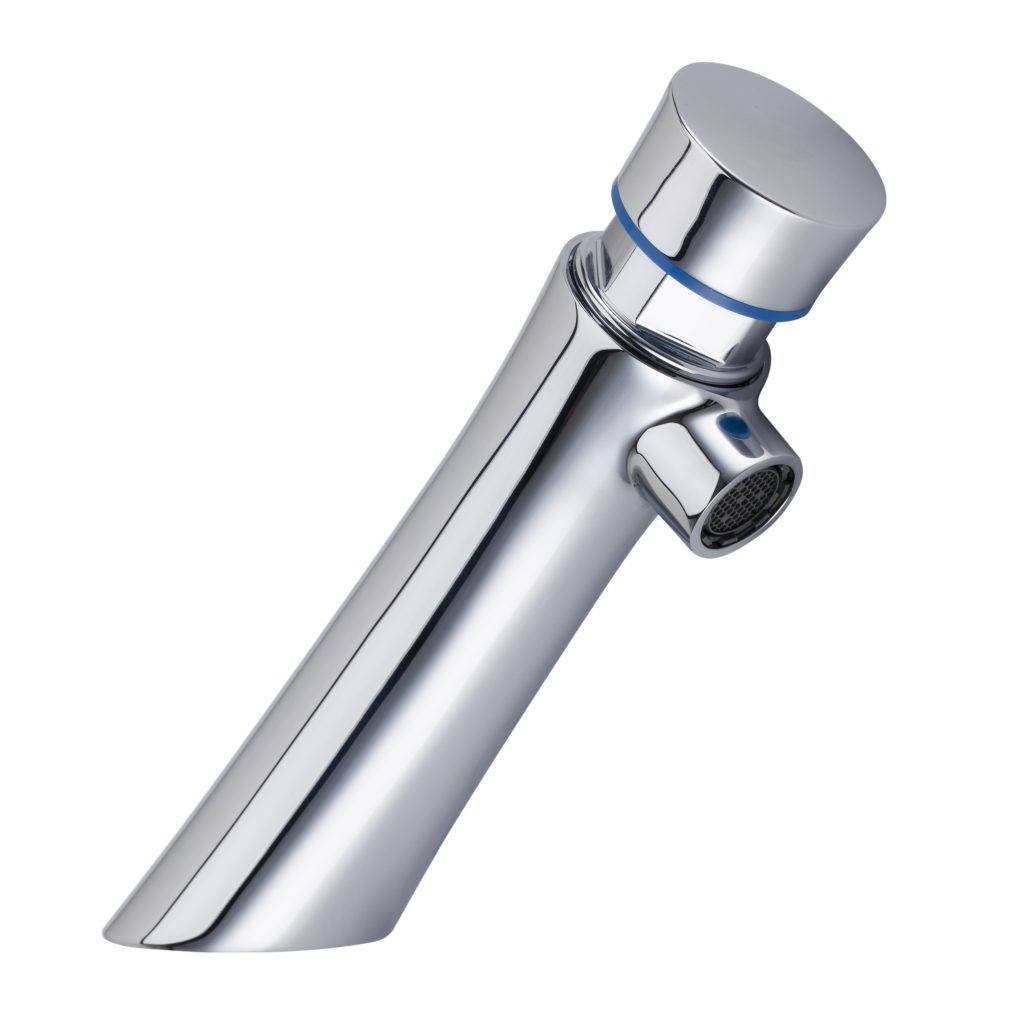

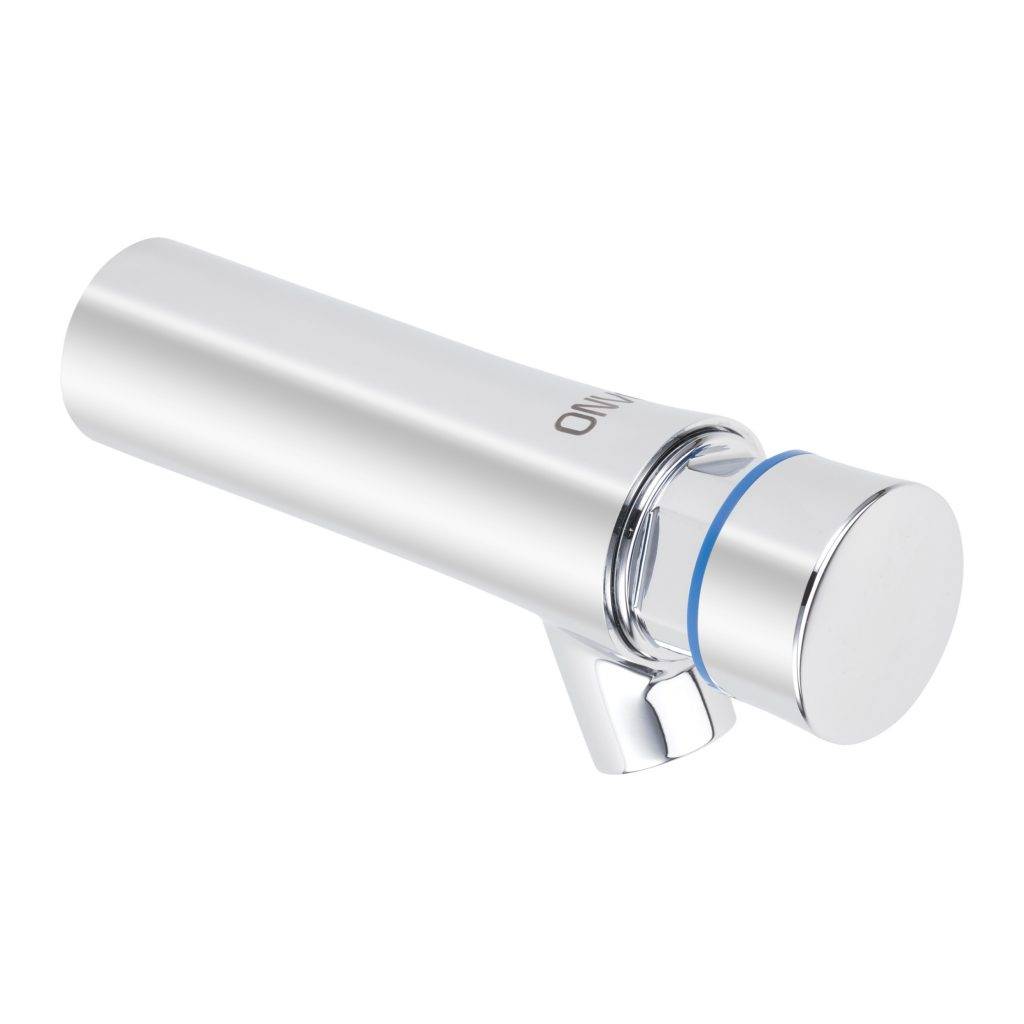

Wall mounted and deck mounted self-closing push tap.
Application
Suitable for any washroom for all types of projects.
Description
Wall mounted and deck mounted self-closing push tap.
Features and benefits:
- Specifically designed to eliminate splashing when used with wash troughs.
- Considered to be extremely functional and robust.
- Can suit any washroom due to the minimalist design and choice of spout size.
- Wall mounted self-closing push tap is the non-concussive option for the Latherwash 2W Washtrough.
- Deck mounted self-closing push tap is the non-concussive option for Washtroughs with a tap deck.
General information
Color | Grey Silver |
Finish | Chrome |
Material | Metal |
Length | 100 mm 132 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N11/350 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Specification data - Washbasin taps
Approvals | Water Regulations Advisory Scheme (WRAS) and BREEAM approved, Contributes towards LEED credits, CE marked. |
Form | Wall-mounted tap. |
Materials | |
Finish and colour | Chrome-plated, grey.Chrome-plated, silver. |
Pressure | 0.5–8 bar dynamic pressure (7.2 - 116 psi). Manufacturer guidanceMin/Max operations pressure. |
Flowrate | 3 litres per minute. |
Open time | 7–15 s. Manufacturer guidanceRun time. |
Hole cutouts | 21 mm (minimum). Guidance for specification option: Countertop cutout. Maximum countertop thickness: 25 mm. |
Water supply | Require at least 0.5 bar dynamic water pressure to operate effectively. |
Access | Fixings and isolation valves must be accessible at for initial installation and commissioning. Guidance for specification option: And for ongoing and routine maintenance. Manufacturer guidanceAccess requirements. |
Length | 132 mm. Guidance for specification option: Wall mounted. |
Weight | 1.05 kg. |
Power supply | Push operated. |
Accessories | 480 Soap Dispenser. Guidance for specification option: Complement the 260 Push Button Self Closing Tap. Not required. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
