Application

Suitable for three dimensional alignments and most suitable for floor tile use.

Description

Available in five different depths and a host of colours.


Features and benefits:

  • It features a quadrant face.
  • Good for three dimensional alignment.
  • Overhang lips to better butt against the cushion edge of the ceramic tile.
  • A second upright to support the face making it the most suitable trim for floor tile use.


General information

Color

White

Brown

Ivory

Grey

Orange

Show more

Finish

Smooth

Material

PVC

Length

2500 mm

Height

6 mm

7 mm

8 mm

10 mm

12 mm

Uniclass

Pr_35_90_31_32 Floor edging stripsPrimary

CAWS

M40/10 Natural stone covering to

M40/110 Tiling to

M40/115 Natural stone covering to

M40/12 Mosaic to

M40/120 Mosaic to

M40/5 Tiling to

M41/110 Terrazzo tiling

M41/120 In situ terrazzo

M41/130 Precast terrazzo

M41/140 Marble tiling

Product range

PVC Tile Trims

Specification data - Floor edging strips

Material

PVC.

Colour where exposed to view

White 01.

Caramel 09.

Ivory 10.

Grey 11.

Peach 12.

Buff 14.

Black 16.

Brown 20.

Beige 25.

Cream 26.

Soft cream 32.

Soft grey 34.

Brown marble 62.

Grey marble 63.

White marble 64.

Toffee swirl 70.

Roman marble 72.

Matt silver 81.

Bright silver 91.

Sky blue 109.

Glacier white 0111

Barley marble 116.

Cross section size

2500 x 11 x 10 mm.

Guidance for specification option:

(L x W x D).

Corners

PDM603.

Guidance for specification option:

Single x 6 mm corner pieces.

PDP604.

Guidance for specification option:

Single x 6 mm corner pieces.

PDL803.

Guidance for specification option:

Single x 8 mm corner pieces.

PDP804.

Guidance for specification option:

Single x 8 mm corner pieces.

PDX103.

Guidance for specification option:

Single x 10 mm corner pieces.

Show more

Literature

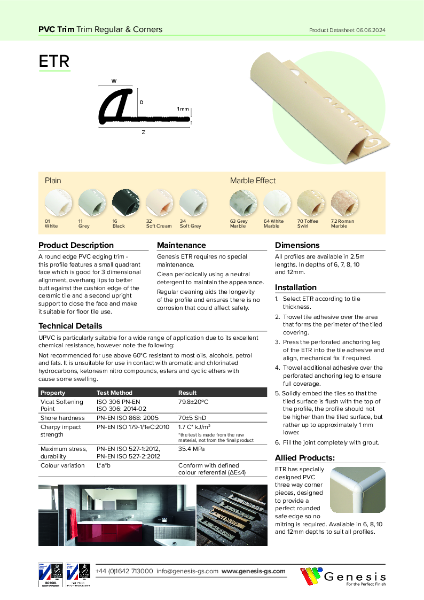

ETR Datasheet

ETR Datasheet
