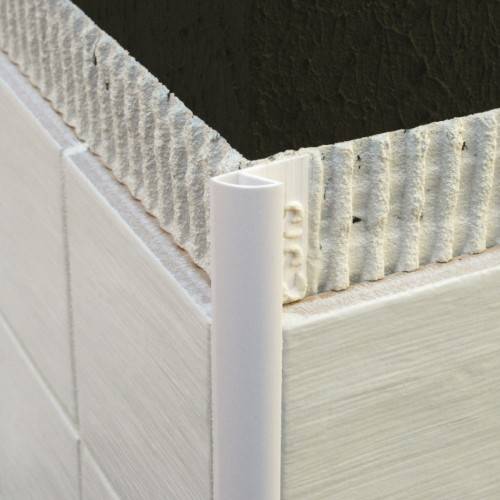

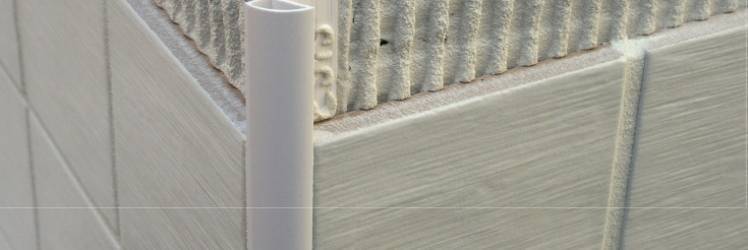

P.V.C Trim Regular - Quadrant Face Profile
Verified by manufacturer 6 months ago
ETR108
ETR108
PVC tile trim.
Application
Suitable for three dimensional alignments and most suitable for floor tile use.
Description
Available in five different depths and a host of colours.
Features and benefits:
- It features a quadrant face.
- Good for three dimensional alignment.
- Overhang lips to better butt against the cushion edge of the ceramic tile.
- A second upright to support the face making it the most suitable trim for floor tile use.
General information
Color | White Brown Ivory Grey Orange |
Finish | Smooth |
Material | PVC |
Length | 2500 mm |
Height | 6 mm 7 mm 8 mm 10 mm 12 mm |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/12 Mosaic to M40/120 Mosaic to M40/5 Tiling to M41/110 Terrazzo tiling M41/120 In situ terrazzo M41/130 Precast terrazzo M41/140 Marble tiling |
Product range |
Specification data - Floor edging strips
Material | PVC. |
Colour where exposed to view | White 01.Caramel 09.Ivory 10.Grey 11.Peach 12.Buff 14.Black 16.Brown 20.Beige 25.Cream 26.Soft cream 32.Soft grey 34.Brown marble 62.Grey marble 63.White marble 64.Toffee swirl 70.Roman marble 72.Matt silver 81.Bright silver 91.Sky blue 109.Glacier white 0111Barley marble 116. |
Cross section size | 2500 x 11 x 10 mm.Guidance for specification option: (L x W x D). |
Corners | PDM603. Guidance for specification option: Single x 6 mm corner pieces. PDP604. Guidance for specification option: Single x 6 mm corner pieces. PDL803. Guidance for specification option: Single x 8 mm corner pieces. PDP804. Guidance for specification option: Single x 8 mm corner pieces. PDX103. Guidance for specification option: Single x 10 mm corner pieces. |
Literature
ETR Datasheet
