D92PBC0N0B

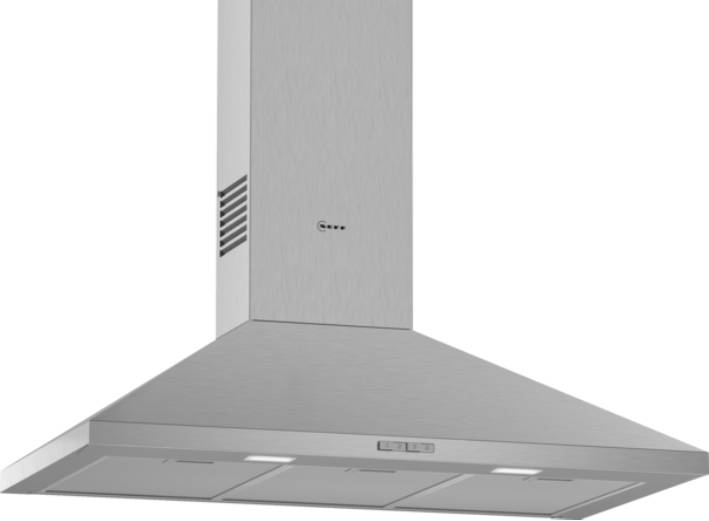

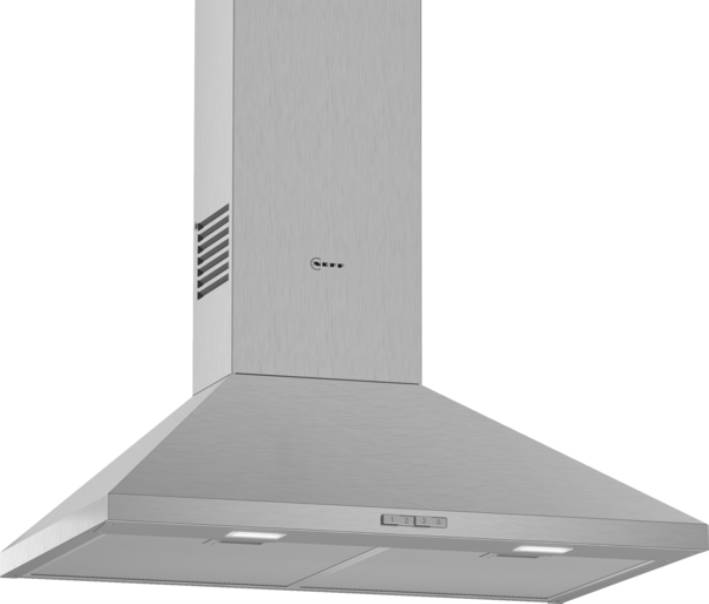

N 30, wall-mounted cooker hood, 60/75/90 cm, stainless steel.
For domestic applications.
N 30, wall-mounted cooker hood, 60/75/90 cm, stainless steel.
Pyramid design, three-speed, LED lights. Optional standard recirculation kit: Z5138X5.
Features and benefits:
Color | Silver |
Material | Stainless steel |
Shape | Other |
Length | 500 mm |
Width | 900 mm 750 mm 600 mm |
Height | 799 mm 975 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/360 Appliances N11/40 Appliances |
Operation | Extraction.Recirculation.Guidance for specification option: For recirculated extraction recirculating kit (accessory) needed. |
Installation | Wall-mounted. |
Material and finish | Stainless steel. |
Dimensions | |
Width (maximum) | 900 mm. |
Depth (maximum) | 500 mm. |
Height | Adjustable 799–975 mm. |
Capacity (minimum) | 365 m³/h. |
Controls | Push button control, three-speed. |
Features | Two 1.5 W LEDs, three metal grease filter cassettes. |
Rating | 100 W. |
Electrical supply | 220–240 V, 50/60 Hz. |
Noise level at 1 m (maximum) | 65 dB(A). |
Accessories | Not required.Z5138X1 Standard odor filter (replacement).Z5138X5 Standard recirculation kit.Z5861N0 Back panel stainless steel.Z5895N0 Stainless steel back panel 900 mm.Z5904N0 Chimney extension 500 mm.Z5904N5 Chimney extension 750 mm. |
Energy rating | D. |
Material | Stainless steel |
