Pyrodor Fireroll - Fire Shutter

Verified by manufacturer 2 months ago

Pyrodor Fireroll FD - Industrial Motor

Tekta UK Variant:
Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • CHAS

    CHAS

    Certificate type

The Pyrodor Fireroll is a fire shutter offering fire integrity for both internal compartmentation and external openings, in line with current fire standards.

Jump to:
+ (44) 0330 7000 333 Website

Application

  • Fire partitions.
  • Food factories.
  • Hi-tech manufacturing.
  • Laboratories.
  • Warehouses.

Description

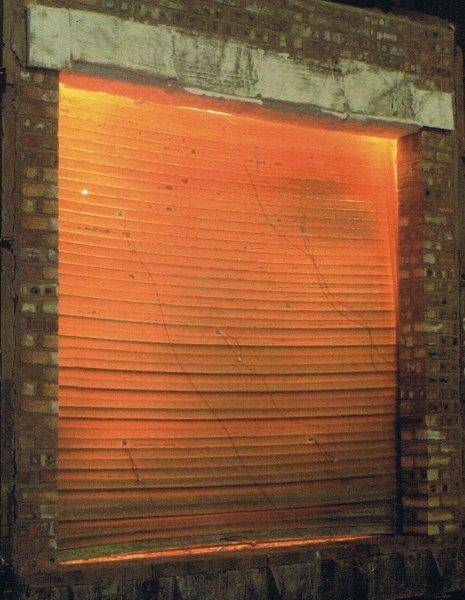

The curtain is constructed from 75 mm curved galvanized steel laths and a T-section bottom rail. The shutters are tested to provide 60, 120 and 240 minutes of fire integrity to both solid and flexible structures, in accordance with BS EN 16034-1.


Supplied with key switch and automatic fire alarm activation. Upgrade options include an audio-visual control panel with timed delay and staged closing. Local heat and smoke detectors can also be utilized.


The standard finish is galvanized steel however powder-coating to a standard RAL colour is also available. Shutters can also be supplied in a stainless steel finish for particularly demanding environments such as food factories.


The Pyrodor Fireroll FD is an industrial fire shutter with a robust industrial motor for use on larger doorways.

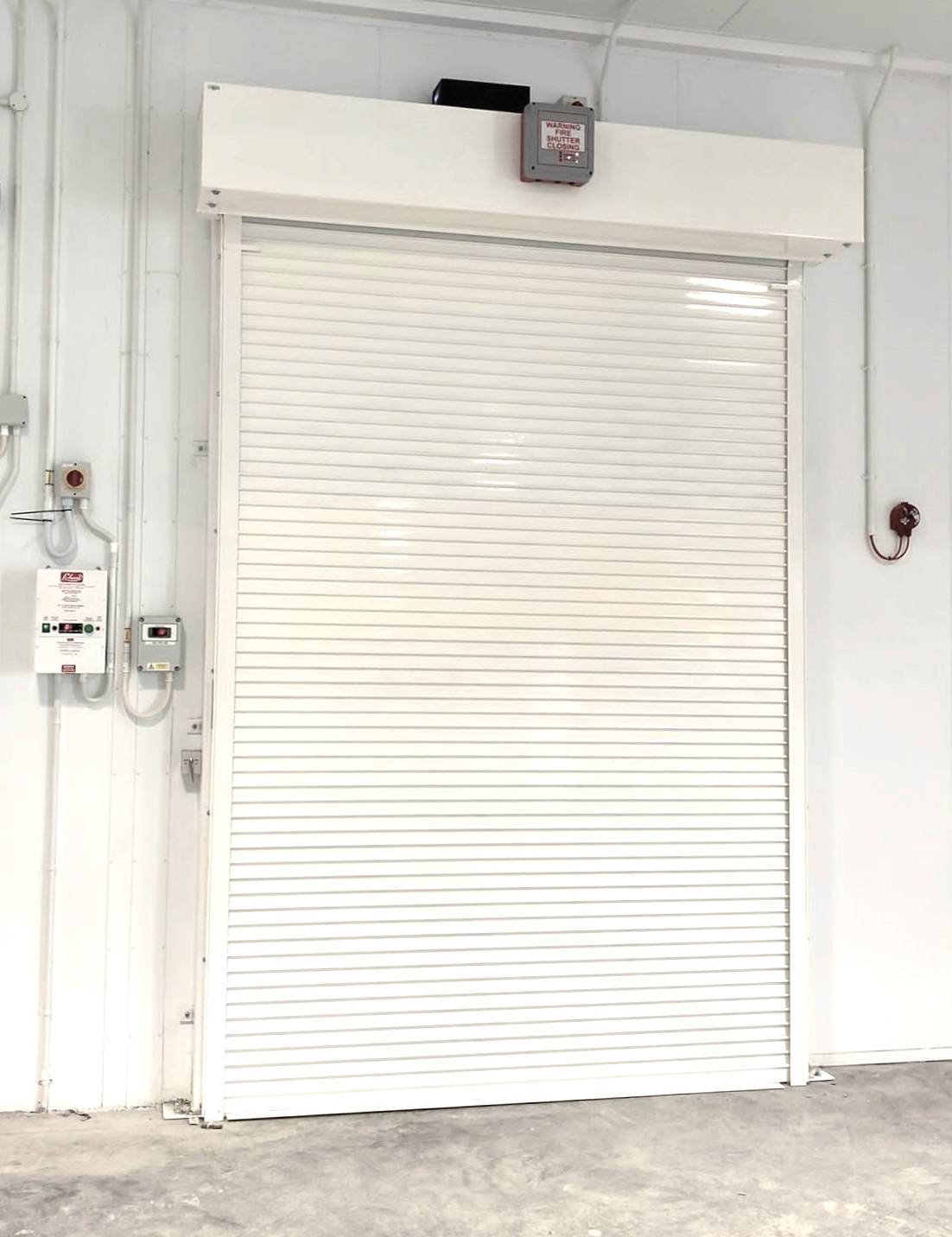

The Pyrodor Fireroll FS is a compact fire shutter with a compact tubular motor for use on smaller doorways.


Features and benefits:

  • Several control options including audio-visual panels.
  • Extensive fire testing with multiple wall types.
  • Robust industrial motor.
  • Compact design for internal use (Fireroll FS).

General information

Color

Grey

Other

Guidance for specification option:

Any RAL colour.

Finish

Galvanized

Powder-coated

Brushed

Material

Stainless steel

Guidance for specification option:

Cables passing through the slats every 400 mm and vertical guides in galvanized steel.

Steel

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_84_30 Fire-resisting roller shuttersPrimary

CAWS

L20/630 Hatches

L20/610 Roller shutters/ curtains

Specification data - Fire-resisting roller shutters

Standard

Certified to EN 1634-1, EN 16034-2014, EXAP to BS 15269-10.

Opening sizes

-

Manufacturer guidance

Size (w x h): 8000 x 6900 mm, maximum. Insert requirements.

Format

Vertically operated fire roller curtain.

Performance

-

Fire performance

-

Fire resistance

60 minutes.

Guidance for specification option:

Standard.

120 minutes.

Guidance for specification option:

Optional.

240 minutes.

Guidance for specification option:

Optional.

Frame and guides

-

Material

Galvanized steel.

Guidance for specification option:

Standard.

Stainless steel.

Guidance for specification option:

Optional.

Finish

Galvanized.

Guidance for specification option:

Standard.

Powder coated.

Guidance for specification option:

Optional. Powder-coated in a standard RAL classic colour.

Brushed.

Guidance for specification option:

Optional. Brushed stainless steel finish.

Colour

Guidance for specification option:

Standard RAL classic colours. Insert requirements.

Shutter curtain

-

Lath material

Galvanized steel.

Stainless steel.

Profile

75 mm curved galvanized steel laths.

Finish and colour

Galvanized.

Guidance for specification option:

Standard.

Powder-coated, RAL.

Guidance for specification option:

Optional. Powder-coated in a standard RAL classic colour.

Brushed.

Guidance for specification option:

Optional. Brushed stainless steel finish.

Power supply

240 V, single phase.

Guidance for specification option:

Standard.

415V, three phase.

Guidance for specification option:

Optional.

Activation

Fusible Link linked to Fire Alarm.

Guidance for specification option:

Standard. To allow automatic closure, complete with a key switch.

Audio-visual panel with time delay.

Guidance for specification option:

Including audible and visual warning that the shutter is closing.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Stainless steel

Guidance for specification option:

Cables passing through the slats every 400 mm and vertical guides in galvanized steel.

Steel

Third party certifications

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Safe Contractor Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

CHAS

CHAS

CHAS Certificate

Literature

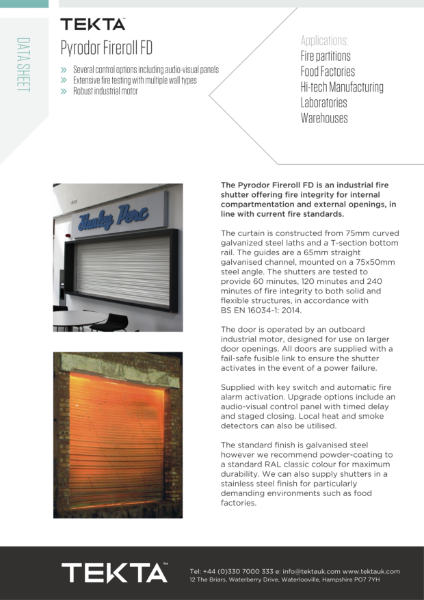

Pyrodor Fireroll FD Datasheet

Pyrodor Fireroll FD Datasheet

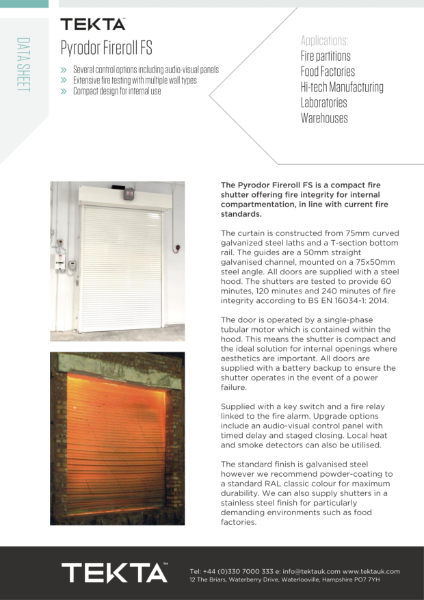

Pyrodor Fireroll FS Datasheet

Pyrodor Fireroll FS Datasheet
