Pyroguard Firesafe E, EW - Single Pane Glass

Name: Pyroguard Firesafe E, EW - Single Pane Glass
Brand: Pyroguard UK Ltd
SKU: bHpUFATLBp4wqY3faDdXVH

Verified by manufacturer 6 months ago

T-E30/6

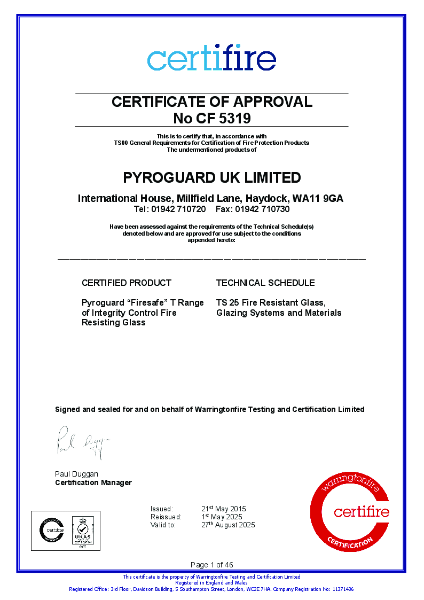

Third party certifications:

Range of toughened monolithic (single pane) glass providing a fire-rated performance of integrity only.

Jump to:

Application

For use in fire rated glazing applications.

Range of toughened monolithic glass providing a fire rated performance of integrity only.

Features and benefits:

Fire rated performance of E30-E120 and EW30-EW60.
Monolithic sheets range from 6–12 mm in thickness.
Can be made into IGUs and laminated products where the thicknesses are dependent upon compositions.
Acoustic reduction ranges from 31–34 dB for the standard Pyroguard T-E products. Acoustic performances for IGU and laminated versions are dependent upon composition.
Light transmission ranges from 85–88% for the standard Pyroguard T-E products. Light transmissions for IGU and laminated versions are dependent upon composition.
Maximum dimensions of 2400 x 4000 mm.
Fire performance classified to BS EN 13501-2.
Impact resistance classified to BS EN 12600.

Color	Clear Other Guidance for specification option: Transparent
Finish	Other Manufacturer guidance Product is glossy as standard however, other finishes are available.
Material	Glass Guidance for specification option: Monolithic glass.
Shape	Rectangle Square
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_25_71_33_88 Thermally toughened glass sheetsPrimary
CAWS	H10/115 Patent glazing H11/110 Curtain walling L10/20 Steel windows L10/310 Steel windows L10/33 Proprietary windows L10/390 Proprietary windows L10/56 Glazed screen system L10/560 Glazed screen system L40/505 Fire-resistant tape/ Strip glazing L40/510 Fire-resistant channel glazing – solid section channel L40/515 Fire-resistant channel glazing – plastics/ elastomeric channel L40/65 Fire-resistant tape/ Strip glazing L40/75 Fire-resistant channel glazing – solid section channel L40/80 Fire-resistant channel glazing – plastics/ elastomeric channel

Third-party certification	CE certified, UKCA certified.
Thickness	6 mm. Guidance for specification option: -0.5/+0.5 tolerance.
Body colour	Clear.
Performance requirements	-
Fire performance	To BS EN 13501-2, 30/0.
Light	To EN 410, 90%.
Impact resistance	To BS EN 12600, 1C1.

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe Manufacturer guidance Manufactured in UK and in France
