Pyroguard Rapide EW - Laminated Glass with Resin Interlayers
Verified by manufacturer 27 days ago
EW30 Impact, 7 mm
EW30 Impact, 7 mm

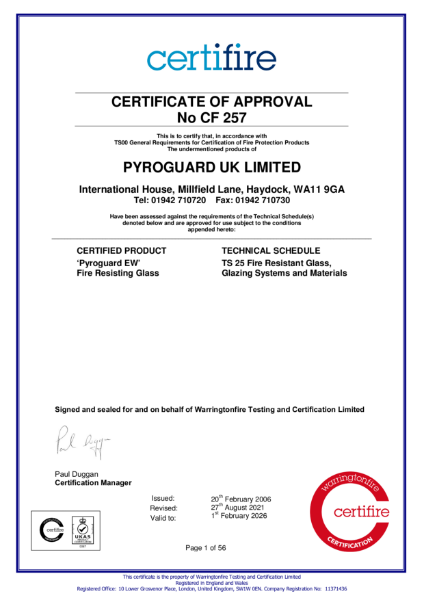

Certifire Certificate
Certificate type
ISO 9001 Quality Management
Certificate type
EPD
Certificate type
Range of cuttable laminated glass products with resin interlayers, providing integrity and partial thermal insulation.
Application
For use in glazing applications.
Description
Range of cuttable laminated glass products with resin interlayers, providing integrity and partial thermal insulation.
Features and benefits:
- Fire rated performances range from 30/0 to 60/0.
- Two standard thicknesses of 7 and 11 mm.
- Can be made into IGUs with the thicknesses dependent upon compositions, excluding FD60.
- Light transmission ranges from 87% for the 7 mm products to 85% for the 11 mm products – dependent upon construction for IGUs.
- Sound reduction ranges from 33 dB for the 7 mm products, to 35 dB for the 11 mm products – dependent upon construction for IGUs.
- Can be used in internal and external applications.
- Fire performance classified to BS EN 13501-2.
- Impact resistance classified to BS EN 12600.
General information
Color | Clear |
Finish | Other Manufacturer guidanceStandard finish is glossy however, other finishes are availble such as Satin |
Material | Glass |
Shape | Rectangle |
Length | 2780 mm |
Width | 1570 mm |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/25 Wood panelled doors H10/115 Patent glazing L40/510 Fire-resistant channel glazing – solid section channel L10/45 Rooflights L10/33 Proprietary windows L10/20 Steel windows L10/15 Wood windows L10/10 Wood windows L20/20 Wood flush doors L20/410 Wood doorsets L20/250 Wood panelled doors L20/480 Doorsets L10/560 Glazed screen system L10/510 Glazed wood screens L10/480 Roof windows L10/460 Rooflights L10/390 Proprietary windows L10/310 Steel windows L10/210 Wood windows L40/65 Fire-resistant tape/ Strip glazing L40/75 Fire-resistant channel glazing – solid section channel L40/515 Fire-resistant channel glazing – plastics/ elastomeric channel L40/80 Fire-resistant channel glazing – plastics/ elastomeric channel L20/280 Doors L20/270 Wood doors L20/45 Doors L20/420 Wood doorsets L20/30 Wood doors H11/110 Curtain walling L20/230 Wood flush doors L20/55 Doorsets L40/505 Fire-resistant tape/ Strip glazing |
Specification data - Laminated glass sheets
Laminate glass type | Fire and safety. |
Thickness | 7 mm. |
Outer leaf | Laminated glass. |
Inner leaf | Laminated glass. |
Interlayer to glass leaves | Resin. |
Body colour | Clear. |
Performance requirements | |
Fire resistance | |
Integrity | To BS EN 13501-2, E 30 minutes. |
Light | Transmittance (minimum) 0.90. |
Impact resistance | To BS EN 12600, 2B2. |
AttackGuard | Not required. Required. |
Sound reduction | 33 dB (minimum). |
Sheet size | 1580 x 2780 mm. |
Weight | 17 kg/m². |
TemperatureRange | -20/+100°C. |
Sustainability data
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Glass |
Third party certifications
Third party certifications
Case studies

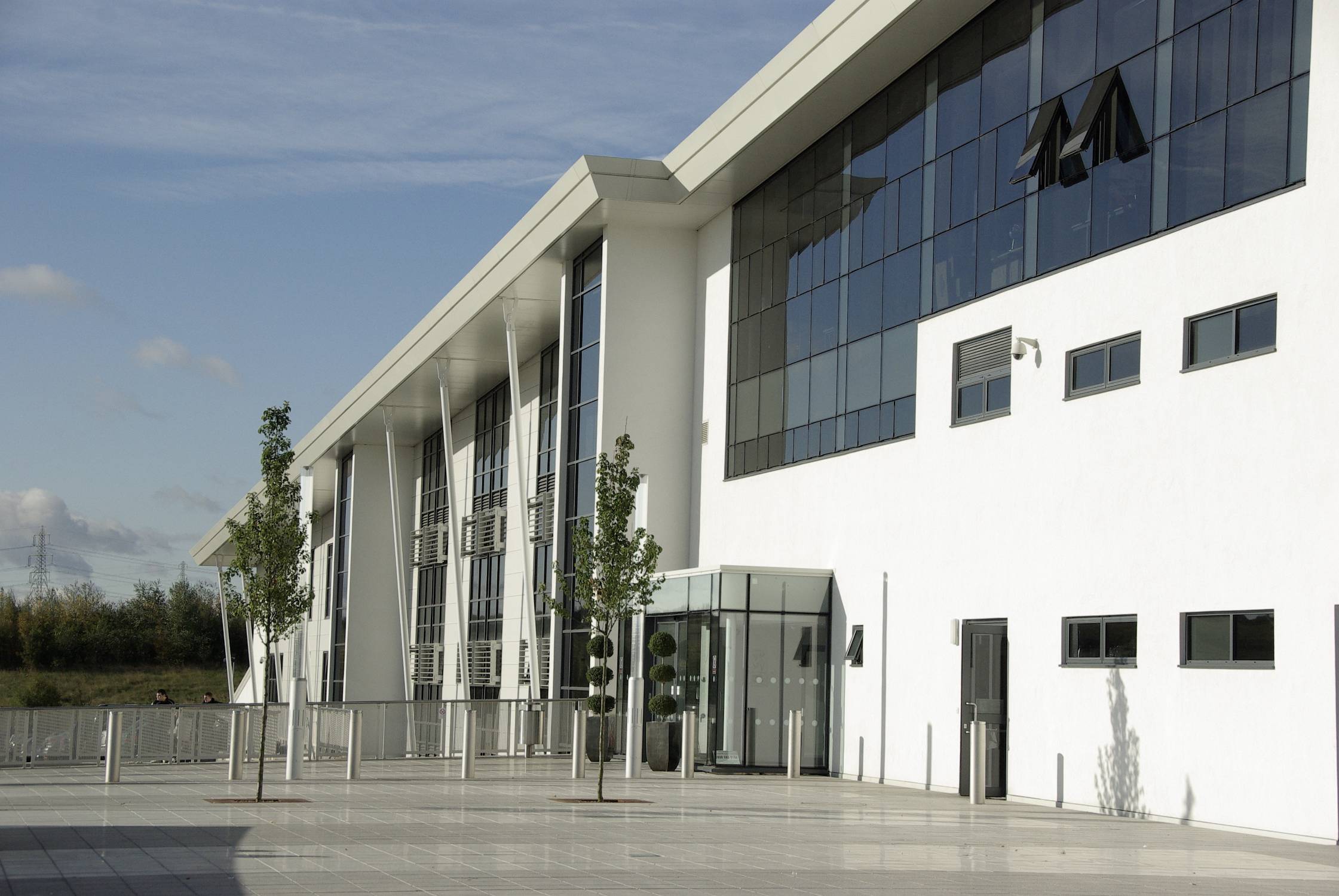

Marr College, Troon, Scotland - Pyroguard Firesafe, Rapide Plus & Protect
