Q-lights Linear Light Balustrade - LED light strips

Verified by manufacturer 3 months ago

MOD.0060, indoor use (IP20)

Q-railing Variant:

LED lighting options for handrails, cap rails and base shoe cladding.

Jump to:
+44 (0)1782 711676 Website

Application

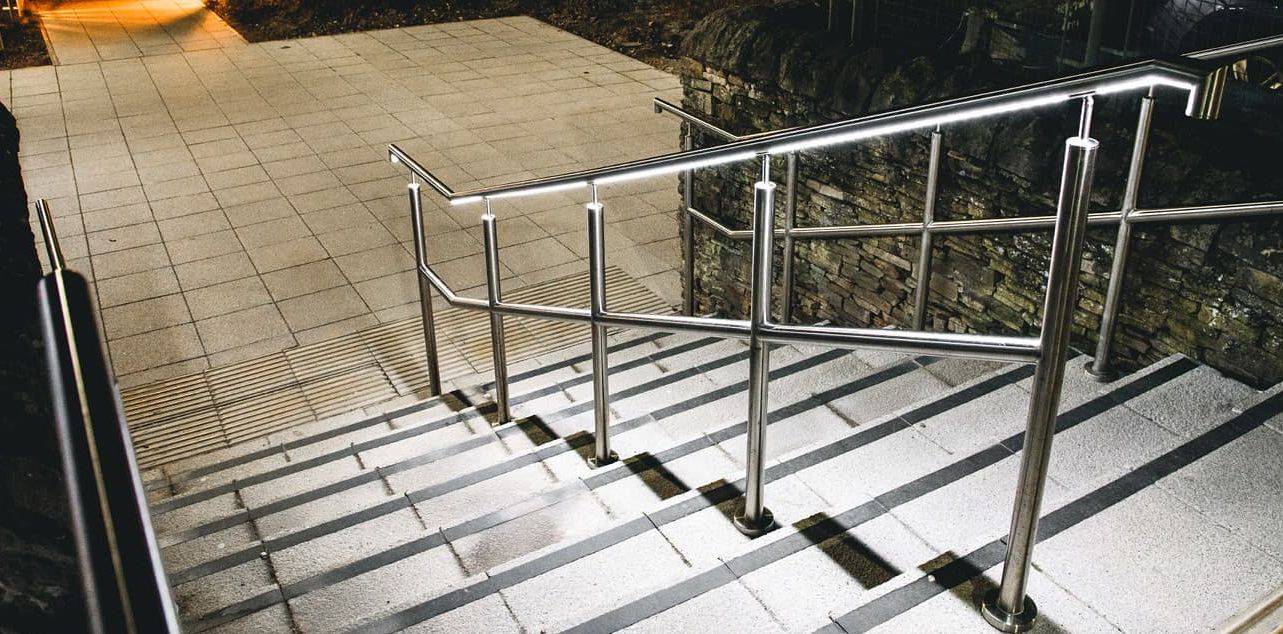

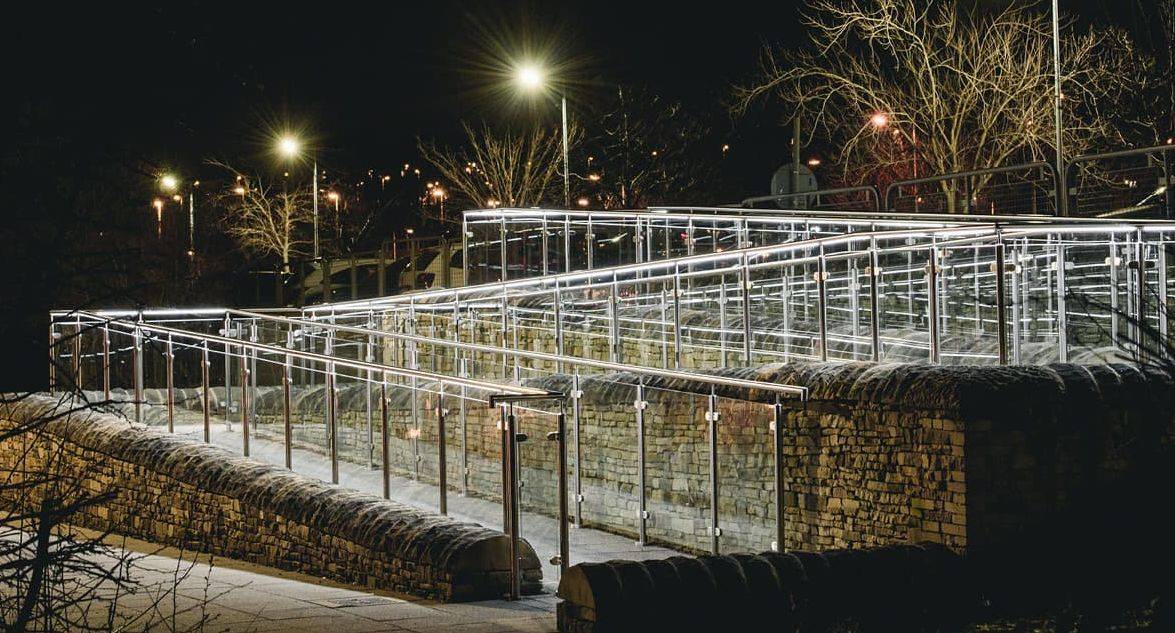

Suitable for light to medium indoor (IP20 and IP66) and outdoor (IP66) use for stairs, balustrades and wall railings.

The system is designed to be compatible for fixing to walls or as an offset handrail that is fixed through holes in the glass.

Description

LED lighting options for handrails, cap rails and base shoe cladding. Designed to complement the existing range of Q-railing high-quality architectural fittings.


All handrails have pre-made accessories, including 90° corners, adjustable angles and in-line connectors, which are compatible with Q-railing fittings.


Features and benefits:

  • LED strips for warm or cold white light and RGB-coloured light.
  • High-grade plastic profiles cover the LED strips and prevent dazzle (transparent or frosted).
  • Adjustable brightness.
  • One-click installation; the LED strips are easy to install and hidden from view.
  • Pre-wired – no cables visible.
  • Glass thickness: 15–21.52 mm.
  • Adapter system that can turn a standard cap rail into a lighted handrail – combinable with nearly every Q-railing handrail bracket.
  • Specially designed Linear Light cap rail that allows adjustment of an LED strip so that it shines either in front of or behind the glass.
  • Aluminium cladding with a stainless steel effect for the Easy Glass Pro top mount base shoe.
  • Suitable for retrofitting as part of a renovation.

General information

Color

White

Guidance for specification option:

Warm or cold.

Other

Finish

Other

Material

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_70_70_48_71 Recessed luminairesPrimary

CAWS

L30/70 Proprietary handrails

L30/580 Proprietary handrails

Specification data - Recessed luminaires

Luminaire description

LED strips for setting into stairs, balustrades or wall railings to create ambient/ safety lighting.

Classification

-

Ingress protection (minimum)

IP20.

Circumstances of use

Normal.

Impact protection (minimum)

IK10.

Controlgear position

Remote within separate enclosure.

Nominal voltage

24 V d.c.

LED luminaires

-

Wattage

12 or 41.4 W, dependent on colour temperature specified.

Guidance for specification option:

See Colour temperature guidance.

Colour temperature

2700 K.

Guidance for specification option:

Warm white.

Size: 6000 x 8 x 1.7 mm.

Light beam: 280 lm/m (12 W).

6500 K.

Guidance for specification option:

Cold white.

Size: 9939 x 1.7 x 8 mm.

Light beam: 340 lm/m (41.4 W).

Coloured LED strips.

Guidance for specification option:

On request; consult manufacturer for details.

Accessories

None.

Black cable, 1 mm².

Guidance for specification option:

Length: 100 m.

Red cable 1 mm².

Guidance for specification option:

Length: 100 m.

LED strip connector, IP20.

Guidance for specification option:

Indoor use.

Sleeve for LED strip connector.

Guidance for specification option:

For use with MOD 0062 (outdoor).

LED strip connection cable, IP20.

Guidance for specification option:

Indoor use, for use with MOD 0066.

LED strip connection cable (transformer), IP20.

Guidance for specification option:

LED strip connection cable for LED strip mod 0064 (indoor).

LED strip connection cable (transformer), IP54.

Guidance for specification option:

Plastic LED strip cover to prevent dazzle. 24 x 18 x 2500 mm.

LED cover profile, clear.

Guidance for specification option:

Plastic LED strip cover to prevent dazzle. 24 x 18 x 2500 mm.

LED cover profile, frosted.

Guidance for specification option:

Plastic LED strip cover to prevent dazzle. 24 x 18 x 2500 mm.

Product Reference

MOD 0060: 2700 K, warm white, IP20

Guidance for specification option:

Indoor use.

Size: 6000 x 8 x 1.7 mm.

Light beam: 280 lm/m (12 W).

MOD 0061: 2700 K, warm white, IP20

Guidance for specification option:

Indoor use.

Size: 6000 x 8 x 1.5 mm.

Light beam: 600 lm/m (52 W).

MOD 0062: 3000 K, warm white, IP66

Guidance for specification option:

Outdoor use.

Size: 6051 x 4 x 11 mm.

Light beam: 250 lm/m (25.2 W).

MOD 0063: 3000 K, warm white, IP66

Guidance for specification option:

Outdoor use.

Size: 6000 x 5.5 x 11 mm.

Light beam: 570 lm/m (52 W).

MOD 0070: 2700 K, warm white, IP00

Guidance for specification option:

Indoor use.

Size: 5000 x 1.5 x 8 mm.

Light beam: 310 lm/m (12.5 W).

Show more

Manufacturer guidance

Consult manufacturer for coloured light options.

Adapters

MOD 0780 Adapter for LED girder section, 42.4 mm.

MOD 0780 Adapter for LED girder section, 48.4 mm.

MOD 0781 Cap rail adapter for handrail bracket, 42.4 mm.

MOD 0781 Cap rail adapter for handrail bracket, 48.3 mm.

MOD 0782 Cap rail adapter for MOD 0772 handrail bracket, 42.4 mm.

Guidance for specification option:

MOD 0772: Tube adapter, 42.4 mm diameter.

Show more

Manufacturer guidance

Designed to accept LED strips and connection to handrail fixing brackets.

Transformers

MOD 0014: 75 W, IP20.

Guidance for specification option:

Internal use only.

MOD 0015: 80 W, IP67.

Guidance for specification option:

External use.

MOD 0015: 100 W, IP67.

Guidance for specification option:

External use.

MOD 0015: 120 W, IP67.

Guidance for specification option:

External use.

MOD 0015: 130 W, IP67.

Guidance for specification option:

External use.

Manufacturer guidance

Input voltage: 24 V; output voltage: 220–240 V.
