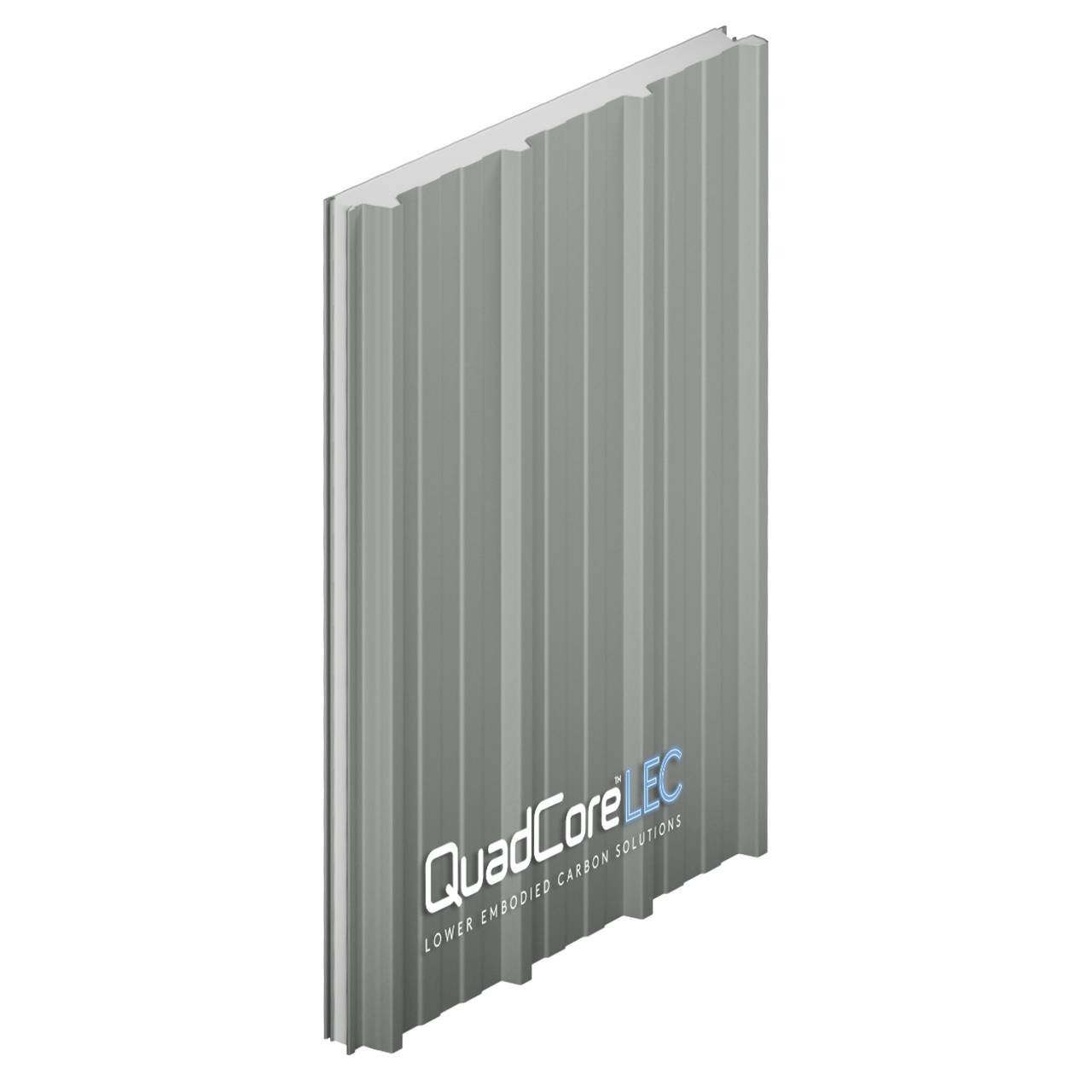

QuadCore KS1000RW LEC Wall Panel

Verified by manufacturer 2 months ago

40 mm Core Thickness

Kingspan Insulated Panels Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • Fire Safety Certification

    Certificate type

  • DoP

    DoP

    Certificate type

  • FM Approved

    FM Approved

    Certificate type

Lower embodied carbon through-fix, trapezoidal profiled, insulated wall panels.

Jump to:
+44 (0)1352 716440 Website

Application

Horizontal and vertical applications.

Description

Environmental:

  • Kingspan Insulated Panels produced in the UK and Ireland are certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Good’. QuadCore® Insulated Panel systems have Environmental Product Declarations in accordance with the requirements of EN 15804 + A2: 2019.
  • Facilities located in Kingscourt, Holywell and Sherburn generate renewable energy onsite which contributes to that sites energy mix.
  • Kingspan Insulated Panels procure steel that is made from 15 – 25% recycled content. Kingspan insulated panels directly contribute to BREEAM® / LEED® credits. Recycled content calculations are available for all QuadCore products via technical services.
  • To access the EPD for QuadCore KS1000RW LEC Wall Panel, please click here (https://www.epdhub.com/).


Kingspan QuadCore:

  • QuadCore is a self-blended, micro cell structured, insulation core unique to Kingspan that delivers the highest performance of any closed cell insulation core across four factors: fire, thermal, environmental & longevity.
  • The QuadCore insulation used in QuadCore KS1000RW LEC Roof Panels has a thermal conductivity value of 0.018 W/m.K.


Quality and Durability:

Kingspan insulated panels are manufactured from the highest quality materials, using state of the art production equipment to rigorous quality control standards, complying with:

  • BS EN ISO 14001 panels are manufactured under Environmental Management System Certification.
  • BS EN ISO 9001 standard, ensuring long term reliability and service life.
  • BS EN ISO 50001 Energy Management System Certification.
  • BS EN ISO 45001 Occupational Health and Safety Certification.
  • BS EN ISO 37301 Compliance Management Systems
  • CE marked to BS EN 14509: 2013.


Certification and Testing:

Reaction to Fire:

QuadCore KS1000RW LEC Wall Panels are classified B-s1,d0, when tested on the internal face of the product, according to the European Reaction to Fire classification system (Euroclasses) BS EN 13501-1:2018 under the certified name KS1000RW when using the following internal liner:

  • CLEANsafe 15.


Please contact Kingspan Tech-eXchange for information relating to the external face.


Fire Resistance:

Fire resistance classifications are subject to panel thickness, orientation, method of assembly, and steel coating. Please contact Kingspan Tech-eXchange for project specific details.


Insurer Approvals:

QuadCore KS1000RW LEC Wall Panels are tested to:

  • FM 4880 approval standard for class 1 fire rating of building panels or interior finish materials under the certified name KS1000RW for thicknesses 40–150 mm.
  • FM 4881 approval standard for class 1 exterior wall systems under the certified name KS1000RW for thicknesses 40 150 mm.
  • FM 4882 approval standard for class 1 interior wall and ceiling materials or systems for smoke sensitive occupancies under the certified name KS1000RW for thicknesses 40–150 mm.


Insurer approvals are large scale testing regimes that provide objective third-party testing, which is underpinned by quarterly, bi-annual and annual factory surveillance audits (depending on the region) to verify compliance.


Insurer approvals are subject to panel thickness, cover width, orientation, method of assembly, steel coating and manufacturing facility. Please contact Kingspan Tech-eXchange for further information.


Kingspan Tech-eXchange:

Kingspan Tech-eXchange is our dedicated team supporting you during the conception, design and installation of your project using our building envelope solutions, Kingspan Tech-eXchange supports our customers using the latest modelling and design software packages.


QuadCore® Assured System Warranty:

  • 25 years insurance backed thermal performance.
  • 25 years insurance backed fire performance.
  • 25 years structural performance.
  • 25 years environmental performance.
  • Up to 30 years coating performance.
  • 25 years warranty on system accessories.


Please contact Kingspan Tech-eXchange or refer to the ‘QuadCore Assured’ brochure for a list of accessories covered by Kingspan.


Kingspan Planet Passionate:

Planet Passionate is Kingspan’s ambitious 10 year global sustainability programme which aims to impact three big global issues:

  • Climate change
  • Circularity
  • Protection of our natural world

By setting ourselves challenging targets in the areas of energy, carbon, circularity and water, we aim to make significant advances in the sustainability of both our business operations and our products.

General information

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

1000 mm

Height

71 mm

84 mm

91 mm

104 mm

111 mm

Show more

Manufacturer guidance

Overall thickness.

Warranty description

25 year

Guidance for specification option:

QuadCore Assured Panel Warranty:

  • 25 years insurance backed thermal performance.
  • 25 years insurance backed fire performance.
  • 25 years structural performance.
  • 25 years environmental performance.


QuadCore Assured System Warranty:

  • 25 years insurance backed thermal performance.
  • 25 years insurance backed fire performance.
  • 25 years structural performance.
  • 25 years environmental performance.
  • 25 years warranty on system accessories.


  • Please contact Kingspan Tech-eXchange or refer to the ‘QuadCore Assured’ brochure for a list of accessories covered by Kingspan.

30 year

Guidance for specification option:

Up to 30 years coating performance.

Manufacturer guidance

QuadCore® Assured Panel Warranty.

Uniclass

Pr_25_71_14_22 Carbon steel insulating sandwich panelsPrimary

CAWS

H43/120 Metal insulating sandwich panel

H43/10 Metal insulating sandwich panel

Specification data - Carbon steel insulating sandwich panels

Standard

To BS EN 14509.

Panels

Self-supporting double skin metal faced insulating panels. Factory made products.

Panel construction

-

Panel external face

-

Material

Steel.

Grade

S280GD.

Profile

Trapezoidal.

Panel internal face

-

Material

Steel.

Grade

S220GD.

Profile

Ribbed.

Core insulation

QuadCore, 40 mm.

Manufacturer guidance

QuadCore KS1000RW LEC Wall Panels are manufactured with an HCFC, CFC and HFC free QuadCore insulation core.

Panel dimensions

-

Length

-

Manufacturer guidance

Standard Lengths: 1.8-14.5 m.

Longer lengths (non-standard): 14.5-29.2 m.

Shorter lengths (non-standard): Below 1.8 m.


Note: Additional costs and transport restrictions may

apply for non-standard lengths. All lengths may

change for export (outside of the UK).

Cover width

1000 mm.

Thickness

71 mm.

Joint type

-

Side or vertical

Overlapping.

Guidance for specification option:

Overlapping joint with butyl tape sealant. Other joint configurations are available. Please contact Kingspan Tech-eXchange for further information.

End or horizontal

Overlapping.

Guidance for specification option:

Overlapping joint with co-laminate end lap seal. Other joint configurations are available. Please contact Kingspan Tech-eXchange for further information.

Taper

-

Manufacturer guidance

Please contact Kingspan Tech-eXchange for further information.

Finish as delivered

-

Outer skin

-

Material

PUR - Spectrum 50.

Guidance for specification option:

Kingspan Spectrum: Consists of a coated semigloss finish with slight granular effect.

Thickness

50 μm (Spectrum 50).

Guidance for specification option:

Kingspan Spectrum.

Colour

Goosewing Grey RAL 080-70-05.

Merlin Grey RAL 180-40-05.

Onyx RAL 7016.

Pure Grey RAL 000-55-00.

Grey White RAL 9002.

Inner skin

-

Material

SP.

Guidance for specification option:

CLEANsafe 15: The coating has been developed for use as the internal lining of insulated panels. Standard colour is “bright white” with an easily cleaned surface.

Thickness

15 μm.

Guidance for specification option:

CLEANsafe 15.

Colour

Bright white.

Integral accessories

Self-drilling, self-tapping stainless steel primary fasteners with non-ferrous EPDM backed washer.

Stainless steel secondary fasteners with non-ferrous EPDM backed washer.

Butyl tape sealants.

Film backed butyl tape.

PVC foam tape.

Butyl co-laminate tape sealant.

Non-setting butyl sealant.

Manufacturer guidance

Please contact Kingspan Tech-eXchange for further information.

Special features

-

Manufacturer guidance

Please contact Kingspan Tech-eXchange for further information.

Fire performance

-

Reaction to fire

-

Core

-

Manufacturer guidance

Please contact Kingspan Tech-eXchange for further information.

Panel external face

-

Manufacturer guidance

Please contact Kingspan Tech-eXchange for further information.

Panel internal face

To BS EN 13501–1, Class B-s1, d0.

Guidance for specification option:

Please contact Kingspan Tech-eXchange for further information.

Fire resistance

-

Manufacturer guidance

Fire resistance classifications are subject to panel thickness, orientation, method of assembly, and steel coating. Please contact Kingspan Tech-eXchange for project specific details.

U-value

0.47 W/m²·K.

Manufacturer guidance

QuadCore KS1000RW LEC Wall Panels have a Thermal Transmittance (U-Value), calculated using the method required by the Building Regulations Part L2 (England & Wales), Building Standards Section 6 (Scotland), Part L (Republic of Ireland) and Part F2 (Northern Ireland).

Weight

9.0 kg/m².

Global warming potential (GWP)

23.12 kg CO₂ eq/m².

Third-party certification

EPD Hub Environmental Product Declaration.

Guidance for specification option:

In accordance with EN 15804+A2 and ISO 14025/ ISO 21930.

Sustainability data

Material

Steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

34.97 kg CO₂ eq/m²

Guidance for specification option:

Rounded to nearest decimal point.

34.969 kg CO₂ eq/m². Maximum (based on thickest panel).

Third party certifications

Third party certifications

EPD

EPD

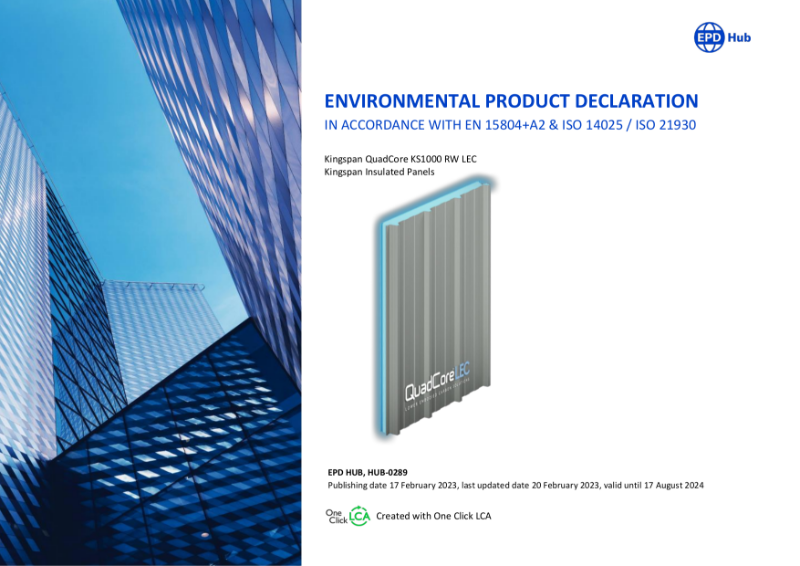

Environmental Product Declaration Kingspan QuadCore KS1000 RW LEC

EPD

EPD

Environmental Product Declaration Kingspan QuadCore KS1000RW LEC Wall Panel

Fire Safety Certification

Fire Safety Certification

FIRE REACTION CLASSIFICATION IN ACCORDANCE WITH EN 13501-1:2018

DoP

DoP

QuadCore KS1000RW Roof and Wall Declaration of Performance

FM Approved

FM Approved

FM Report PR464489

Literature

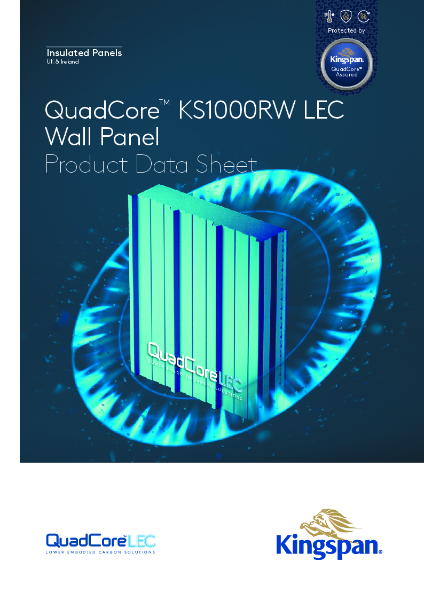

QuadCore KS1000RW LEC Wall Panel

QuadCore KS1000RW LEC Wall Panel

Colours & Coatings Brochure

Colours & Coatings Brochure

QuadCore® KS1000RW Wall Panel Installation Guide - Horizontal

QuadCore® KS1000RW Wall Panel Installation Guide - Horizontal

QuadCore® KS1000RW Wall Panel Installation Guide - Vertical

QuadCore® KS1000RW Wall Panel Installation Guide - Vertical
