Quadro Panel Cubicle
Verified by manufacturer 5 months ago
SGL
SGL

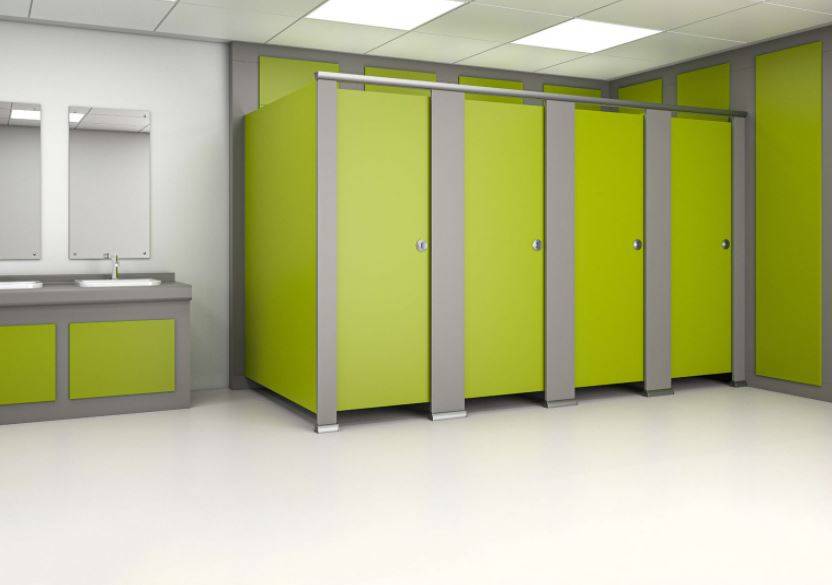

Toilet cubicle featuring a distinctive quadrant foot and headrail to deliver strength and style.
Application
Suitable as value proposition alternative when durability is needed.
Description
A competitively priced stylish washroom cubicle, which features a unique quadrant shoe for pilasters with the same design mirrored in the continuous head-rail.
Available with optional privacy skirting and low floor clearance to doors.
Features and benefits:
- Unique quadrant shoe for pilasters with the same design mirrored in the continuous headrail.
- Optional aluminium privacy skirting takes partitions to the floor delivers additional privacy.
- Floor fixed pilasters for durability.
Components:
- HPL: High pressure laminate panels, supplied square edged with matching 1 mm PVC lipping.
- MFC: Melamine faced chipboard panels, supplied square edged with matching 1 mm PVC lipping.
- SGL: Solid grade laminate panels, supplied with polished black radiused edges.
- Frame comprising: Pilasters, headrail, legs, hinges and channels.
General information
Color | Other Manufacturer guidancePanels: 34 laminate colour options; consult manufacturer literature. |
Finish | Laminated Powder-coated Guidance for specification option: Aluminium frame components. Smooth |
Material | Laminate Guidance for specification option: Panels. Chipboard Guidance for specification option: Backing, moisture resistant. Aluminium Guidance for specification option: Frame components. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | 2145 mm Manufacturer guidanceStandard Overall Height |
Uniclass | |
CAWS | K32/10 Panel cubicles K32/120 Panel cubicles |
Product range |
Specification data - Fully-framed panel cubicle systems
Panels | SGL panel, 1400 kg/m³, polished black, radius edges.Guidance for specification option:
|
Panel supports | Aluminium frames. |
Doors | SGL panel, 1400 kg/m³, polished black, radius edges.Guidance for specification option:
|
Lippings | Not applicable. |
Hardware | Pilasters, headrail, legs, hinges and channels. |
System accessories | Not required.Soap dispensers.Paper towel dispensers.Toilet roll holders.Hand dryers.Coat hooks.Door handles.Manufacturer guidanceSelection available, consult manufacturer literature. |
Floor Clearance | 100 mm (standard). 50 mm (low). Guidance for specification option: 50 mm of (with privacy skirting - Door: 50 mm, Partition: to the floor) |
Other requirements | Not required. Stylex printed doors. |
Height | 2145 mm (overall). Manufacturer guidanceTop of headrail. |
Overall thickness | 13 mm (nominal). |
Doors, Partitions & Pilasters | Manufacturer guidanceColours: Refer to manufacturer standard colour range. |
Headrail | Light grey. Manufacturer guidanceColour. |
Hinges & Channels | Light grey. |
Faceplate & Pilaster Foot | Light grey. Manufacturer guidanceColour. |
