Quartz - Frameless Double Glazed Partition Panels - Frameless glass partition, Acoustic

Verified by manufacturer 7 days ago

Apton Quartz Double Glazed (10-13.5 mm)

Apton Partitioning Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

Double glazed frameless glass partitioning system.

Jump to:
+44(0)1902 385 250 Website

Application

Open-plan commercial offices and workplace environments.

Description

100 mm thick, frameless double glazed glass partition panels - the perfect choice, when maximum natural light and an aesthetically pleasing design are essential.


Features and benefits:

  • A versatile frameless system that offers numerous combinations for both glass size and specification, ensuring a wide range of acoustic ratings can be achieved.
  • This is the ideal system to create privacy and at the same time, allow as much natural light into your office space as possible.
  • A number of deflection details are available.

General information

Color

Clear

Silver

Other

Black

White

Finish

Anodized

Powder-coated

Material

Glass

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

Specification data - Partition panels

Unit size

-

Thickness

10-13.5 mm.

Guidance for specification option:

Insert requirements or drawing reference number.

Manufacturer guidance

(Glazing thickness):

Partition height (nominal)

4200 mm.

Guidance for specification option:

Height up to 4200 mm.

Track height 27 mm/ 50 mm.

Insert requirements or drawing reference number.

Width (nominal)

100 mm.

Manufacturer guidance

(Track width):

Deflection allowance (maximum)

-

Head

+/-12.5 mm.

Panel partition type

Laminated/ Toughened glass panels.

Framing, fixing points and joints

Aluminium.

Solid panels

-

Finish and colour

-

Manufacturer guidance

Any RAL, insert requirement.

Joint treatment

-

Type

Dry joint.

Guidance for specification option:

(Corners: 90, 135 and T.)

Finish and colour

Powder coated.

Guidance for specification option:

Insert requirements; contact manufacturer for more details.

Satin.

Guidance for specification option:

Anodized aluminium.

Anodized.

Guidance for specification option:

Inquire with manufacturer for special anodized finish options.

Glazed panels

-

Type

Double glazed.

Integral blinds

Not required.

Required.

Door arrangement

-

Type

GDS door.

Glazed door.

Stile door.

Timber door.

Door frames

Aluminium.

Hardware

Guidance for specification option:

A wide range of hardware options are available. Insert requirements; consult with manufacturer for details.

Standards

To BS EN ISO 140, BS EN ISO 717, BS5234, BS6180 and BS6399.

Guidance for specification option:

British standards:

  • Sound measurements to BS EN ISO 140.
  • Sound rating to BS EN ISO 717.
  • Structural stability to BS5234, BS6180, BS6399.

Configuration

As schedule.

As drawing.

Guidance for specification option:

Insert drawing reference number.

Glass type

Toughened, laminated.

Manufacturer guidance

Available ‘Switch Glass’ option; contact manufacturer.

Manifestation

Not required.

Required.

Guidance for specification option:

Insert requirements; contact manufacturer for details on optional manifestations and graphics.

Acoustics

Up to 55 dB (Rw).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Guidance for specification option:

Post consumer

Third party certifications

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

BS EN ISO 9001:2015

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 Environmental Management System

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001:2018 Occupational Health and Safety Management Systems

Literature

Apton Quartz Double Glazed.

Apton Quartz Double Glazed.

Case studies

Amazon Offices by Apton Partitioning

Amazon Offices by Apton Partitioning

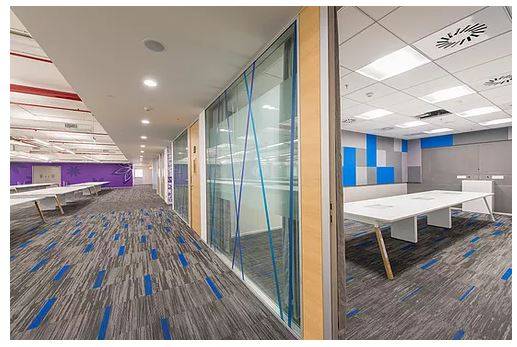

Google India with Apton's Double Glazed Partitions

Google India with Apton's Double Glazed Partitions
