Single glazed sliding glass door with concealed runners for unimpeded glass from floor to ceiling partitioning solution.
Open-plan commercial offices and workplace environments.

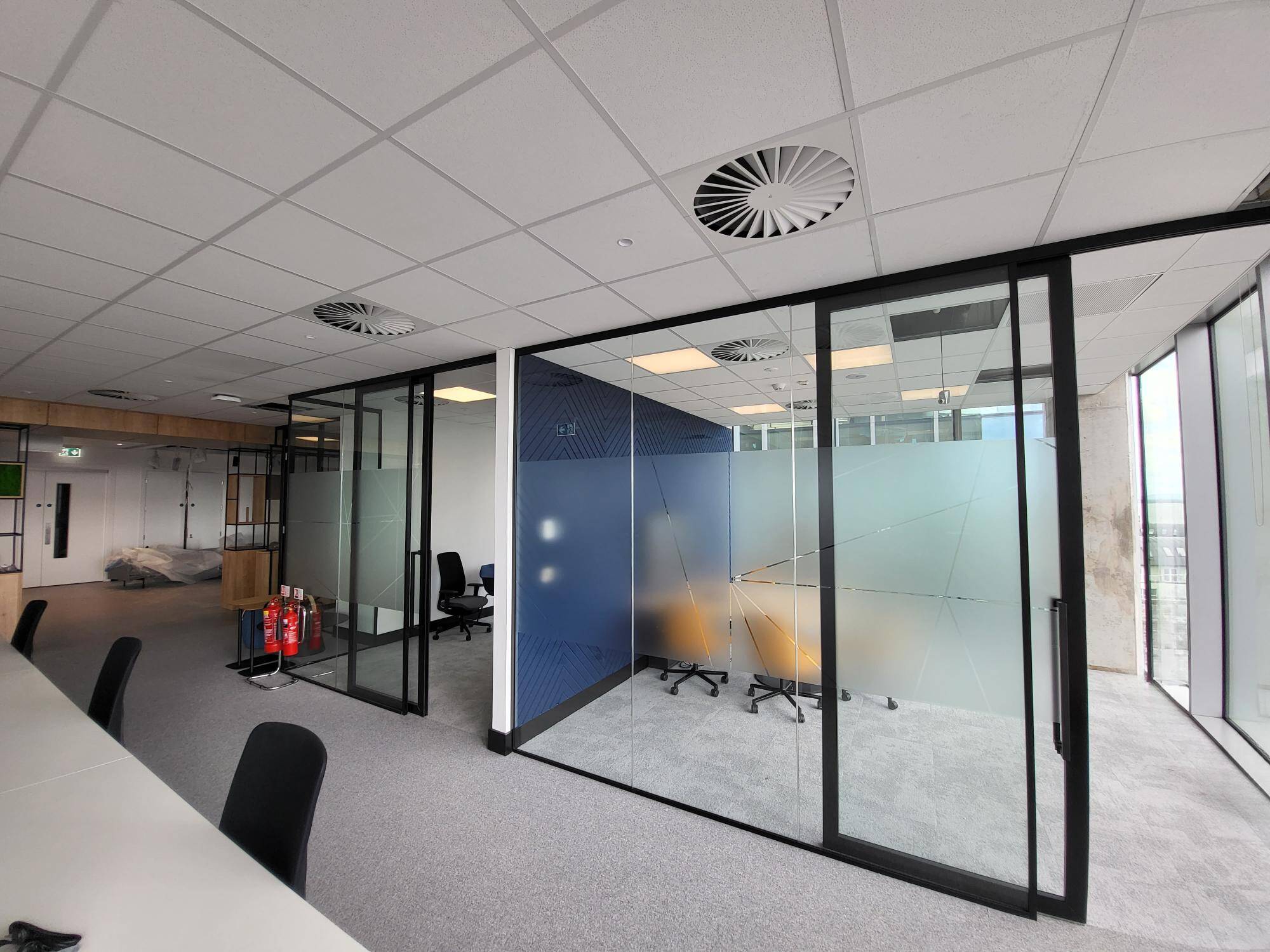

Quartzglide 2 is the Apton solution for those areas where concealed runners are the preferred requirement, providing a visual impact of unimpeded glass from floor to ceiling.
Features and benefits:
Color | Clear Silver Other |
Finish | Glazed Powder-coated Anodized Satin |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/65 Sliding pocket doors L20/525 Sliding pocket doors L20/520 Sliding doors |
Performance | Internal. Guidance for specification option: Concealed runners - unimpeded glass from floor to ceiling. |
Arrangement | As schedule. As drawing. Guidance for specification option: Insert drawing reference number. |
Track system | Aluminium, top-hung. |
Door leaves | |
Construction | 34 x 43 mm aluminium profiles. |
Finish and colour | Powder coated. Guidance for specification option: Insert requirements; contact manufacturer for more details. Satin. Guidance for specification option: Anodized aluminium. Anodized. Guidance for specification option: Inquire with manufacturer for special anodized finish options. |
Operation | Manual. |
Hardware | Guidance for specification option: A wide range of hardware options are available. Insert requirements; consult with manufacturer for details. |
Standards | To BS EN ISO 140, BS EN ISO 717, BS5234, BS6180 and BS6399. Guidance for specification option: British standards:
|
Height | Guidance for specification option: Available height up to 3000 mm; insert requirements or drawing reference number. |
Glass thickness | 10–12.8 mm. Guidance for specification option: Insert requirements or drawing reference number. |
AcousticRating | Up to 29 dB (Rw). |
Glass type | Toughened/ laminated. Manufacturer guidanceAvailable ‘Switch Glass’ option; contact manufacturer. |

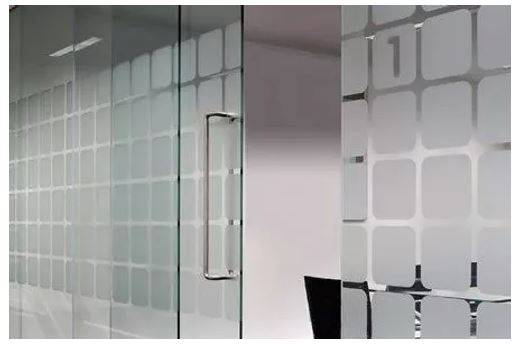

Manifestation | Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for details on optional manifestations and graphics. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Glass Aluminium |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
