Quattro Plus - Mechanical Key System
Verified by manufacturer 7 days ago
Default key
Default key
EPD
Certificate type
Mechanical cylinder system and key.
Application
High security mechanical locking solutions for use on comemrcial and residantial applications. Products inclyde door cylidners, key switches, padlocks,camlocks and furniture lockts etc for use in any situation where mechancial, key operated locking is required.
Description

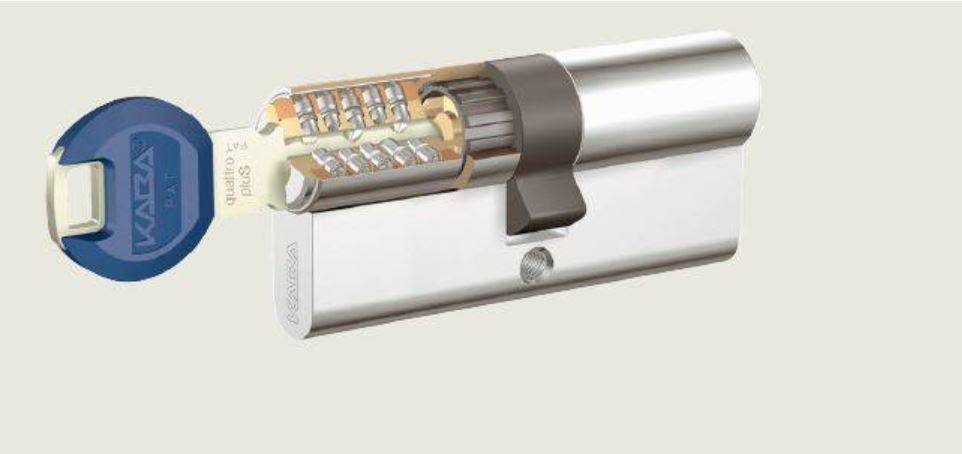

dormakaba quattro plus cylinder range, with its patent protected reversible key, is designed for all applications where security, durability and strict factory key control are paramount.
With an innovative interchangeable core system, quattro plus offers extensive flexibility allowing the cylinder core to be inserted into a range of locking solutions from camlocks, keyswitches and padlocks. This also gives dormakaba quattro plus the ability to master key across various applications and locations making it a powerful and efficient locking system.
Areas of application:
Healthcare
Office buildings
Hotels & catering
Airports
Banking & Insurance
Education
Industry & Production
Shopping & retail sector
Privately owned housing
Government & Administration
Sport & culture
Transport & logistics
General information
Color | Silver Blue Green Yellow Black |
Finish | Brass |
Material | Brass Stainless steel Nickel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | P21/530 Special function door locks P21/26 Special function door locks P21/22 Thief-resistant door locks P21/515 Door locks P21/24 Door locks P21/510 Thief-resistant door locks |
Specification data - Thief-resistant door locks
Standards | |
Security | To EN 1303, DIN 18252 and VdS. |
Third-party product certification | BSI Kitemark, LPCB, CEN, EPD. |
Lock type | Camlock cylinder.Double cylinder.Elevator control cylinder.Furniture cylinder.Furniture lock.Key storage cabinet.Key switch cylinder.Outside and inside cylinders for surface mounted lock.Single cylinder.Thumbturn cylinder.Manufacturer guidanceA range of lock cylinders covers a wide selection of different types for all kinds of applications. The lock cylinders, cylinders for cabinet locks, key switch cylinders and lift controls can be organised into a master key system. Consult manufacturer for details. |
Cylinders | |
Standard | To BS EN 1303. |
Pattern | Euro.Swiss round.Scandinavian.Union oval.French round. |
Classification grades (minimum) | |
Durability | To EN 1303 - Durability Grade 6. |
Fire and smoke resistance | To EN 1303 - Fire Resistance Grade B. |
Corrosion resistance and temperature | To EN 1303 - Corrosion Resistance Grade C. |
Security | To EN 1303 - Key Related Security Grade 6. |
Attack resistance | To EN 1303 - Attack Resistance Grade B.To EN 1303 - Attack Resistance Grade C.To EN 1303 - Attack Resistance Grade D.Guidance for specification option: EN 1303 Attack Resistance Grade D when used with security door furniture or with optional steel reinforcement plates. |
Material and finish | Nickelplated (NI).Brass (MS).Polished Brass (MP).Chrome Plated (CR).Dull Chrome (CRM).Polished Chrome Plated (CRP).Medium Brown (BM).Dark Brown (BD).Chemically Nickel Plated (NICsalt water resistant).Antique Brass (MSA). |
Keying | Key Control Factory Only (Patent Expiry Date 2032). |
Colour | Black. Blue. Dark blue. Dark green. Dark red. Manufacturer guidanceFor the default key, there are Smartkey clips in 12 colours. Consult manufacturer for details. |
Special features | Lock cylinder with key override onboth sides (BSZ). Guidance for specification option: Key left in the lock? Not a problem! Service function (SAT). Guidance for specification option: Temporary access for service personnel? Simply by turning the key! Thermally insulated lock cylinder (TIC). Guidance for specification option: Cold and damp outside? Everything dry inside. Dust and weather protection (SSW). Guidance for specification option: Lots of dust in the air? But not in the lock cylinder. Restricted Movement (RCT). |
Standard | To EN 1303, EN1670, EN 1634, TS007 1, EN 12320. |
Sustainability data
Material | Brass Stainless steel Nickel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.39 kg CO₂ eq/unit |
Expected Life | 15 year |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration (EPD) - penta - quattro - gemini - expert - matrix
Literature

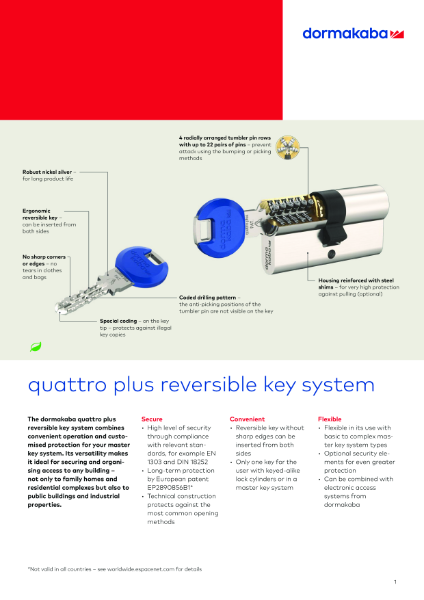

Quattro plus reversible key system
