R-MER CLAD 32/167/1000 Roof
R-MER CLAD 32/167/1000 Roof
Trapezoidal metal roofing system
Application
- Single skin.
- Twin skin.
- Wall cladding.
- Tanking houses, capping and coping.
- Industrial, commercial and residential applications.
Description

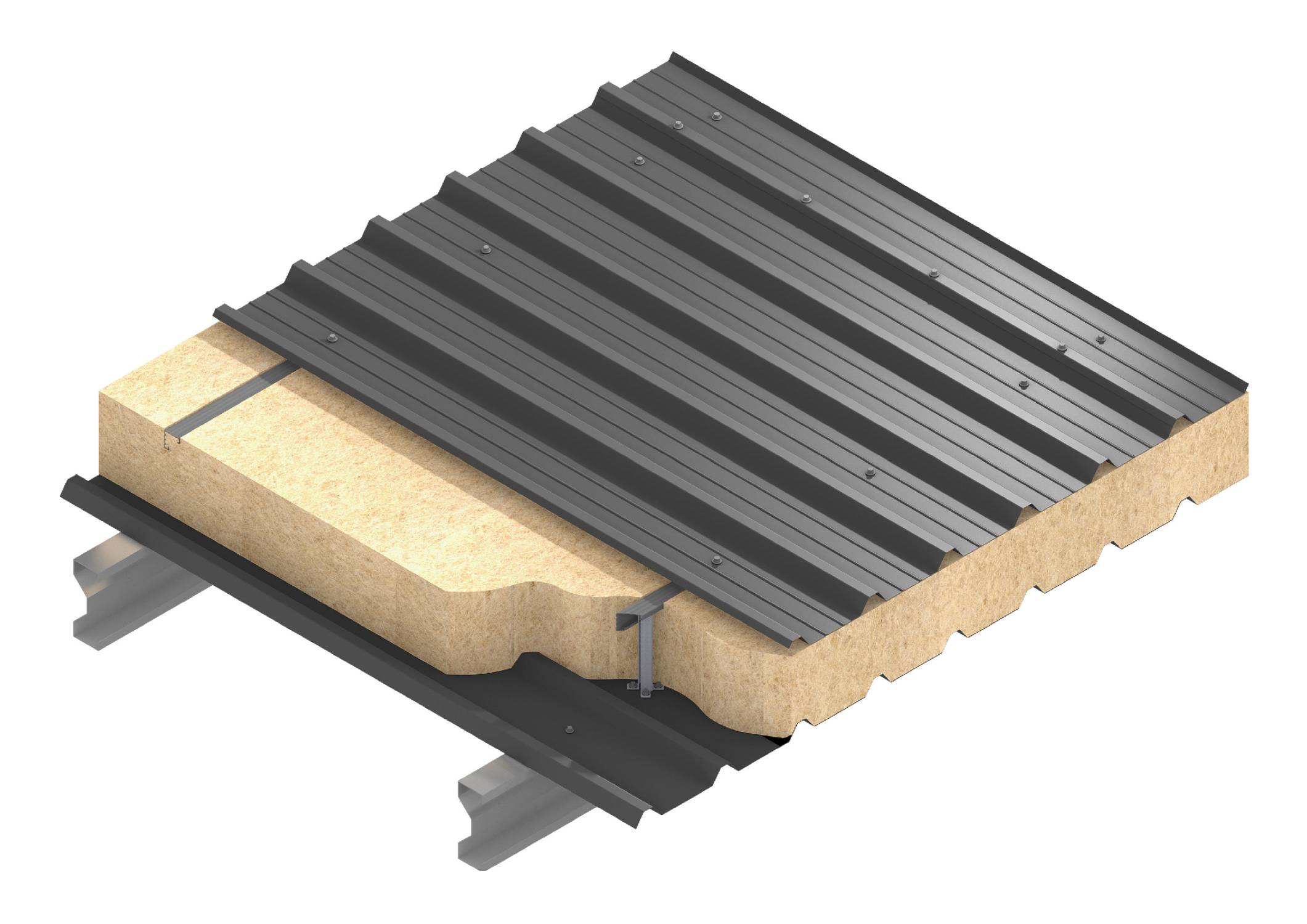

The R-MER CLAD system offers lightweight and hardy trapezoidal roofing and wall profile waterproofing solutions. Often used in both refurbishment and new build projects, the system can be installed quickly, in either a single skin or as a twin skin insulated build-up.
R-MER CLAD can be used on roofs with pitches greater than 5 degrees, to allow for adequate drainage. The profile sheet laps feature at both ends, and the sides use butyl seals to ensure a watertight surface, with fixings to the substructure located in the pan of the profile.
Features and benefits:
- 20 year single-point guarantee.
- Simple installation.
- Forward and reverse profiles.
- Wide range of durable finishes.
- The 1000 mm cover width ensures easy on-site handling.
- Wide pans allow for careful foot tracking.
- The profile will provide a waterproof system down to a 5° pitch.
- Classed under the European Standard EN 13501-5:2005 at BROOF(t4).
- Contemporary design.
General information
Color | Manufacturer guidanceHP200 |
Finish | Galvanized |
Material | Steel |
Shape | Trapezoid |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 20 year |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Product range |
Specification data - Galvanized carbon steel profiled sheets
Profile | |
Depth (overall) | 32 mm. |
Thickness (nominal) | 0.5 mm.0.7 mm. |
Form | Trapezoidal. |
Dimensions | |
Profile height | 32 mm. |
Pitch | 167 mm. |
Cover width | 1000 mm. |
Top surface (side 1) | |
Top surface finish | Plastisol.Polyester. |
Colour | Manufacturer guidanceInsert requirement, available in a comprehensive range of colours in HPS200 Plastisol and polyester. Consult manufacturer for further details and insert requirement. |
Reaction to fire | |
External face | Designated as AA to BS 476–3 and is classed in accordance with EN 13501-5: 2005 as BROOF (t4). |
Span | Double span. Multi-span. Single span. Manufacturer guidanceAvailable up to 2.8 m - consult manufacturer for details. |
Accessories | Manufacturer guidanceInsert requirement, a full range of accessories including flashings, trims, gutters, fixings, louvres, ridge vents and soakers, glass reinforced plastic (GRP) translucent roof lights in either single or double skin are also available on request. |
Sustainability data
Recyclability | 100% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
