R-MER Shield LT Facade System - Metal wall facade system
Verified by manufacturer 1 day ago
Metal wall facade system for external building envelopes.
Application
- Replacement of unsafe cladding.
- Facade refurbishment.
- New build construction.
- BB93 compliant for schools and facilities.
- Commercial, residential and public sector.
Description

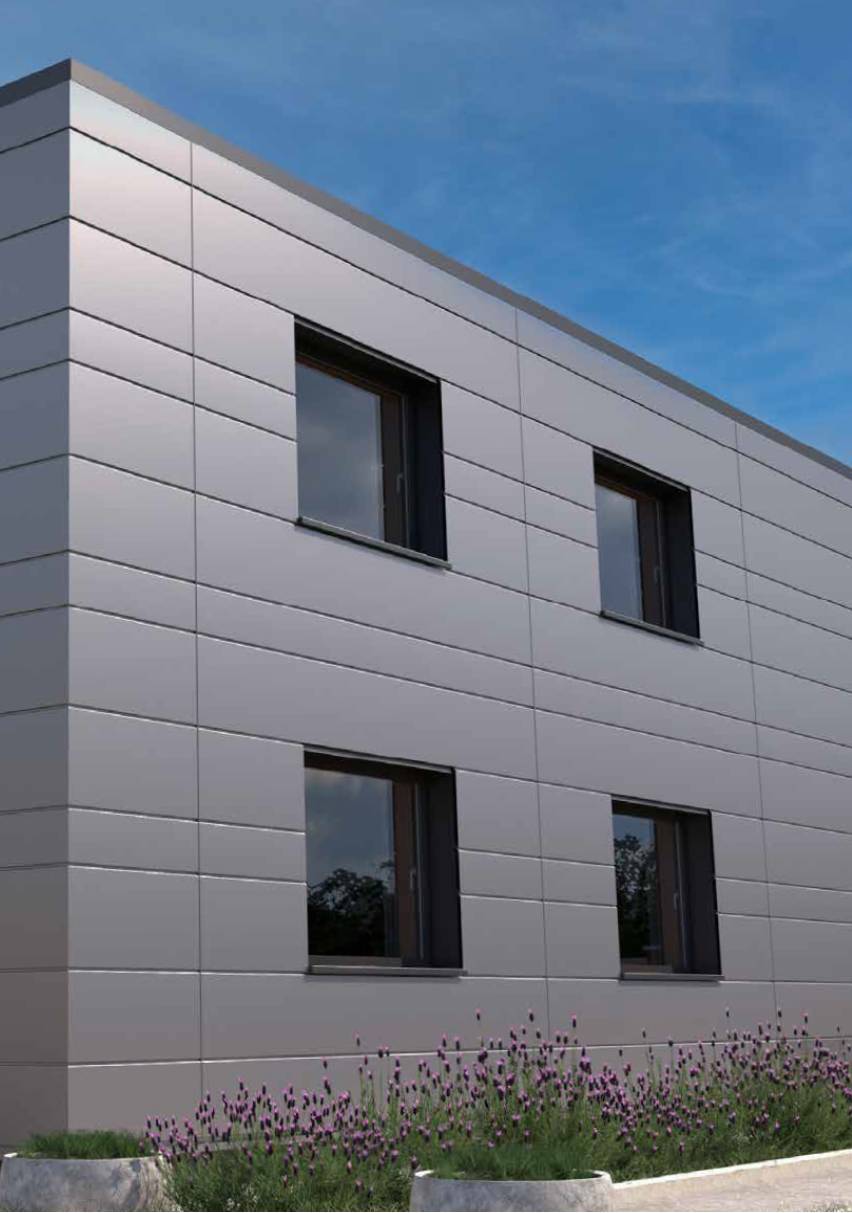

R-MER Shield LT is an aluminium plank-style secret-fix rainscreen panel. R-MER Shield LT combines with the Hilti substructure system for ventilated facades, allowing for fast, safe and easy installation.
The profiles can be installed horizontally, vertically or diagonally for interior and exterior areas. The LT profiles are manufactured in standard construction widths, ranging from 250 to 500 mm in 50 mm increments. The maximum panel length available is 6 m.
Features and benefits:
- Flexible design.
- Weatherproof.
- Fire classification A1 rated.
- 100% recyclable.
- Lightweight.
- Improved thermal performance.
- Low maintenance.
- Fast installation.
General information
Color | Grey Brown Red Green Silver |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 30 year Guidance for specification option: The guarantee for the R-MER Shield LT system includes the Hilti supporting subframe, fasteners, insulation and metal profiles. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
System performance | Manufacturer guidanceConsult manufacturer and insert requirements. |
Thermal insulation | Mineral wool slab insulation. Guidance for specification option: Non-combustible rigid mineral wool insulation is available in a wide range of thicknesses to suit thermal requirements. Consult manufacturer for details. |
Breather membrane | |
Material | Manufacturer guidanceInsert requirements or omit. |
Fasteners | Manufacturer guidanceInsert requirements or omit. |
Secondary support structure | Aluminium L/ T support rails and FOX VI (aluminium) brackets. Aluminium L/ T support rails and FOX VTR (stainless) brackets. Guidance for specification option: FOX VTR brackets are a thermal bridge-reducing solution for use on low-energy buildings. Aluminium L/ T support rails and FOX VT (thermal bridge-free) brackets. Guidance for specification option: FOX VT brackets are Passivhaus certified. Manufacturer guidanceRefer to the R-MER Shield LT Facade System Brochure for details. |
Cavity fire barriers | |
Horizontal | Manufacturer guidanceInsert requirements or omit. |
Vertical | Manufacturer guidanceInsert requirements or omit. |
Cladding panels | |
Material | Aluminium panels. Guidance for specification option: Material to EN 573-3 aluminium, EN AW 3005 AlMn1Mg0.5 H46. |
Panel joints | Labyrinth joints. |
Reveals | Manufacturer guidanceInsert requirements. |
System accessories | Fasteners, perforated flashings, profile connectors and bracket extenders. |
Profile | Smooth Surface. Macro Surface. Micro Surface. With optional shadow gap. Without optional shadow gap. Panel end folding. Guidance for specification option: Panel end folding up to construction width 300 mm is optional, from 400 mm – compulsory. |
Panel width | 250 mm. 300 mm. 400 mm. 450 mm. 500 mm. Manufacturer guidanceSpecial construction widths upon request. |
Panel depth | 25 mm. |
Panel Thickness | 1.25–1.5 mm. Guidance for specification option: Depending on panel width. Manufacturer guidanceAluminium gauge. |
Colour/ Finish | Powder-coated, RAL 3009 Oxide Red. Powder-coated, RAL 8004 Copper Brown. Powder-coated, RAL 8014 Sepia Brown. Powder-coated, RAL 7016 Anthracite Grey. Powder-coated, RAL 7024 Graphite Grey. Powder-coated, RAL 7037 Dusty Grey. Powder-coated, RAL 9007 Grey Aluminium. Powder-coated, RAL 9006 White Aluminium. Powder-coated, RAL 9002 Grey White. Powder-coated, RAL 6005 Moss Green. Powder-coated, bespoke. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceColour-coated ≥25 μm. |
Sustainability data
Recyclability | 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
