RAVATHERM XPS X UB300

Verified by manufacturer 2 months ago

Ravago Building Solutions

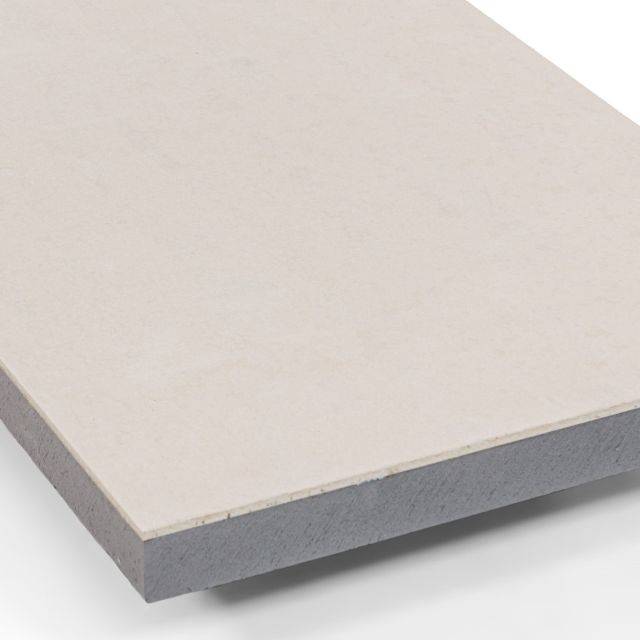

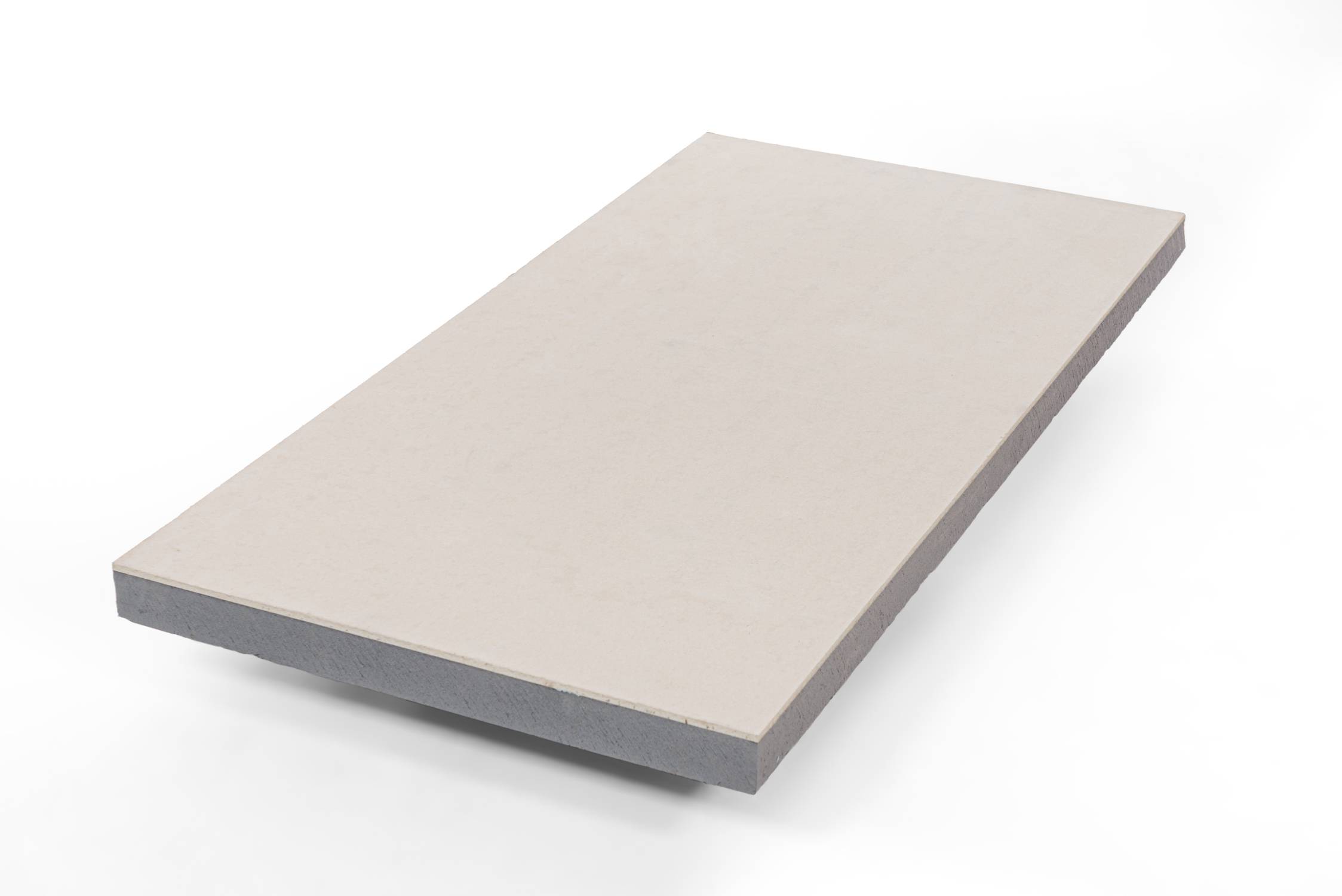

Ravatherm XPS X UB300 pairs the thermal performance of Ravatherm XPS X 300 SB with a 6 mm fibre cement layer, resulting in a specialist insulation board for use on parapets and upstands.

Jump to:
BOS
Website

Application

Suitable for use on parapets and upstands in flat roof applications.

Description

Ravatherm XPS X UB300 pairs the thermal performance of Ravatherm XPS X 300 SB with a 6 mm fibre cement layer to address the challenge of thermal bridging in flat roofs.


Features and benefits:

  • Good thermal insulation capability.
  • Waterproof; negligible moisture uptake.
  • Energy-saving.
  • Frost-resistant.
  • Resistant to high loads.
  • Simple installation.
  • Quick installation.
  • Does not slump or shrink.
  • Environmental friendly and a cost efficient solution to thermal bridging in flat roof applications.

General information

Color

Grey

Finish

Guidance for specification option:

6 mm fibre cement topping on one external face

Material

Polystyrene

Guidance for specification option:

Homogeneous, closed-cell material structure comprised of extruded polystyrene (XPS), a rigid form of insulation with 6 mm fibre cement layer.

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

56 mm

Uniclass

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

J21/440 Inverted roof insulation

J41/440 Inverted roof insulation

J42/440 Inverted roof insulation

Q37/310 Inverted roof insulation

Specification data - Extruded polystyrene (XPS) boards

Standard

To BS EN 13164.

Third party product certification

BRE.

Fire performance

Euro class E, Class A1, to BS EN 13501-1.

Guidance for specification option:

Products contain an ecologically safe flame-retardant additive.

Compressive strength (minimum) at 10% compression

300 kPa.

Guidance for specification option:

To EN 826. To plan the reinforcement steel requirements of floor slab used as a load-distribution structure over the thermal insulation layer, please consult a structural engineer.

Thermal conductivity (maximum)

<60 mm - 0.030 W/m·K.

Guidance for specification option:

Typical thickness 50 mm to EN 13164.

Thickness

50 mm.

Face size (length x width)

1200 x 600 mm.

Guidance for specification option:

The maximum installation depth of the thermal insulation is determined by the load: the horizontal pressure must not exceed the compressive strength of the boards, taking into account the value of the permanent load.

Facing

6 mm fibre cement flat sheet.

Guidance for specification option:

Fibre cement topping on external face Ravatherm XPS X 300 SB.

Edges

Butt edge.

Guidance for specification option:

This product must be laid with no gaps between the boards in structures with contact to soil. For gluing, solvent-free adhesives must be used. Follow the supplier’s guidance.

TemperatureRange

-50°C to 75°C maximum.

Guidance for specification option:

Provides the permanent application temperature of Ravatherm XPS X products. At higher temperatures, the boards will start to soften and suffer permanent deformation.
