RD4MFAB - Rytons Multifix® Air Brick with Ducting Adaptor 110mm x 54mm
Verified by manufacturer 3 months ago
RD42M - Rytons Flat Channel Duct 2m L (110 mm x 54 mm Range)
RD42M - Rytons Flat Channel Duct 2m L (110 mm x 54 mm Range)

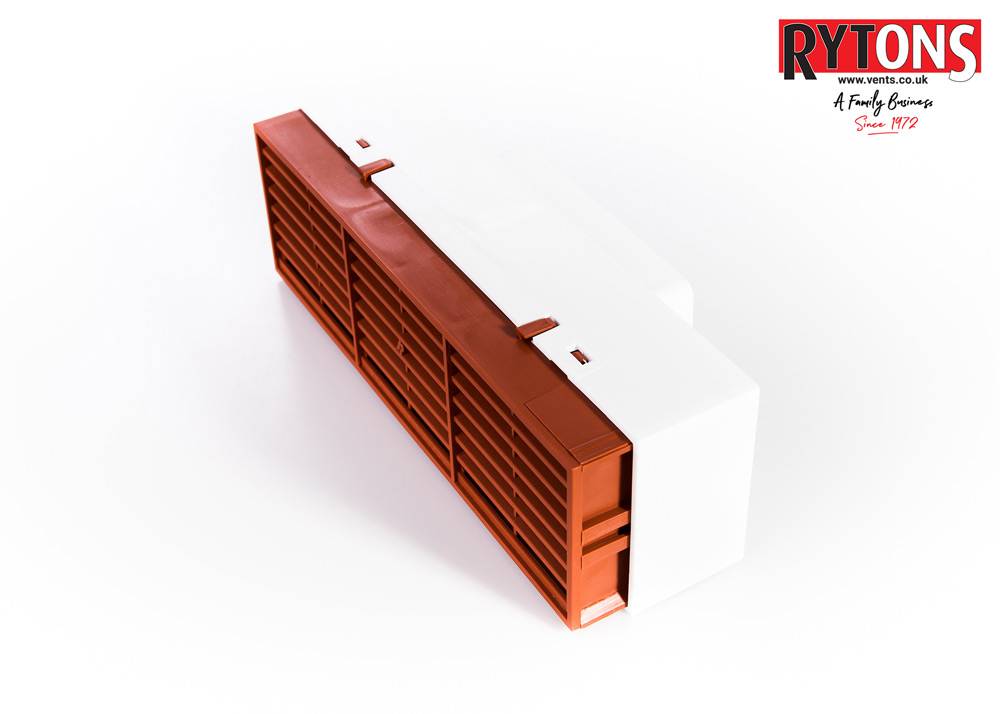

Plastic air brick with adaptor to connect to rectangular ducting 110 mm x 54 mm (RD4/M).
Application
- Suitable for internal and external use.
- These items are plastic components, and therefore not suitable for use within the external walls of high-rise buildings.
Description
Plastic air brick with a specially designed adaptor to connect to Flat Channel Duct RD4/M.
Features and benefits:
- Supplied as a single unit ready for use.
- Available in a range of seven colours to maintain the external aesthetic appearance.
- Multifix® Air Brick UV-stabilized to slow down the effects of sunlight.
- Part of Rytons 100 mm (110 x 54 mm) RytDuct® Range.
- For applications requiring lower extraction rates such as bathrooms, WCs and cooker hoods.
- For use with cooker hoods and extraction fans with a maximum output of 250 m³/hour.
- Suitable for working temperatures of -20 to +60ºC.
Components:
Rytons Multifix® Air Brick with Flat Channel Ducting Adaptor (RD4MFAB).
Compatible components:
- Rytons Flat Channel Duct 110 mm x 54 mm x 1 m L RD41M.
- Rytons Flat Channel Duct 110 mm x 54 mm x 2 m L RD42M.
General information
Color | Black Brown Cream Grey Orange |
Material | Plastic Guidance for specification option: UV-stabilized polypropylene. |
Size | 110 x 54 x 1000 mm Guidance for specification option: RD41M: 110 x 54 (overall external) x 1000 mm. 2 m lengths also available: RD42M. 220 x 72 mm Guidance for specification option: RD4MFAB: 220 mm L x 72 mm H overall ext. with 106 mm L x 51 mm H overall ext. male connector. 106 x 51 mm Guidance for specification option: RD4MFAB: 220 mm L x 72 mm H overall ext. with 106 mm L x 51 mm H overall ext. male connector. |
Uniclass | |
CAWS | F30/15 Airbricks in external walling F30/160 Airbricks in external walling |
Specification data - Airbricks
Work sizes | 110 x 54 mm. |
Material | |
Colour | White.Guidance for specification option: RD41M; manufactured in compliance with Domestic Plastic Ductwork Specification DW/154. Will meet UL94 HB flammability standard. |
Free area | 5,424 mm². |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
