Application

For use with cooker hoods and extraction fans with a maximum output of 500 m³/hour.

Description

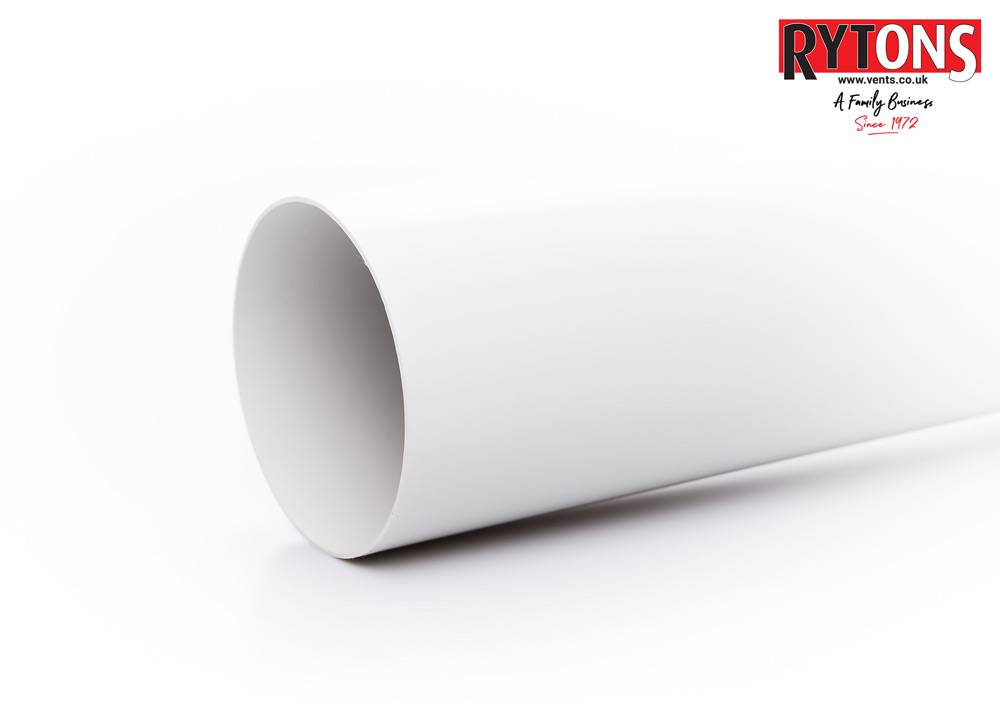

A range of plastic 125 mm diameter ductwork and fittings.


Features and benefits:

  • Suitable for working temperatures of -20ºC to +60ºC.
  • Part of Rytons 125 mm (204 x 60 mm) RytDuct® Range.
  • Flame retardant high quality plastic.

General information

Color

White

Material

Plastic

Uniclass

Pr_65_65_25_23 Domestic rigid ductwork and fittingsPrimary

CAWS

U90/425 Rigid ductwork and fittings

U90/425 Rigid ductwork and fittings

Product range

Rytons Flat Channel Ducting and Components

Specification data - Domestic rigid ductwork and fittings

Material

Plastic.

Guidance for specification option:

Flame retardant; high quality.

Jointing

RD5CONN – Rytons Pipe/ Hose Connector.

Fixings

WBANDGALV - Rytons Galvanised Banding.

Guidance for specification option:

Width: 12 mm; length: 1000 mm.


Accessories

SA5PLATE.

Guidance for specification option:

Rytons Self-adhesive Wall Plate

RD5GG.

Guidance for specification option:

Rytons Gravity Grille - Available in white or brown; insert requirements.

RD5CG.

Guidance for specification option:

Rytons Cowled Grille - Available in white or brown; insert requirements.

CV60FWBG.

Guidance for specification option:

Rytons RytAround Ventilator - White.

RD5LVBG.

Guidance for specification option:

Rytons 6×6 Louvre and 122 mm diameter backplate set - Available in terracotta, buff/sand, white, brown or black; insert requirements.

RD5FLVBG.

Guidance for specification option:

Rytons 6×6 Louvre with Flyscreen and 122 mm diameter backplate set - Available in terracotta, buff/sand, white, brown or black; insert requirements.

Length

1000 mm.

External

128 mm.

Diameter (internal)

125 mm.

Free area

12 273 mm².

Static pressure drop

8 l/s: 0.02 Pa.

13 l/s: 0.03 Pa.

21 l/s: 0.08 Pa.

30 l/s: 0.14 Pa.

60 l/s: 0.42 Pa.

Show more

Fittings

RD5PC – Rytons 90° Elbow Pipe Connector.

RD545PC – Rytons 45° Elbow Pipe Connector.

RD5TRND – Rytons Three-way T-piece.

RD4REDUC – Rytons 125 mm to 100 mm Reducer.

RD5REDUC – Rytons 150 mm to 125 mm Reducer.

Show more
