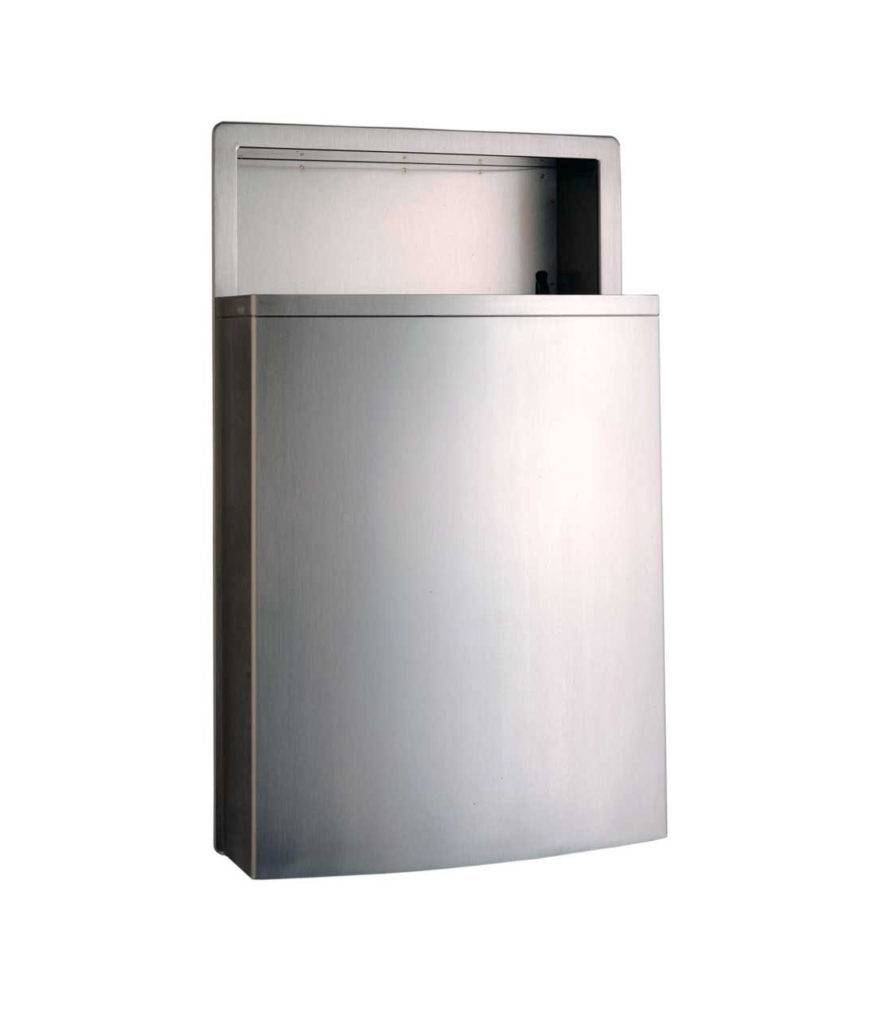

Recessed Waste Receptacle with LinerMate B-43644

Verified by manufacturer 10 months ago

Bobrick Washroom Equipment Ltd

48.3 L capacity, stainless steel semi-recessed mounted bin.

Jump to:
+44 (0)20 8366 1771 Website

Application

Recessed mounted for washroom use

Description

Features and benefits:

  • Satin-finish stainless steel.
  • Removable front panel for easy cleaning.
  • Capacity: 12.8 gal. (48.3 L).

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

705 mm

Width

440 mm

Height

195 mm

Warranty description

One year

Guidance for specification option:

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase.

Uniclass

Pr_40_50_07_96 Waste binsPrimary

CAWS

N13/474 Waste bins

Specification data - Waste bins

Form

Recessed mounted.

Materials

Stainless steel.

Finish and colour

Satin polished.

Size

705 x 440 x 195 mm

Guidance for specification option:

Rough wall opening 665 x 405 x 100 mm. Bin protrudes 125 mm from face of wall.

Sustainability data

Country of material origin

Canada

Recyclability

-

Manufacturer guidance

Metals widely recycled.
