Rectangular Gulley Vent - CGV-023

Verified by manufacturer 4 months ago

Cordek Ltd

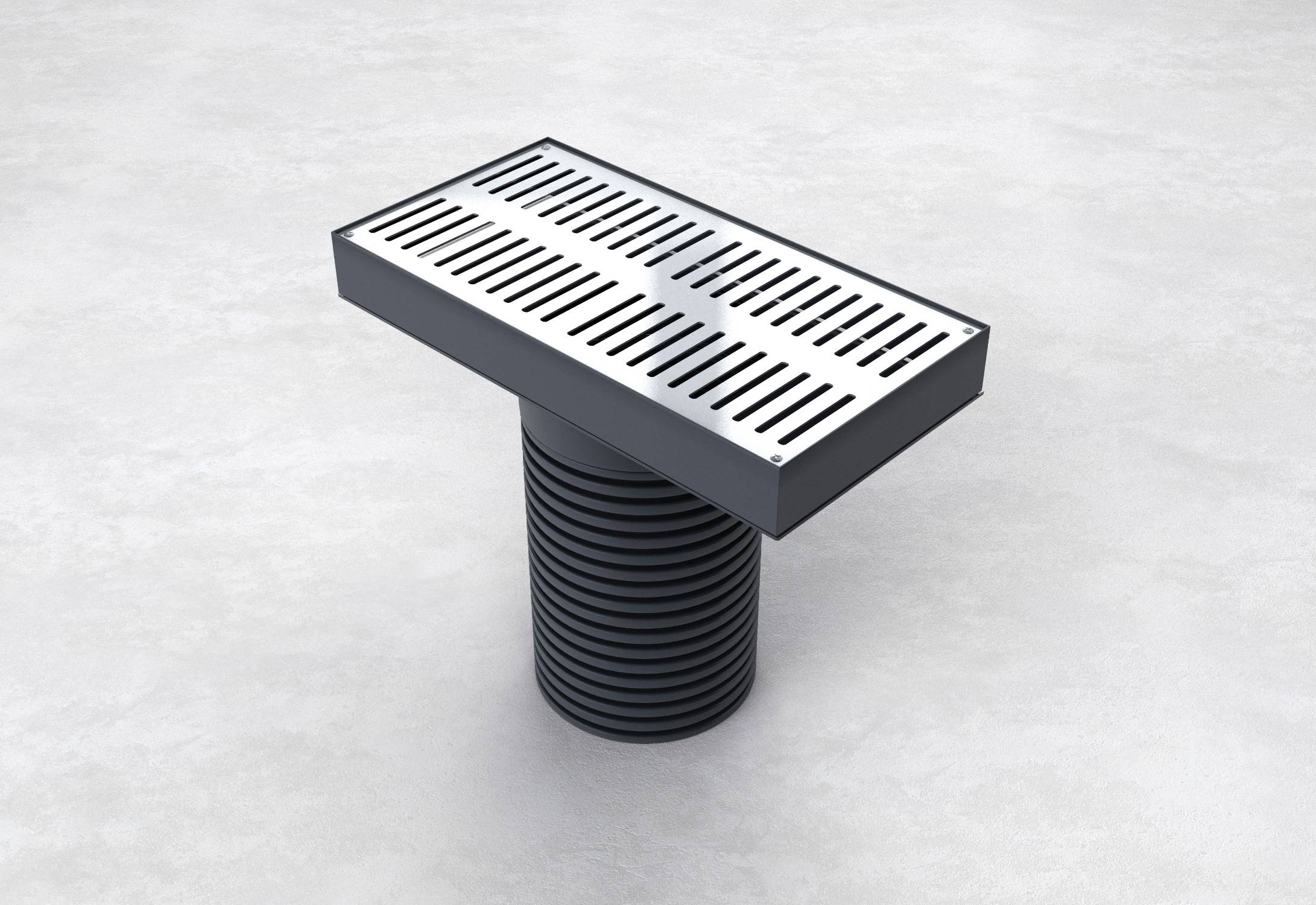

Gulley vent with stainless steel perforated lid.

Jump to:
BOS
+44 (0)1403 799600 Website

Application

For application from beneath a building, to the external atmosphere.

Description

A range of ground level vent boxes designed to provide a practical and aesthetic method of venting ground gases from beneath a building, to the external atmosphere. The vent boxes are designed to be connected to one of the Cordek passive gas venting systems and installed within the external landscaping. The use of vent boxes is recommended where the use of alternative vent options is precluded due to the type of external wall construction i.e. cladding, glazed façades.


Features and benefits:

  • Various different vent box dimensions and geometries.
  • Range of lid types, manufactured from either stainless or galvanized steel.
  • Vent box lids available with either perforations or slots to suit project requirements and venting design.
  • Supported by full range of accessories to provide robust connection to Cordek venting system.
  • Include base connection to stormwater collection, land drainage or soakaway system.

General information

Color

Black

Silver

Finish

Stainless steel

Material

High density polyethylene (HDPE)

Stainless steel

Shape

Rectangle

Length

410 mm

Width

210 mm

Height

690 mm

Uniclass

Pr_65_52_61_23 Discharge and ventilating stack terminationsPrimary

CAWS

D21/395 Ground-level vent outlets

Specification data - Discharge and ventilating stack terminations

Arrangement

Rectangular gulley vent.

Material

HDPE construction with a perforated, stainless steel lid.

Free airflow

6840 mm².

Open air space

6840 mm².

Gas inlet diameter

110 mm.

Water outlet diameter

175 mm.

Colour

Black HDPE and stainless steel lid.

Finishes

Galvanized.

Dimensions

210 x 410 mm.

Sustainability data

Country of product manufacture

United Kingdom

Material

High density polyethylene (HDPE)

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

5

IFC

IFC2X3

2

Literature

Cordek VOC & Ground Gas Brochure

Cordek VOC & Ground Gas Brochure

Cordek Ground Level Vent Box Data Sheet

Cordek Ground Level Vent Box Data Sheet
