RedSpot EPDM WRAS Rubber Bellow 10 Bar Rated
Verified by manufacturer 6 months ago
ERP 25.10
ERP 25.10
A WRAS approved rubber bellow.
Application
- Suitable for sanitary installations, cold and warm water, pool water, seawater and drinking water.
- Not suitable for all mineral oil products, cooling water with oily corrosion preventatives and oily compressor air.
Description
Elaflex RedSpot ERP is a WRAS-approved rubber bellow. It has a butyl (IIR)/ EPDM seamless liner with PA textile cord reinforcement and EPDM cover.
Features and benefits:
- High flexibility.
- Available from DN25 to DN150.
- A wide choice of configuration, flange and restraint options.
- Axial, lateral and angular range of movement.
General information
Color | Black Red |
Finish | Natural |
Material | EPDM Carbon steel Stainless steel |
Shape | Circle |
Length | 130 mm |
Width | 115 mm 140 mm 150 mm 165 mm 185 mm |
Height | 115 mm 140 mm 150 mm 165 mm 185 mm |
Warranty description | One year |
Uniclass | |
CAWS | S90/110 Mains cold water supply S90/110 Mains cold water supply |
Specification data - Axial expansion compensators
Material | |
Bellows | EPDM. |
Inner sleeve | Butyl (IIR)/ EPDM. |
Connections | Swivelling flanges, DIN PN 10, carbon steel, zinc plated. |
Bellow | 25 mm (1"). |
Length | 130 mm. |
Flange | 115 mm. |

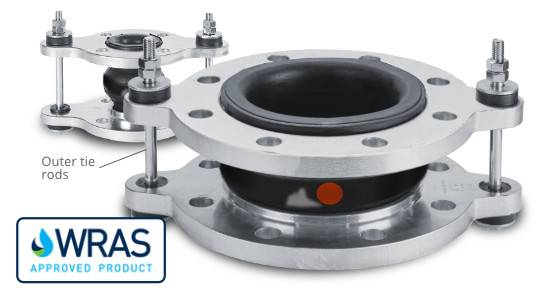

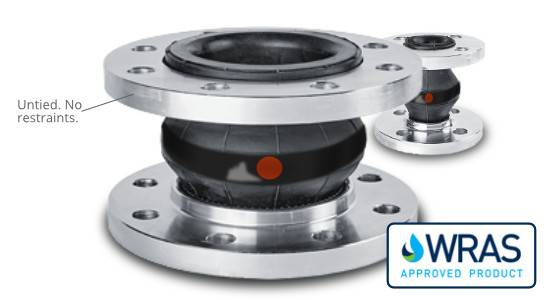

Edge restraints | Untied. Tied. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Literature

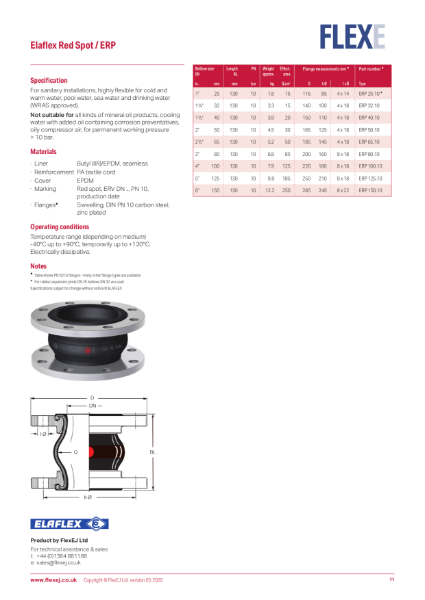

Product Data Sheet - Elaflex Red Spot / ERP
FlexEJ Full Company Product Catalogue
