Reeded Mortice Knobset (HUKP-0201-32) - Door knob

Verified by manufacturer 6 months ago

Hafele UK Ltd

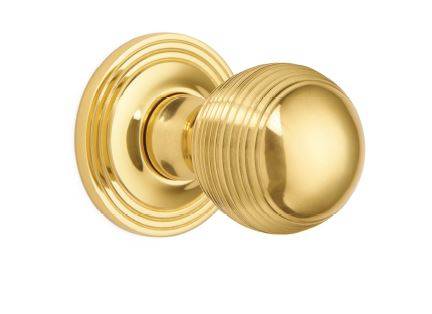

Brass reeded design mortice knobset

Jump to:
+44 (0)800 171 2907 Website

Application

Suitable for door knob applications.

Description

Set of solid brass reeded design ball mortice knobs.


Features and benefits:

  • Pair of operating mortice reeded design ball knobs.
  • 46 mm diameter knob and 57 mm diameter reeded concealed rose.
  • Two-part concealed fixing roses.
  • Unsprung (light sprung lock case recommended).


General information

Color

Finish

Polished

Guidance for specification option:

Brass and chrome.

Satin

Guidance for specification option:

Chrome, brass and nickel.

Material

Brass

Steel

Shape

Circle

Width

46 mm

Guidance for specification option:

Diameter.

Manufacturer guidance

  • 77 mm overall depth with 57 mm diameter rose.
  • 5 mm rose thickness.


Warranty description

Ten year

Uniclass

Pr_30_36_59_45 KnobsPrimary

CAWS

P21/40 Door knobs

P21/620 Door knobs

Product range

Door knobs

Specification data - Knobs

Classification grades (minimum)

-

Fire resistance

0.

Type of operation

U.

Size

46 mm.

Material and finish

Brass.

Mounting

Two-part concealed fixing roses.

Guidance for specification option:

  • Supplied with three wood screws per rose for face fixing.
  • Supplied with special 'boat' spindle secured by grub screw.


Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Literature

2. Project - Architectural Door Furniture

2. Project - Architectural Door Furniture
