ReForm A New Wave Carpet Tiles and Planks - Tufted Loop Carpet Tiles and Planks

Name: ReForm A New Wave Carpet Tiles and Planks - Tufted Loop Carpet Tiles and Planks
Brand: Ege Carpets Limited
SKU: 6z1MmuPwA5uTEHXHkWs4st

Verified by manufacturer 3 months ago

Figura (shapes)

Ege Carpets Limited

Third party certifications:

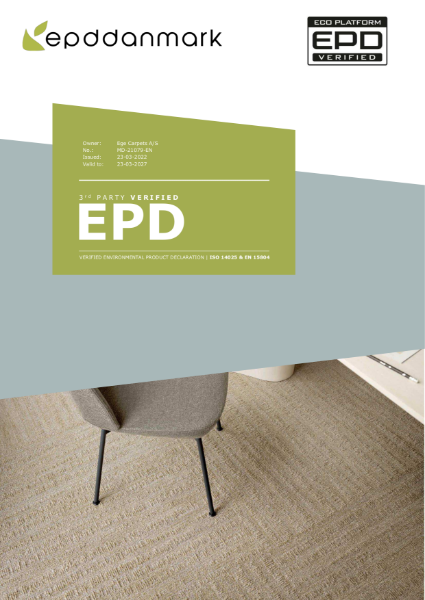

EPD
Certificate type

100% polyamide tufted loop pile carpet tiles and planks with patented and sustainable Ecotrust backing.

Jump to:

BOS

+44 (0) 20 7336 0992 Website

Application

Suitable for use in contemporary office environments.

Description

A New Wave interprets the untouched Danish West coast in three design stories about the dramatic landscape. Tiles and planks are available in one of these designs, the Grass motif.

A tactile and sculptural simplicity is the essence of the three-dimensional constructions reflecting this motif.

Features and benefits:

Millitron colouration.
Available as tiles, planks or other shapes (Figura).
Also available as wall-to-wall carpet or area rugs; consult manufacturer for details.
Cradle to Cradle Certified® Bronze and Indoor Air Comfort Gold certified.

Certifications:

The Ecotrust felt backings are produced from recycled water bottles. An innovative production technique turns bottles into a soft yet strong PET-felt material that’s long lasting and has great acoustic performance. Ege Carpets use yarns produced from among others used carpet, abandoned fishing nets and other industrial waste.

General information

Color	Beige Black Blue Brown Cream Green Grey Ivory Other Show more Manufacturer guidance Available in a range of colours, consult manufacturer for details.
Finish	Tufted
Material	Econyl polyamide Guidance for specification option: 100%.
Shape	Square Guidance for specification option: Tile. Rectangle Guidance for specification option: Plank. Other Guidance for specification option: Figura (shapes).
Length	480 mm 960 mm 240 mm
Width	480 mm 960 mm
Height	8.5 mm
Warranty description	Other Guidance for specification option: Contract certificate.

Uniclass	Pr_35_57_11_62 Pile carpet tilesPrimary
CAWS	M50/15 Carpet tiling M50/130 Carpet tiling

Specification data - Pile carpet tiles

Style	Tufted loop pile.
Material	100% polyamide. Guidance for specification option: Regenerated and regenerable PA.
Classification	-
Standard	To BS EN 1307.
Third-party certification	Cradle to Cradle Certified® Bronze. Indoor Air Comfort Gold (Group 3). Emissions dans l'air intérieur A+/A+ Green Label Plus Approved. CE marked.
Level of use class	To BS EN 1307, class 33.
Luxury rating class	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Recycled content	ISO 14021, approx. 58% For LEED, approx. 50%. Backing: 100%.
Size	Plank, 480 x 960 mm. Wave, 490 x 740 mm. Hexagon, 490 x 570 mm. Kite, 490 x 570 mm. Curve, 450 x 630 mm.
Colour and pattern	Reform A New Wave Grass Blue (87202648). Reform A New Wave Grass Green (87202548). Reform A New Wave Grass Rust (87202448). Reform A New Wave Grass Mole (87202348). Reform A New Wave Grass Beige (87202248). Reform A New Wave Grass Dark Grey (87202148). Reform A New Wave Grass Light Grey (87202048). Manufacturer guidance Millitron dyed.

Total weight	3050 g/m². Guidance for specification option: Approx.
Pile yarn weight	950 g/m².
Thickness	8.5 mm. Guidance for specification option: Approx. to ISO 1765.
Pile height above backing	4 mm. Guidance for specification option: Approx. to ISO 1766.
Pile density	0.175 g/cm³. Guidance for specification option: Approx. To ISO 8543.
Number of tufts (to ISO 1763)	213 000 per m². Guidance for specification option: Approx. to ISO 1763.
Gauge	1/12. Guidance for specification option: To ISO 2424.
Colour fastness	To light, ISO 105-B02: >5. To rubbing wet, ISO 105-X12: >3. To rubbing dry, ISO 105-X12: >3–4. To water patterned, ISO 105-E01: >4.
Backing	Ecotrust 350.
Reaction to fire	To EN 13501-1, Euroclass Bfl-s1.
Suitability for castor chairs	To EN 985, intensive use.
Stair suitability	To EN 1963, Yes.
Static control	Permanently antistatic.
Acoustic insulation	To ISO 717-2, 30 dB. Guidance for specification option: From impact noise.
Sound absorption	To ISO 354, 0.30 αW.
Thermal insulation	0.15 m²K/W. Guidance for specification option: Approx.

Sustainability data

Country of product manufacture	Denmark
Material	Econyl polyamide Guidance for specification option: 100%.
Manufacturing plant location	Industrivej Nord 25, 7400 Herning, Denmark
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	5.9 kg CO₂ eq/m² Guidance for specification option: Third party certification pending
Recyclability	Reuse and recyclability options available
Recycled content As defined in clause 7.8 of BS EN ISO 14021	58 %
Expected Life	Ten year

Third party certifications

MD-21079-EN

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
IFC	-	1
Revit	-	1

Third party certifications

EPD

MD-21079-EN
