Resan® Wall Shower

Verified by manufacturer 3 months ago

Thomas Dudley

Wall mounted shower head.

Jump to:
+44 (0)121 557 5411 Website

Application

Suitable for fixed use with walls up to 230 mm thick in washroom applications.

Description

Vandal resistant anti-ligature wall mounted shower head.


Features and benefits:

  • Anti-ligature design.
  • Scale-resistant.
  • Automatic flow regulation.
  • Adjustable spray nozzle with locking feature.
  • Concealed fixings.
  • Systematically drains after use (no water retention or impurity deposits).
  • WRAS approved product.
  • Ten year warranty.

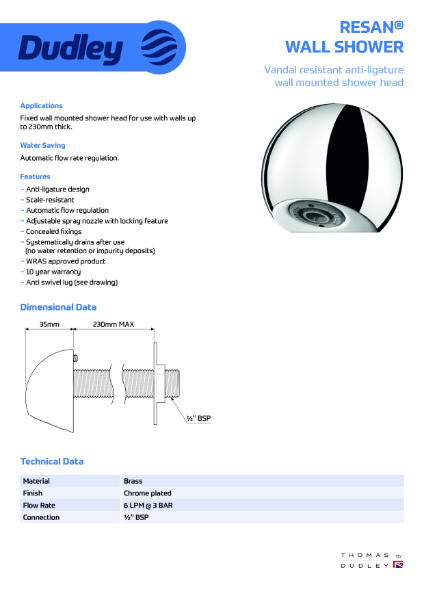

  • Anti swivel lug (see drawing).

General information

Color

Silver

Finish

Chrome

Material

Brass

Shape

Other

Length

61 mm

Width

35 mm

Height

61 mm

Warranty description

One year

Uniclass

Pr_40_20_87_76 Shower headsPrimary

CAWS

N13/45 Wet room showers

N13/377 Wet room showers

N13/40 Shower units

N13/41 Shower heads

N13/375 Shower units

Specification data - Shower heads

Approvals

Water Regulations Approval Scheme (WRAS)-approved.

Form

Single function fixed head.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Size

61 x 61 x 35 mm.

Guidance for specification option:

Length x height x depth.

Integral accessories

Concealed fixings.

Flowrate

6 L/min at 3 bar.

Connection

½” BSP.

Sustainability data

Contains Red List materials

No

Country of material origin

France

Material

Brass

Recyclability

0

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

BIM objects

Platform Compatible Version
IFC
-

1
