Residential Door - Aluminium Door
Verified by manufacturer over a year ago
Powder coated
Powder coated

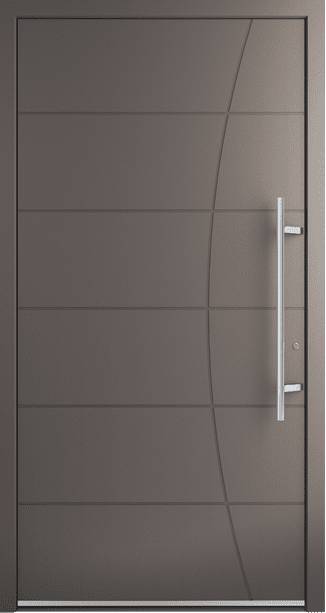

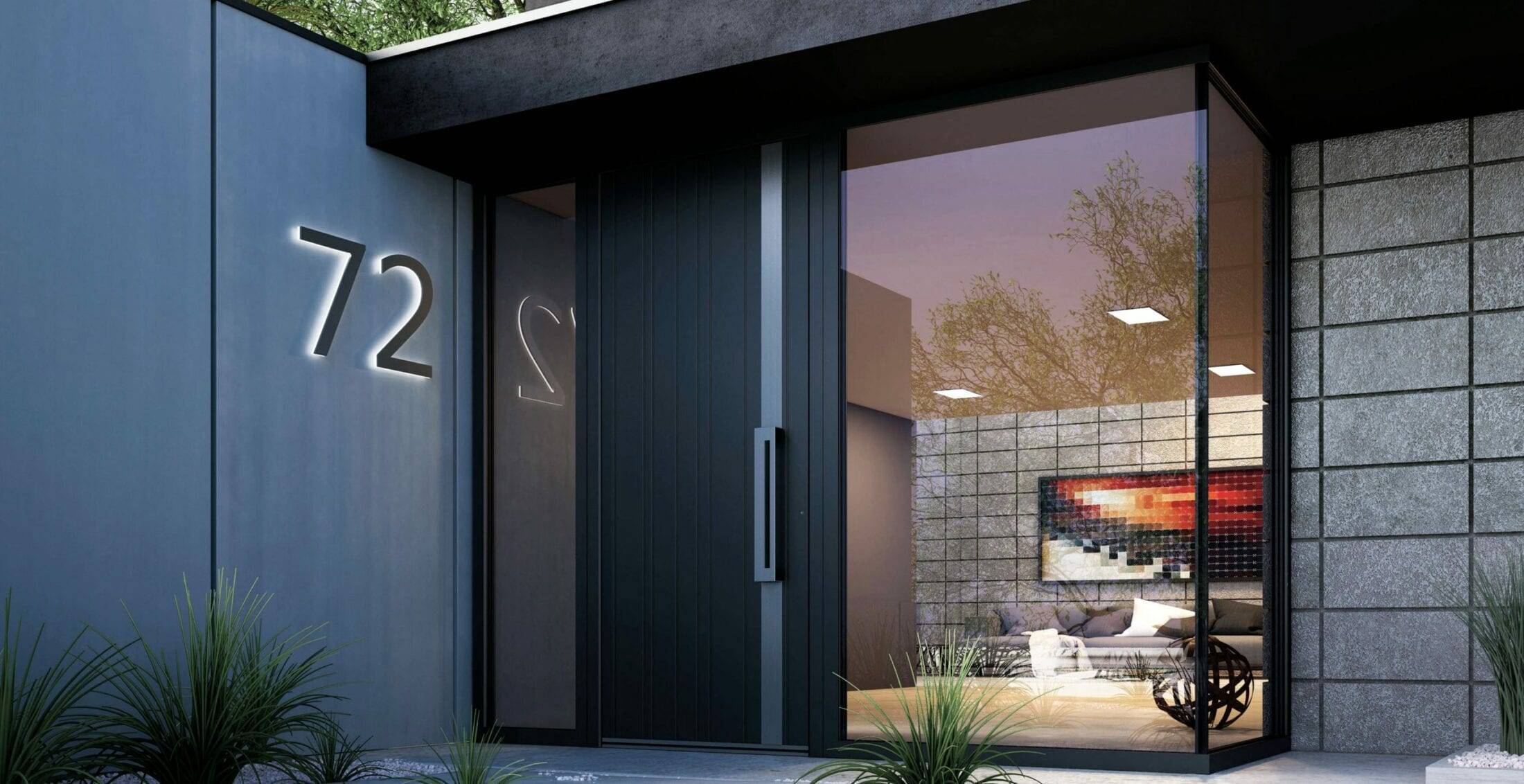

Aluminium residential door.
Application
Suitable for residential applications.
Description
Aluminium residential door.
Features and benefits:
- Available in a wide range of colours and finishes.
- Maximum glazing thickness 45 mm.
- Maximum width of panels 1200 mm.
- Maximum height of panels 3000 mm.
- Maximum weight of panels 120 kg.
- Thermally efficient: U-value from 1.1 W/m²K.
- Watertight design protects against the effects of weathering.
- Noise reduction: receive 38 dB of soundproofing.
Reference test values:
- Air permeability, to EN 12207: Class 4.
- Water tightness, to EN 12208: Class 9A.
- Wind resistance, to EN 12210: Class A3.
General information
Color | Black Blue Bronze Brown Copper Manufacturer guidanceStandard powder-coat colours are RAL 7016M Anthracite Grey Matt, RAL 9005M Jet Black Matt and RAL 9010G Pure White Gloss. |
Finish | Powder-coated Guidance for specification option: RAL finish and wood effect. Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceMaximum panel width 1200 mm. |
Height | Bespoke Manufacturer guidanceMaximum panel height 3000 mm. |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Specification data - Aluminium doorsets
Third-party certification | Certass approved. |
Configuration | Right hand hinged (external view); open in.Left hand hinged (external view), open in.Right hand hinged (external view); open out.Left hand hinged (external view), open out. |
Doorset size | Guidance for specification option: Insert requirements:
Maximum panel weight: 120 kg. |
Performance | |
Acoustic performance | 38 dB.Guidance for specification option: Consult manufacturer for details. |
Thermal | Guidance for specification option: U-value from 1.1 W/m²K; consult manufacturer for details based on other specification details, or insert requirements. |
Frame | |
Material | Aluminium. |
Threshold | Standard.Low. |
Perimeter seals or inserts | Manufacturer's standard. |
Finish | |
Coating | Powder-coated. |
Texture | Powder-coated, standard.Guidance for specification option: See standard colours for finishes, or consult manufacturer for details based on bespoke colour specified. Powder-coated, textured.Guidance for specification option: Consult manufacturer for details. |
Colour | RAL 7016M.Guidance for specification option: Anthracite grey, matt. RAL 9005M.Guidance for specification option: Black, matt. RAL 9010G.Guidance for specification option: Pure white, gloss. RAL, single colour.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Installation fasteners | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Frame accessories | Standard frame.Embed the lower frame in the floor.Guidance for specification option: Consult manufacturer for details. Frame around bottom of the door.Guidance for specification option: Consult manufacturer for details. |
Door leaf | |
Material | Aluminium. |
Glazing | |
Type | Not required.Required.Guidance for specification option: Insert requirements, maximum thickness 45 mm. |
Manifestation | Guidance for specification option: Insert requirements or omit. |
Finish | |
Coating | To match frame.Other.Guidance for specification option: Available in 150+ RAL finishes. Consult manufacturer and insert requirements. |
Texture | To match frame.Other.Guidance for specification option: Consult manufacturer and insert requirements. |
External colour | To match frame.Other.Guidance for specification option: Consult manufacturer and insert requirements. |
Internal colour | As External.Other.Guidance for specification option: Consult manufacturer and insert requirements. |
Film thickness (minimum) | Manufacturer's standard. |
Hardware | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Air permeability | To EN 12207, Class 4. Manufacturer guidanceReference test: 2701 x 2517 mm. 3 sash bifold using same system. Set-up: 330. |
Watertightness | To EN 12208, Class 9A. Manufacturer guidanceReference test: 2701 x 2517 mm. 3 sash bifold using same system. Set-up: 330. |
Wind resistance | To EN 12210, Class A3. Manufacturer guidanceReference test: 2701 x 2517 mm. 3 sash bifold using same system. Set-up: 330. |
Sub sill | 90 mm. 150 mm. 180 mm. 230 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Glass and aluminium 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
