Residual Current Breaker with Over-Current – RCBO – DSE201M – Single Pole
Verified by manufacturer 28 days ago
10 mA rated residual operating current
10 mA rated residual operating current

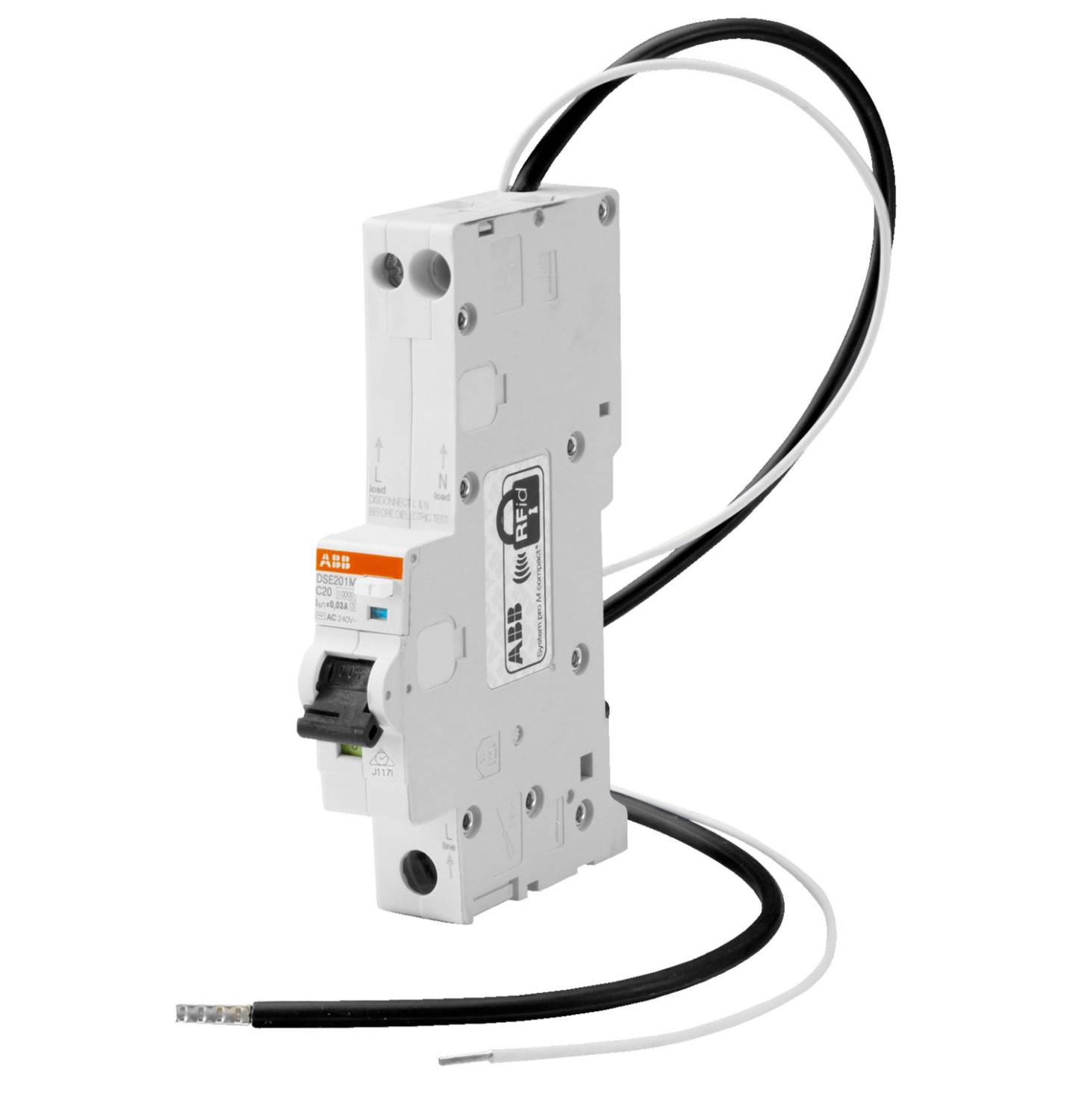

1P+N eRCBO in one module width with flying neutral lead, suitable for installation in chassis distribution boards.
Application
Suitable for commercial and industrial applications, providing a breaking capacity of 10 kA and a height of 115 mm.
Description
1P+N eRCBO in one module width with flying neutral lead, suitable for installation in chassis distribution boards. The presence of a functional earth cable (white) offers additional protection in case of loss of the neutral. The neutral is unswitched.
Provides protection against short-circuit currents, overloads and earth fault currents.
Suitable for commercial and industrial applications, providing a breaking capacity of 10 kA and a height of 115 mm.
Features and benefits:
- Easy to install: easy and fast wiring operations thanks to the two slots of different dimensions at the line side terminal (bottom): connection possible both with cable and busbars
- More control in smaller space: space optimization in the panel due to the reduced width and height of the product and straight flying leads instead of pigtail ones.
- Continuous operation and safety: quick and easy identification of contact status thanks to the CPI window as well as reduced downtime for maintenance thanks to the earth fault indicator.
- 10 kA, A and AC type.
- B and C tripping characteristics; rated currents from 6 to 50 A; sensitivity 10, 30, 100, 300 mA.
- Functional earth white cable is giving additional protection in case of loss of the neutral.
- Possibility to combine System pro M compact® accessories.
- Earth fault trip indicator window.
Also available as a 6 kA model, DSE201, for complete protection in residential and light commercial applications. Consult manufacturer for details.
General information
Color | Grey Guidance for specification option: RAL 7035. |
Finish | Smooth |
Shape | Rectangle |
Length | 69 mm |
Width | 18 mm |
Height | 115 mm |
Warranty description | One year |
Uniclass | |
CAWS | V91/315 Cable distribution cabinets V91/320 Distribution boards V90/319 Cable distribution cabinets V90/320 Distribution boards |
Specification data - Residual current circuit breakers with integral overcurrent protection
Standards | To BS EN 61009-1. |
Operating characteristic | A.AC. |
Tripping characteristic | Type B.Type C. |
Rated current (InA) | 6 A.10 A.16 A.20 A.25 A.32 A.40 A.50 A. |
Rated operational voltage (Ue) | 230–240 V a.c.Manufacturer guidanceMaximum operating voltage: 264 V. |
Rated impulse withstand voltage (Uimp) | 4 kV.Manufacturer guidanceTest voltage 6.2 kV at sea level, 5 kV at 2000 m. |
Rated frequency | 50 Hz.60 Hz. |
Number of poles | One + neutral. |
Rated short circuit capacity (Icn) | 10 kA.Guidance for specification option: Rated breaking capacity according to IEC 60947-2, for In = 50 A. Manufacturer guidance
|
Rated residual operating current | 10 mA. |
Features | Blue window fault indication. |
Mounting method | DIN rail.Guidance for specification option:
|
Accessories | None.Auxiliary contact.Auxiliary/ Signal contact.Shunt trip.Undervoltage release.Overvoltage release.Bottom fitting auxiliary contact. |
Housing | Insulation group II, RAL 7035. |
Overvoltage | Category III. |
Ingress protection | Housing: IP40. |
Technical characteristics, other | Insulation voltage: 500 V a.c. Manufacturer guidanceConsult manufacturer's literature for further details. |
Ambient temperature | -25 to +55°C (with daily average ≤35°C). Manufacturer guidanceStorage temperature: -40 to +70°C. |
