Resilic™ FRP Wash Trough

Verified by manufacturer 2 months ago

Dunhams Washroom Systems

A lightweight, hygienic wash trough manufactured from fibre-reinforced plastic. Particularly suited to areas where hygiene is paramount.

Jump to:
+44 (0)1603 424855 Website

Application

  • 🚸Education.
  • 🚻Public Toilets.
  • 🏥Healthcare.
  • 🏢Office.
  • 🏭Factory.
  • 🏅Sports & Leisure.
  • ⚔️ Military.
  • 🚓Emergency Services.
  • 🛍️Hospitality & Retail.


Description

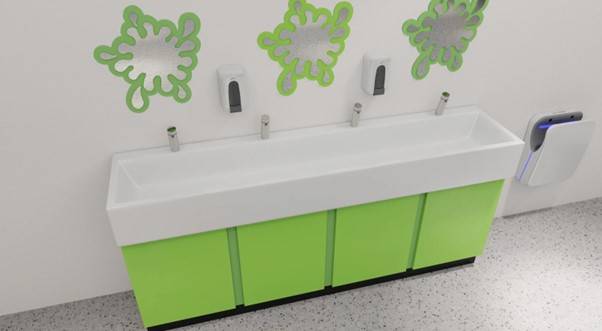

The Resilic™ FRP Wash Trough is a lightweight, hygienic and strong wash basin made from fibre-reinforced plastic (FRP), also known as fibreglass, composite plastic or GRP. The trough has Microban® antimicrobial protection for improved hygiene.


Microban® antimicrobial product protection is a built-in active ingredient that enables products to resist the growth of microbes such as bacteria, mould and mildew. Microban® protection helps products stay cleaner and fresher longer than products with untreated surfaces.


The one-piece design eliminates seams where bacteria can grow, making it more hygienic than other options. The trough can be used both indoors and outdoors, and its lightness and durability make it easier to install than stone or solid surface handwash troughs. Available in 1200 mm (two-person) or 1800 mm (three-person) lengths.


The pre-constructed vanity support frame is available with removable SGL or HPL panels.

General information

Color

White

Finish

Gloss

Material

Fiber-glass

High pressure laminate (HPL)

Solid grade laminate (SGL)

Shape

Rectangle

Length

1200 mm

1800 mm

Width

400 mm

Height

Bespoke

Manufacturer guidance

200 mm apron front fascia.

Warranty description

Five year

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N10/145 Vanity and washroom furniture

Specification data - Wash troughs

Form

Wall-mounted.

Mounted to sub-frame.

Stations

Two.

Three.

Materials

-

Body

Fibre reinforced plastic (FRP) with Microban® antimicrobial protection.

Finish and colour

Gloss white.

Size

1200 x 400 mm.

Guidance for specification option:

Two person.

1800 x 400 mm.

Guidance for specification option:

Three person.

Manufacturer guidance

Suggested vanity bed heights:

  • Key Stage 1 = 600 mm (front apron reduced to 200 mm).
  • Key Stage 2 = 675 mm.
  • Key Stage 3 = 750 mm.
  • Key Stage 4 to Adult = 800 mm or 850 mm.

Water supply, overflow and waste holes

-

Water supply

Guidance for specification option:

Insert taphole requirements. Compatible with wall-mounted or deck-mounted taps.

Overflow

None.

Waste

Single waste outlet.

Carcass or frame

Factory-constructed birch ply sub-frame with integral factory laminated plinth.

Guidance for specification option:

Pre-constructed vanity sub-frame with removable SGL/ HPL access panels.

Panels

Solid grade laminate (SGL) with decorative face each side. 13 mm nominal thickness. Radiused and polished edges.

Moisture resistant particleboard, E1 Grade, faced each side with 0.8 mm high pressure laminate (HPL). 2 mm matching impact resistant ABS edges. 19 mm nominal thickness.

Manufacturer guidance

Panels pre-fitted to sub-frame with concealed Keku clips. Hinged and lockable access panels also available.

Flashgaps

Factory bonded 0.8 mm high pressure laminate (HPL).

Joints

Nominal 50 mm wide flashgap between each panel section.

Colour/ Finish

Guidance for specification option:

From the Dunhams Colour Selector, insert requirements.

Fasteners

Angle brackets, screws and plugs for fixing sub-frame to floor and vanity top to sub-frame and back wall. Supplied with full length wall baton for trough support.

Sustainability data

Country of product manufacture

United Kingdom

Literature

Resilic™ FRP Washtrough

Resilic™ FRP Washtrough

Similar products from Dunhams Washroom Systems

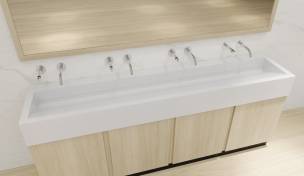

Sanivé® Flow Solid Surface Wash Trough
