Resopal® Collection Doors

Verified by manufacturer 6 months ago

Resopal

Decorative high-pressure laminate (HPL) doors.

Jump to:
+44 (0)1388 770113 Website

Description

Decorative high-pressure laminate (HPL) doors, in accordance with EN 438 and ISO 4586.


The sheets consist of layers of cellulose fibrous material (normally paper), impregnated with thermosetting resins and bonded together in a high-pressure process. The process, defined as a simultaneous application of heat (≥120°C) and high specific pressure (≥5 Mpa), provides flowing and subsequent curing of the thermosetting resins to obtain a homogenous non-porous material (≥1.4 g/cm³) with the required surface finish.


The formaldehyde emission level is far below the limit for wood-based materials. Due to their very low permeability, RESOPAL®-HPL bonded to wood-based substrates act as a barrier against possible formaldehyde emissions coming from the substrates.


There is no migration affecting foodstuffs and, consequently, the laminates are approved for contact with foodstuffs. The non-porous surface and edges are easy to disinfect with hot water, steam and all types of disinfectants used in hospitals and other commercial facilities.


The decorative surfaces are resistant to common household solvents and chemicals. They do not suffer from corrosion and oxidation, and they do not need any further surface protection (lacquers or paints).


Laminates are difficult to ignite and have properties that retard spread of flame, thus prolonging evacuation time. Due to incomplete burning, as with many organic materials, hazardous substances are to be found in the smoke. However, HPL is capable of meeting the best performance for organic surfacing materials specified in the French standard NFF 16101 (at least class F2 for smoke density and toxicity). HPL is not classified as a hazardous substance.


TECOLINE F melamine edge banding is available separately to coordinate colours and all decors from the Resopal DOORS collection. Unicolour and printed decors to match wood, stone or fantasy decors are available in small quantities, optionally with hot melt adhesive coating.


Technical characteristics:

  • Calorific value: 18–20 MJ/kg.
  • Heavy metals: Does not contain toxic compounds of antimony, or heavy metals barium, cadmium, chromium III, chromium VI, lead, mercury and selenium.
  • Material incompatibility: Strong acids or alkaline solutions will stain the surface.
  • Ignition temperature: 400°C (approximately).
  • Electrostatic behaviour: Surface resistivity is between 10^9–10^12 ohms and a chargeability of V <2 kV according to CEI IEC 61340-4-1 (HPL is an antistatic material).
  • Does not contain Pentachlorophenol (PCP).

General information

Material

High pressure laminate (HPL)

Width

915 mm

1020 mm

1320 mm

1380 mm

Bespoke

Guidance for specification option:

Other sizes are available as special order.

Height

2180 mm

2600 mm

Bespoke

Guidance for specification option:

Other sizes are available as special order.

Uniclass

Pr_30_59_23_16 Composite door leavesPrimary

CAWS

L20/280 Doors

L20/45 Doors

Specification data - Composite door leaves

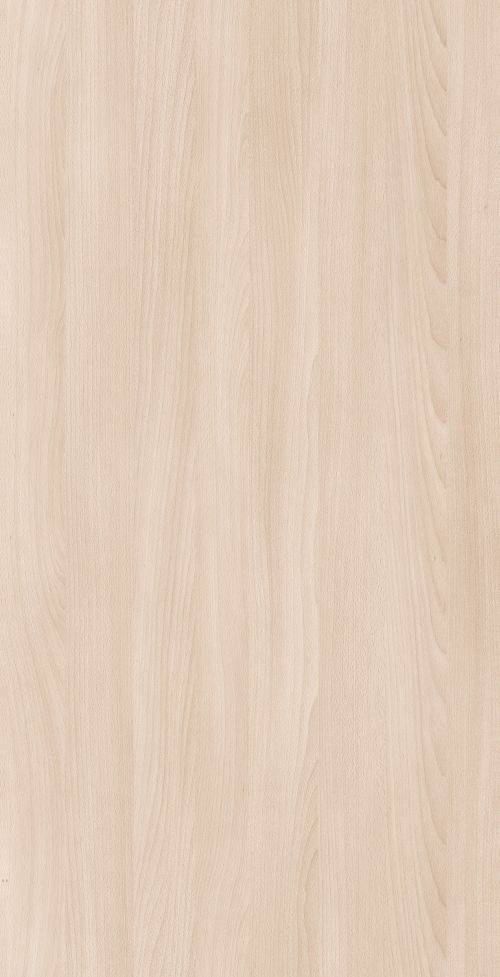

Finish and colour

-

External

-

Manufacturer guidance

An extensive range of finishes and textures is available; consult technical literature for detail and insert requirements.

Internal

-

Manufacturer guidance

An extensive range of finishes and textures is available; consult technical literature for detail and insert requirements.

Solubility in water

Insoluble in water, oil, methanol, diethyl ether, n-octanol and acetone.

Melting point

Does not melt.

Formaldehyde emissions

<0.4 mg/h/m² (tested according to EN 717-2), <0.05 ppm (tested according to the WKI chamber method).

Abrasion resistance

3 (to EN 438).

Impact resistance

4/3 (to EN 438).

Scratch resistance

4/3/2 (to EN 438).

Lightfastness

4-5 (to EN 438).

ThermalConductivity

0.3 W/m·K.

Dimensions

0.8 x 915 x 2180 mm.

0.8 x 1020 x 2180 mm.

0.8 x 1320 x 2180 mm.

0.8 x 1380 x 2600 mm.

Bespoke.

Guidance for specification option:

Other sizes are available as special order.
