Revolution 100 DG Elite Aero Sliding Door - Sliding Door and Partition Sets

Name: Revolution 100 DG Elite Aero Sliding Door - Sliding Door and Partition Sets
Brand: Optima
SKU: muV3FscaUNkbUJN1dh9MAu

Verified by manufacturer 6 months ago

Third party certifications:

12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.

Jump to:

Application

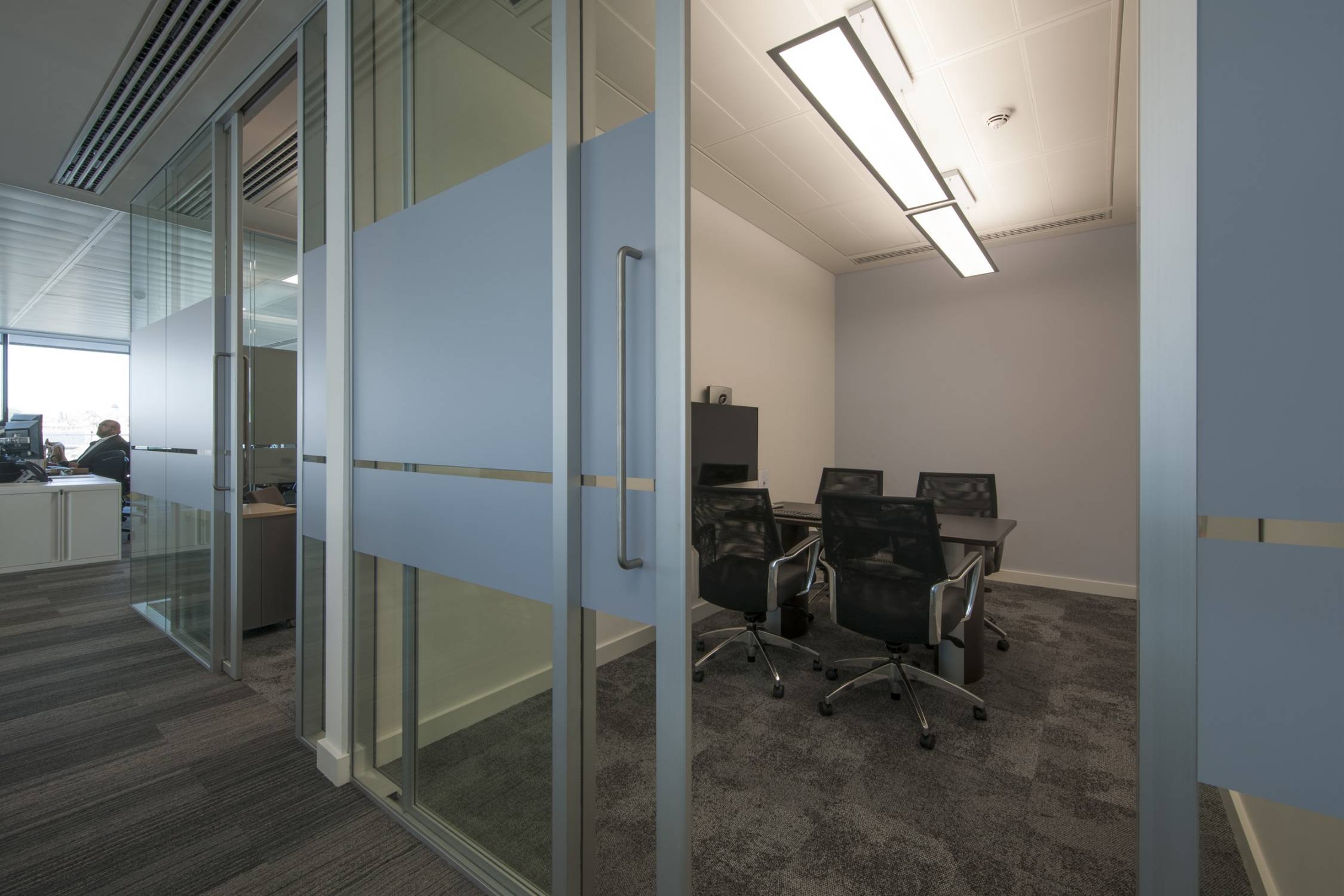

Ideal for smaller areas where space is restricted because the door slides between the partition glazing.

12 mm toughened glass, in a double glazed Revolution 100 screen with two layers of 12.8 mm thick acoustic laminated glass.

Features and benefits:

Elegant Elite Aero pocket sliding door achieves an impressive 39 dB (Rw) acoustic performance.
Can incorporate a cylinder hook bolt lock and soft close/ open function if required.

Color	White Silver Other Black
Finish	Anodized Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_30_20_77 Sliding doorset systemsPrimary
CAWS	L20/60 Doors L20/520 Sliding doors

Doorset	-
Type	Pocket door.
Glazing	12 mm glass.
Hardware	Guidance for specification option: Insert requirements; contact manufacturer for more information.

Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Size	Guidance for specification option: Available up to 3000 mm in height.
Locking	Dead lock. Latch. Sash lock.
AcousticRating	39 dB. Guidance for specification option: (in conjunction with 2 x 12.8 mm acoustic laminate double-glazed partition). Manufacturer guidance (Rw, maximum):
Frame	Guidance for specification option: Integral to partition system.
Performance	Internal.
Finish and colour	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal) Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal) Show more

Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	271 kg·CO₂e/kg Self declared Manufacturer guidance See Environmental Product Declaration literature for detailed LCA data.
