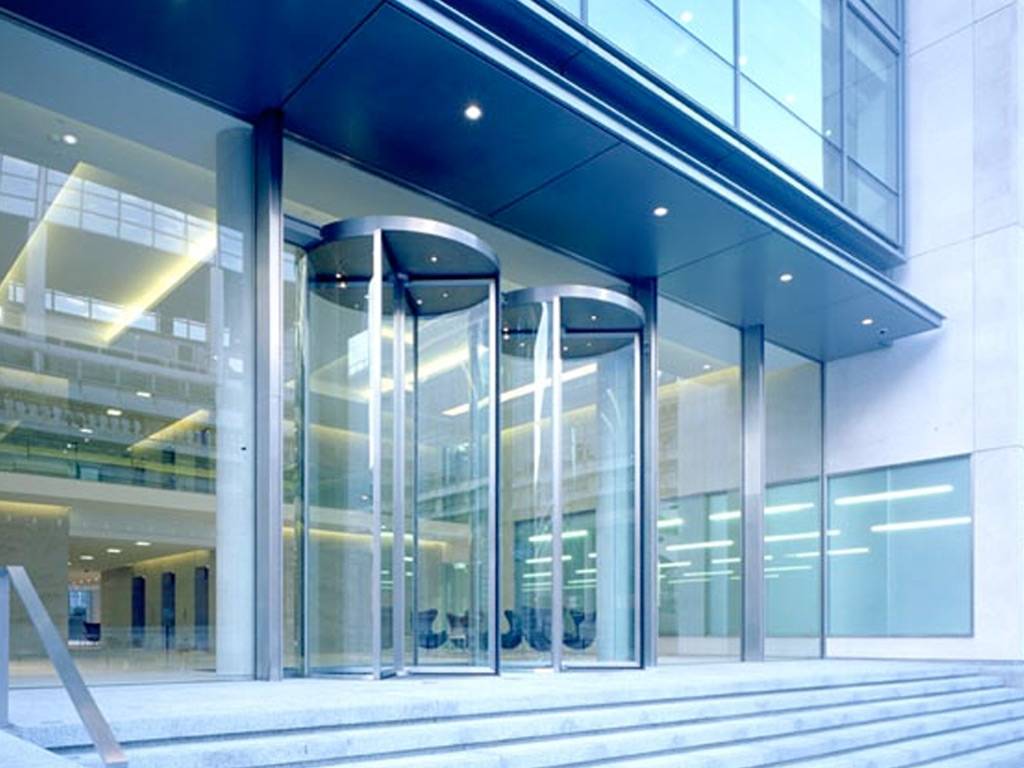

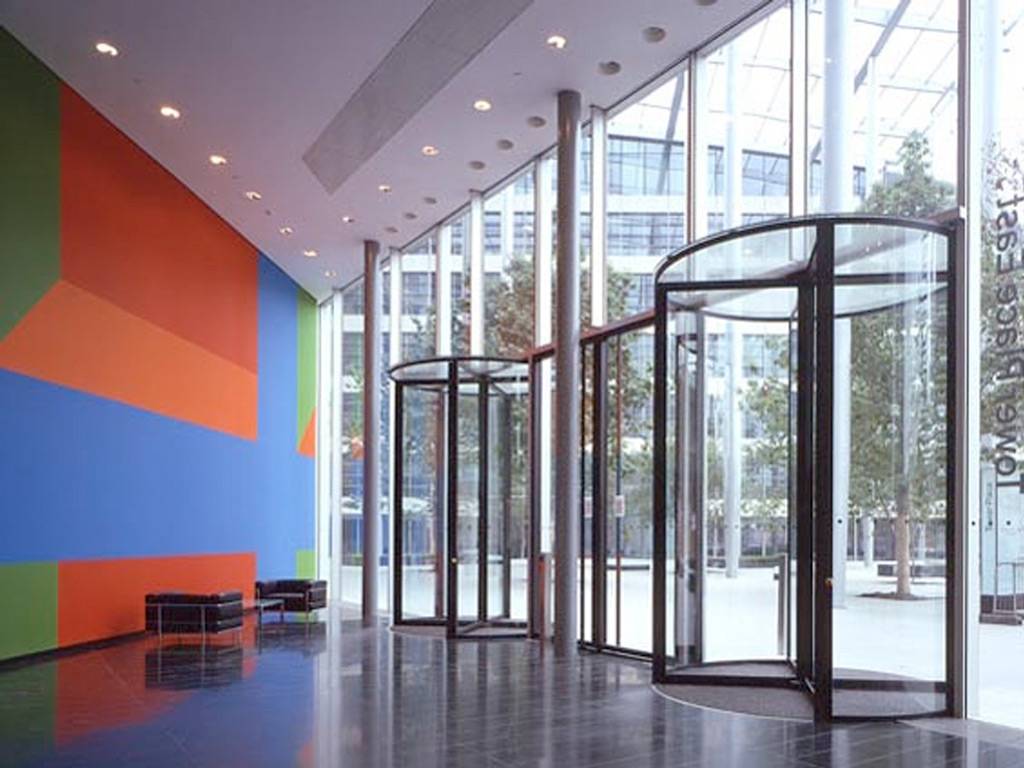

4-leaf Revolving Door
Assembly friendly, high-performance and safe all-glass revolving doors.
Revolving doors are used to provide public buildings with impressive entrances. One of the key advantages is that the three or four-leaf doors do not create any draughts in the foyer or lobby.
Thanks to minimum profile views and a glass roof, GGG all-glass revolving doors achieve maximum transparency without giving up the advantages of an open passage. Like the GRA, the GGG type is also available as a manual or fully automatic revolving door. The drive unit is located in the floor.
Features and benefits:
Color | Other |
Finish | Anodized Polished |
Material | Glass Stainless steel |
Shape | Other |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L20/500 Manual revolving doors L20/495 Automatic revolving doors L20/60 Doors |
Doorset | |
Operation | Manual revolving doorsets.Manual revolving doorsets with automatic positioning.Manual revolving doorsets with speed limiter.Semi-automatic revolving doorsets (push and go).Fully automatic revolving doorsets (radar motion detector). |
Hardware | Manufacturer guidanceConsult manufacturer for details. |
Breakout facility | Manufacturer guidanceConsult manufacturer for details and insert requirements or omit. |
System accessories | Not required.In-floor drive.Moveable leaf (summer position).Horizontal door handles.Vertical door handles.Manufacturer guidanceConsult manufacturer for details. |
Drum walls | Curved LSG, 10 mm. |
Door leaf | Toughened safety glass, 10 mm. |
Configuration | 4-leaf. |
InsideDiameter | 1800–3000 mm. Guidance for specification option:
|
Clearance height | 2100–3000 mm. Guidance for specification option: Consult manufacturer and insert requirements. |
Clearance width | Approx. 1220–2000 mm. |
FloorCovering | Not required. V2A bottom ring (recommended). Release-secure flange. Floor pan. Entrance mat. |
Lock | Not required. Outside-running, manual. Outside-running, automatic (in floor). Glass. Manufacturer guidanceNight locking sliding door. |
Locking | Not required. Shoot bolt lock on the leaf, manual. Electrical lock on the turnstile (fully automatic). Rod locking system in the night locking sliding door. Locking through the motor-driven brake system. |
Control | Not required. FWS function selection switch. Button for the disabled, both sides. Emergency-stop switch. RESET push-button. |
Roof | Glass roof. Manufacturer guidanceRoof construction. |
Warm-air curtain | Not required. Vertical air curtain. |
Applied finish | RAL colour. Guidance for specification option: Consult manufacturer and insert requirements. Anodized. Anodized stainless steel. Polished V2A stainless steel. Industry polished V2A stainless steel. |
Standards | Type-tested according to DIN 18650. |
