RhinoGuard® Shallow Mount 72/50 - Bollard
Verified by manufacturer over a year ago
RhinoGuard® 72/50 Protective Bollard Steel
RhinoGuard® 72/50 Protective Bollard Steel
Bollard capable of withstanding the impact of a 7.2 tonne two axle rigid N2 lorry travelling at 50 mph
Application
Suitable for sites facing foundation limitations, requiring an excavation depth of just 175 mm. Providing an effective shield for critical infrastructure, protecting both people and buildings.
Description
The RhinoGuard® 72/50 Shallow Mount Protective Bollard has proven levels of safety performance. Capable of withstanding the impact of a 7.2 tonne two axle rigid N2 lorry travelling at 50 mph, it provides an effective shield for critical infrastructure, protecting both people and buildings.

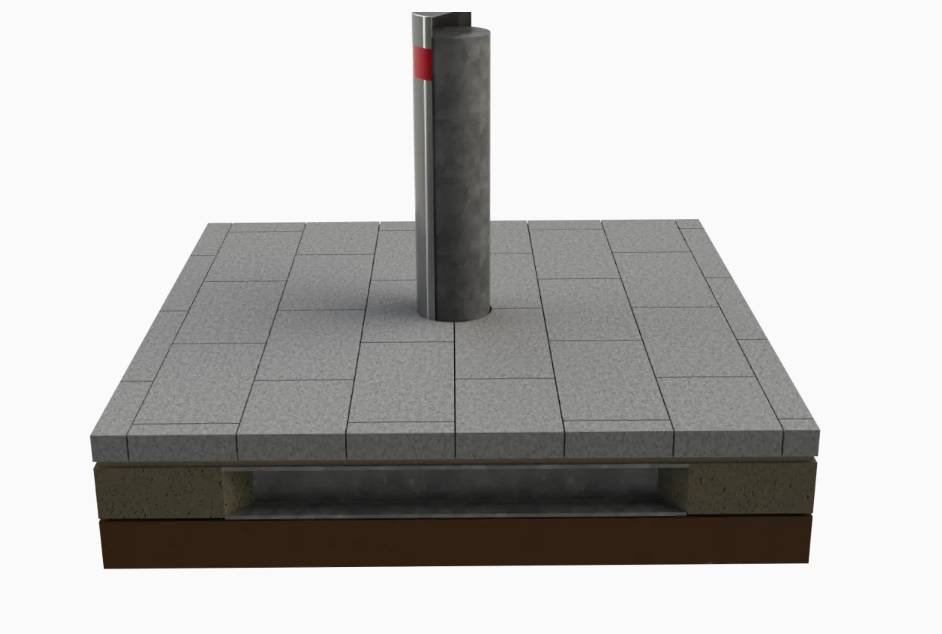

This robust bollard is quick to install and a suitable choice if facing foundation limitations, requiring an excavation depth of just 175 mm. At the core of the RhinoGuard® 72/50 Shallow Mount Protective Bollard is crash-tested technology tested to IWA-14.1 requirements, with a sleeve being placed over it to provide a more attractive finish in all locations where aesthetics and safety are key.
The sleeve is available in steel, stainless steel and Ferrocast.
This product is capable of withstanding a 7.2 tonne vehicle travelling at 50mph. The security classification is V/7200(N2A)/80/90:5.7.
Features and benefits:
- 175 mm excavation depth.
- Available in three finishes.
- 1000 mm height above ground.
- Successfully crash tested to the BSI PAS 68 standard.
General information
Color | Grey Black Blue Green Yellow |
Finish | Brushed Galvanized Powder-coated |
Material | Steel Stainless steel Polyurethane (PUR) |
Shape | Other |
Width | 244 mm 254 mm |
Height | 1000 mm |
Uniclass | |
CAWS | Q50/190 Bollards Q50/31 Bollards |
Specification data - Carbon steel bollards
Standard | In accordance with PAS 68.Guidance for specification option: 72/50. |
Dimensions | |
Size and profile | 244 mm. |
Height | 1000 mm. |
Length below ground | 275 mm. |
Post top | Flat. |
Post base | Flat. |
Finishes | |
Worked finish | Galvanized. |
Applied finish | Powder-coated. |
Colour | Jet Black RAL 9005.Grey Aluminum RAL 9007.White Aluminum RAL 9006.Gentian Blue RAL 5010.Moss Green 6005.Traffic Yellow RAL 1023.Traffic Red RAL 3020.Pure White RAL 9010. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Bollard Sleeve Topping | Steel. |
Size | 273 mm. Manufacturer guidanceSleeve diameter. |
Weight | 688 kg. Guidance for specification option:
|
Reflective tape | Not required. Required. |
Fixing method | Cast in foundation. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
