RIBline Ceiling Cladding System
Verified by manufacturer 4 months ago
ISO 9001 Quality Management
Certificate type
A ceiling cladding solution designed to blend aesthetic appeal, environmental responsibility, and high safety standards.
Application
Businesses, recreation and culture: Banks, shopping centres, cinemas and theatres, concert halls, museums, public swimming pools, gymnasiums, stadiums, sales areas, places of assembly.
Education: Library rooms, research rooms, school of higher education, schools, teaching, class and educational rooms.
Work: Common rooms, facilities for meetings, conventions and conferences, stage and studio rooms, office buildings, film and recording studios, data centres, broadcasting rooms, television studios, utility rooms, assembly rooms, administration buildings.
Healthcare: Pharmacies (production), clinics and hospitals, laboratories and research facilities, operating theatres, clean rooms (pharmacy and medical technology).
Transport: Airports, train stations.
Hotels and gastronomy: Restaurants, canteens, hotels and resorts.
Description
RIBline timber slats is a ceiling cladding system. The wooden appearance of veneer on the lamella adds texture to the space, while the gypsum core makes them fire retardant.
RIBline’s core is made from recycled gypsum that is 100% recyclable. The wooden veneer on the lamella creates a natural, warm finish. The core is FSC® certified and specifiers are able to decide on FSC® certified wood veneers within the project.
RIBline solos/ panels for unfinished ceilings provide tailor-made solutions to suit project requirements. Transitions and a hidden substructure ensures a high quality appearance in both residential and commercial properties.
Features and benefits:
- The lamella/ baffle ceiling system is available in versatile individual lamella or pre-assembled panels for easy installation.
- High variety of wooden veneers.
- 5–10 slats per panel.
- Stable in dimension and form.
- Meets IAC and AgBB standards for VOC and formaldehyde emissions.
- Reaction to fire up to class B-s1, d0.
General information
Color | White Black Manufacturer guidanceGypsum core colour. |
Finish | Veneered Guidance for specification option: Real wood veneer and engineered veneer. Laminated Guidance for specification option: HPL and CPL. Manufacturer guidanceVeneered Surfaces |
Material | Gypsum Timber Steel |
Shape | Rectangle Square |
Length | Bespoke Guidance for specification option:
|
Width | 22 mm 38 mm Bespoke Guidance for specification option: 500–800 mm panel width. |
Height | 38 mm 54 mm 55 mm 65 mm Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | K40/135 Board-suspended ceiling system K40/20 Board-suspended ceiling systems K13/120 Wood-veneered panel lining K13/120 Wood-veneered panel lining K13/160 Proprietary K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining |
Product range |
Specification data - Acoustic panel lining systems
Battens | Steel substructure. |
Acoustic insulation | Tissue.Guidance for specification option:
Fabric.Guidance for specification option:
Polyester felt.Guidance for specification option:
|
Panelling | |
Type | RIBline solo system.Guidance for specification option:
Customized sizes available upon request. Contact manufacturer for details. RIBline panel system.Guidance for specification option:
Interpolation among length, width and thickness of rib and width of rib is possible. Contact manufacturer for details. |
Surface material | Wood veneers. |
Surface finish | Real wood veneer.Engineered veneer.High pressure laminate (HPL).Continuous press laminate (CPL). |
Fasteners | Two hooks are fixed on each side of the slats and then hooked on the C-profile.Guidance for specification option: The C-profile is suspended by a Vernier (Nonius) hanger on both sides. |
Core | Recycled gypsum. |
Species | Oak. Guidance for specification option: Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details. Pine. Guidance for specification option: Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details. Ash. Guidance for specification option: Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details. Maple. Guidance for specification option: Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details. Spruce. Guidance for specification option: Natural wood veneer. Pigmented lacquers can be applied to change the colour appearance. Contact manufacturer for details. |
Reaction to fire | To BS EN 13501-1, Class B-s1, d0. |
Third-party certification | Not required. FSC® certified. Guidance for specification option: Contact manufacturer to determine which veneers are certified FSC® according to requirements. |
Slat length | Manufacturer guidance1000–2500 mm. Bespoke lengths can also be specified. Insert requirements. |
Panel dimensions | Manufacturer guidance1000–2500 x 500–800 mm (L x W). Bespoke sizes can also be specified. Insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Gypsum Timber Steel |
Manufacturing plant location | |
Recyclability | Upto 70% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % |
Expected Life | 25 year |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
RIBline timber slat ceiling system datasheet
Case studies

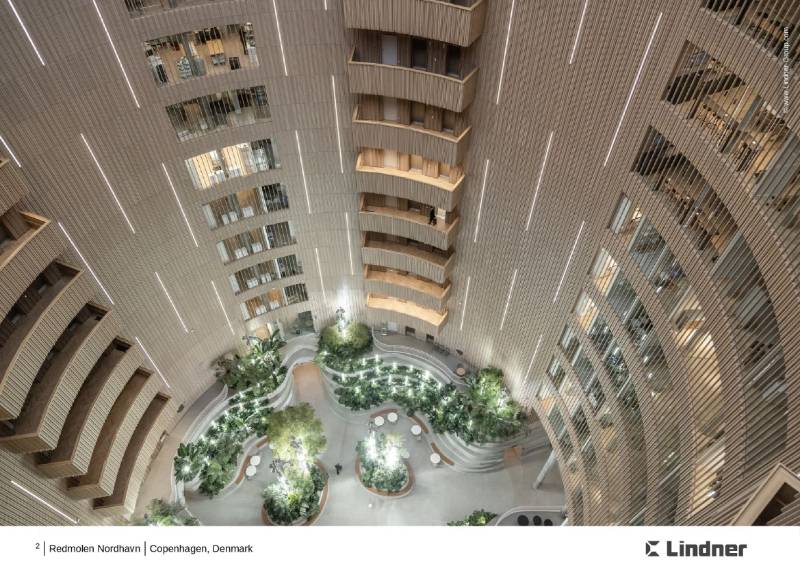

Redmolen Nordhavn - Partitions -> RIBline -> Ceilings -> Luminaires
