Verified by manufacturer 2 months ago
Standard F-DP900
BS EN 12206:2021
Certificate type
A hinged frameless shower door with inline panel. Shower enclosures suitable for hotels, resorts and residential applications.
Shower enclosure suitable for hotels, resorts and residential applications.
The designer’s first choice, timeless elegance equally at home in a contemporary setting, the Rio is ideal for any alcove. Alternatively, the Agave could be specified for an alcove with the door hinged from the panel.

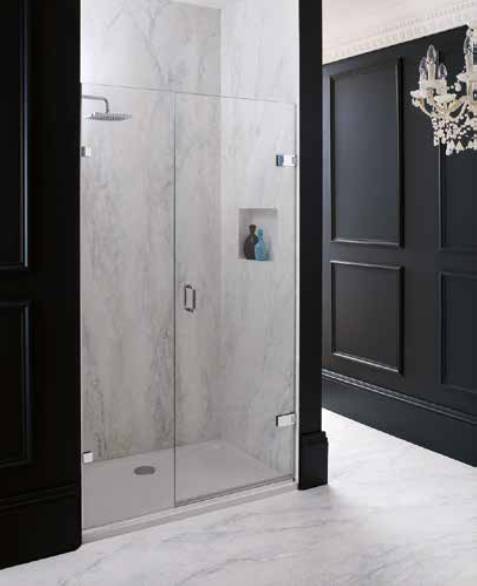

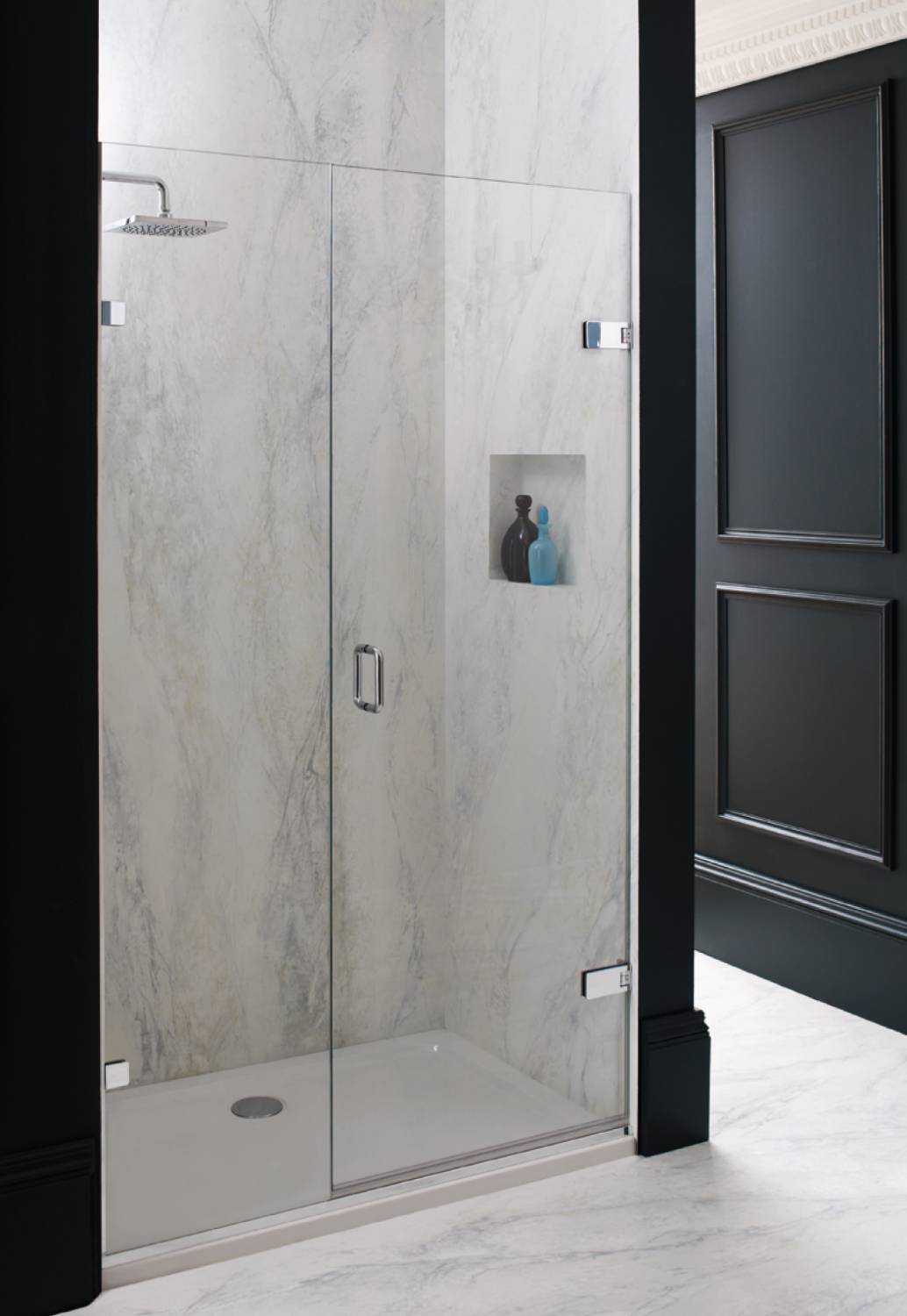

A hinged frameless shower door with inline panel manufactured from 10 mm toughened safety glass.
The fittings are available in a broad selection of colours and finishes, all of which have been tried and tested in the bathroom environment.
Features and benefits:
Color | Silver Gold White Black Bronze Manufacturer guidanceFittings. |
Finish | Polished Matt Manufacturer guidanceFittings. |
Material | Glass |
Shape | Rectangle |
Length | Bespoke |
Width | 900 mm 950 mm 1000 mm 1050 mm 1100 mm |
Height | 2000 mm 2400 mm Bespoke Guidance for specification option: Up to 2400 mm. |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/375 Shower units N13/40 Shower units |
Product range |
Standard | To BS EN 14428. |
Form | Frameless screen; between walls (hinged door, inline panel). |
Materials | |
Glazing | |
Glazing type | 10 mm toughened safety glass to BS EN 12150. |
Finish and colour | Clear. |
Dimensions | 900 mm.Manufacturer guidanceDoor size Widths 900–960 mm: 650 mm. Widths 1000–1600 mm: 700 mm. |
Integral accessories | Glass to wall hinges, glass to wall brackets, 24 mm channel to wall, underframe to base.Guidance for specification option: Doors over 700 mm wide will be supplied with three hinges. Enclosures with an inline panel over 1000 mm will be supplied with a support bar. |
Fittings | Polished Chrome. Matte Black. Matte White. Polished Nickel. Brushed Nickel. |
Handle | Short Round D handle. |
Size | 650 mm. |
Height | 2000 mm. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Fully Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 15 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
