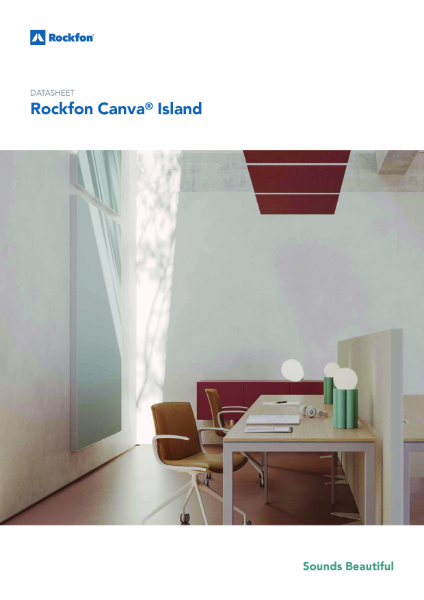

Rockfon Canva® Island - Stone Wool Ceiling Raft or Island

Name: Rockfon Canva® Island - Stone Wool Ceiling Raft or Island
Brand: Rockfon
SKU: a1Cei8NvNd5BLwvWRn6PTB

Verified by manufacturer 10 days ago

1200 x 1200 mm

Stone wool acoustic ceiling raft or island, available in a wide range of colours and offering an effective acoustic solution while allowing the soffit to remain exposed for a modern aesthetic.

Jump to:

+44 (0)208 2227457 Website

Application

Rockfon Canva Island is particularly suitable for spaces with an exposed soffit where acoustics and aesthetics are important.

Suitable applications include:

Education.
Healthcare.
Leisure.
Office.
Retail.

Description

Mineral wool acoustic ceiling raft, available in a wide range of colours and offering an effective acoustic solution while allowing the soffit to remain exposed for a modern aesthetic.

Features and benefits:

Size and appearance can be customized to suit the user's mood.
Detachable, washable and replaceable canvas.
Choose from Rockfon's 34 Colours of Wellbeing and white, or provide your own graphic layout for personalization.
Panels arrive fully assembled, so installation is fast and easy.
Offers an equivalent sound absorption of up to 5.73 m² per panel.
Rockfon Canva is made in partnership with acoustic design company, Akuart.

General information

Color	Beige Black Blue Brown Cream Green Grey Red White Yellow Show more
Finish	Textured Powder-coated
Material	Stone wool Aluminium
Shape	Rectangle Square
Length	1200 mm 1800 mm 2400 mm
Width	1200 mm
Height	61 mm

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form	Panel.
Application	Ceiling mounting.
Material	Mineral wool. Guidance for specification option: 40 mm stone wool absorber.
Acoustic performance	-
Purpose	Absorber.
Fire performance	-
Reaction to fire	Class B, s1, d0. Guidance for specification option: Based on EN 13501-1.
VOC emissions	To EN 13964 (EN 717-1): Class E1.
Dimensions	-
Size (length x width)	1200 x 1200 mm.
Thickness (overall)	61 mm.
Profile	Geometric profile.
Edges	Square.
Surface pattern	Texture weave pattern.
Finish	Printed.
Colour	Seaweed. Eucalyptus. Sage. Mint. Space. Storm. Azure. Fresh. Mustard. Sand. Stucco. Scarlet. Coral. Sandalwood. Seashell. Petal. Ebony. Earth. Cork. Chalk. Iron. Clay. Linen. Hemp. Anthracite. Gravel. Plaster. Moon. Mercury. Charcoal. Concrete. Zinc. Mastic. Stone. White. Custom graphic.

Unit weight	9.7 kg.
FrameMaterial	Aluminium.
Frame finish	Powder-coated matt.
Colour	White. Black.
Suspension	1500 mm. Manufacturer guidance Maximum suspension depth from soffit.
