Rockwall
Verified by manufacturer 1 month ago
1 m
1 m

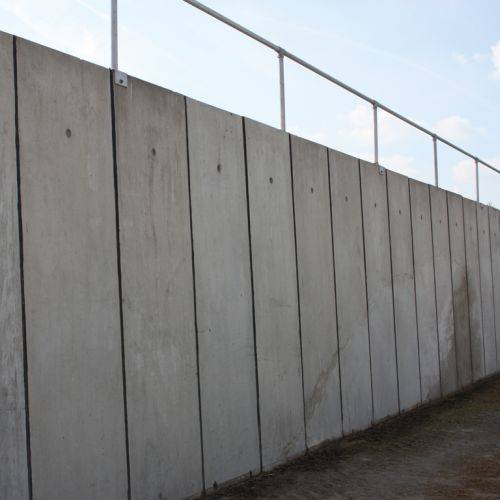

L-shaped, tapered retaining wall.
Application
Units can be used for above- or below-ground applications, or in perimeter or internal division situations. Suitable for:
- Agricultural industries.
- Recycling centres to divide waste and by-products.
- Commercial and industrial developments.
- Residential areas.
Description
L-shaped, tapered wall precast concrete retaining wall units.
Features and benefits:
- Economical, flexible and instant wall retaining system.
- Precast concrete walls allow less build and a reduced curing time.
- Weather-resistant.
- Cast-in option available with reinforcement protruding from toe to tie into in situ concrete slab, providing a level finish base, eliminating the requirement for fixings.
- Bolt-down option available when working with existing slabs or foundations.
- Hand trowel finish to vertical face; steel toe finish to toe side.
- Units can be loaded to one or both faces, with up to 15 kN/m² surcharge, subject to unit height.
- Weepholes and apertures available.
- Bespoke modifications are available to suit site-specific projects – consult manufacturer for information.
- Free detailing service available for specific project requirements – consult manufacturer for information.
- Manufactured to BS EN1992-1-1, BS EN 1997-1, BS8500-1 and BS EN206-1.
Applied with a hand trowel.
General information
Color | Grey |
Finish | Smooth |
Material | Concrete |
Shape | Manufacturer guidanceL-shaped. |
Width | 1000 mm |
Height | 1000 mm 1500 mm 2000 mm 2500 mm 3200 mm |
Uniclass | |
CAWS | D41/410 Precast reinforced concrete stem walls |
Product range |
Specification data - Modular reinforced concrete stem wall units
Standard | To BS EN 15258. |
Configuration | L shape. |
Dimensions | |
Height | 1000 mm. |
Width | 1000 mm. |
Finish | |
Exposed faces | Plain finish. |
Concealed faces | Plain finish. |
StrengthClass | C50. |
Fixing | Bolt in. Cast in. |
Design | As drawing. Guidance for specification option: Insert drawing reference number where applicable. As schedule. |
Loading | 1800 kg/m³. Guidance for specification option: Level fill capacity. |
Accessories | Guidance for specification option: Weepholes and apertures can be cast in to suit requirements. Consult manufacturer for information. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | 0.2 kg CO₂ eq/kg |
Declared unit | 0.19 kg CO₂ eq/kg Self-declared Lower emissions |
